YMMV4206FW3 03 – DOOR PARTS

YMMV4206FW3 03 – DOOR PARTS

Written by

in

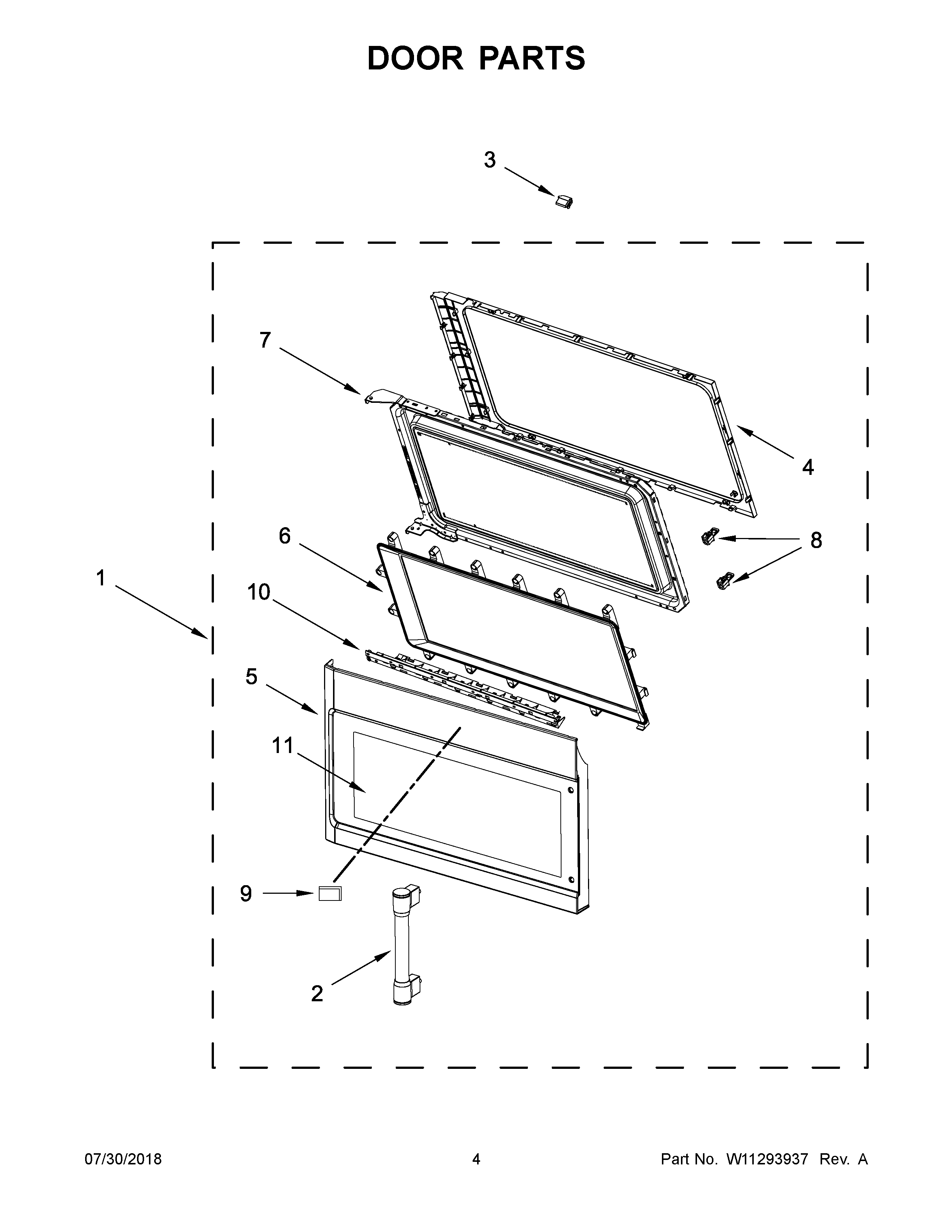

YMMV4206FW3 03 – DOOR PARTS

Products

PositionProduct
1DOOR, COMPLETE (WHITE)
1ADOOR, COMPLETE (BLACK)
1BDOOR, COMPLETE (STAINLESS)
2AHANDLE (BLACK)
2HANDLE (WHITE)
2BHANDLE (STAINLESS)
3STOPPER, DOOR
4FRAME, INNER
5ASSEMBLY, DOOR FRAME (WHITE)
5AASSEMBLY, DOOR FRAME (BLACK)
6PLATE, STEAM PROTECTION
7FOIL, DOOR
8MAY W10489272
9BADGE
10TRIM, DOOR (WHITE)
10ATRIM, DOOR (BLACK)
11ASSEMBLY, DOOR GLASS (WHITE)
11AASSEMBLY, DOOR GLASS (BLACK)
