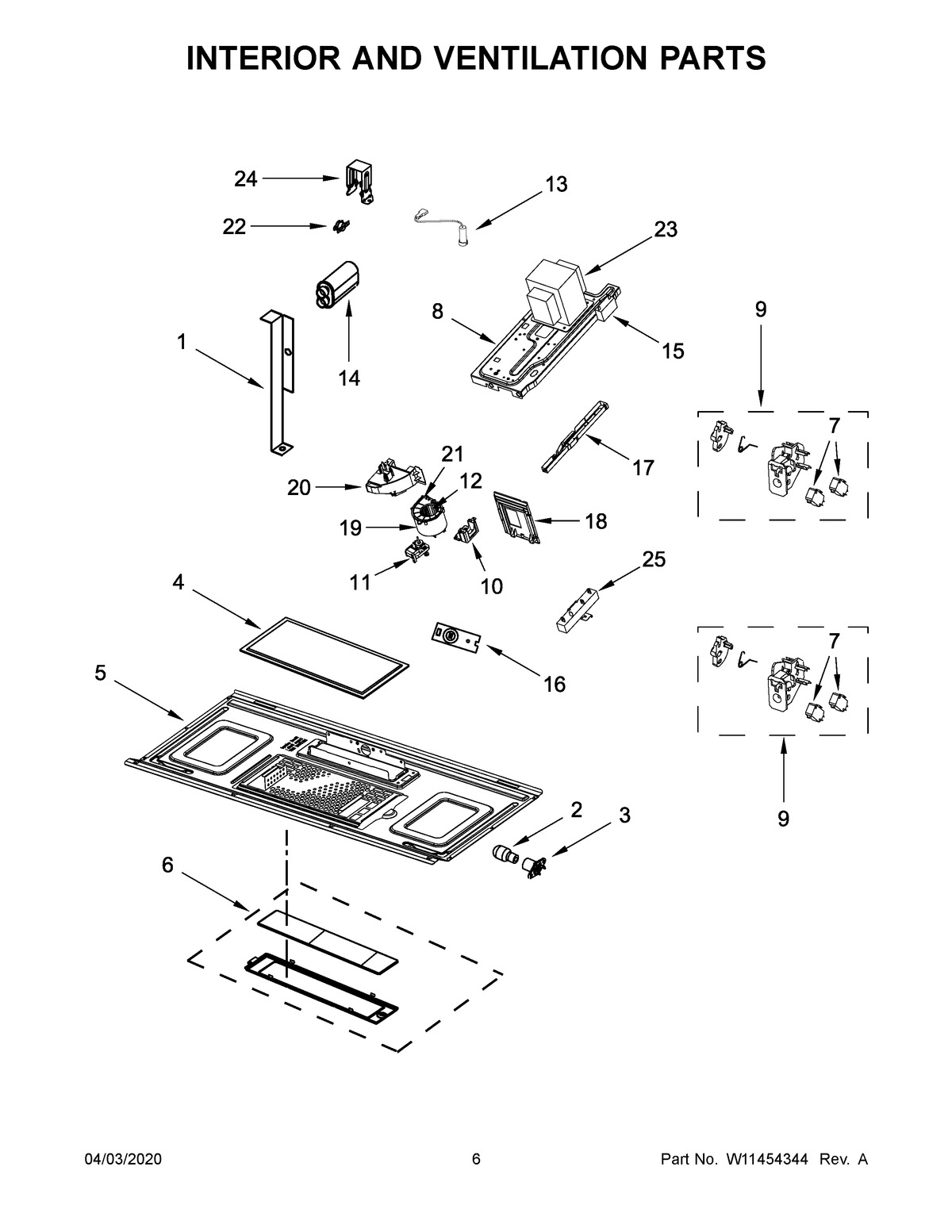

YMMV4206FZ5 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1BRACKET, TOP CAVITY
2MAY 8206232
3MAY W10210871
4MAY W10208631
5PLATE, BOTTOM
6ASSEMBLY, LAMP GLASS AND HOLDER
7LINER (NOT A SERVICEABLE PART)
8CHASSIS, COMPONENT
9ASSEMBLY, INTERLOCK (INCLUDES SWITCHES)
10MAY W10533480
11MOTOR, COOLING FAN
12MAY W10533503
13DIODE, HIGH VOLTAGE
14CAPACITOR, HIGH VOLTAGE
15MAY W10605897
16MAY W10536989
17MAY W10540718
18DEFLECTOR, AIR
19MAY W10533501
20AIR GUIDE, MAGNETRON
21MAY W10533502
22THERMOSTAT, CAVITY
23TRANSFORMER, HIGH VOLTAGE
24BRACKET, CAPACITOR
25RESISTOR, CEMENT
