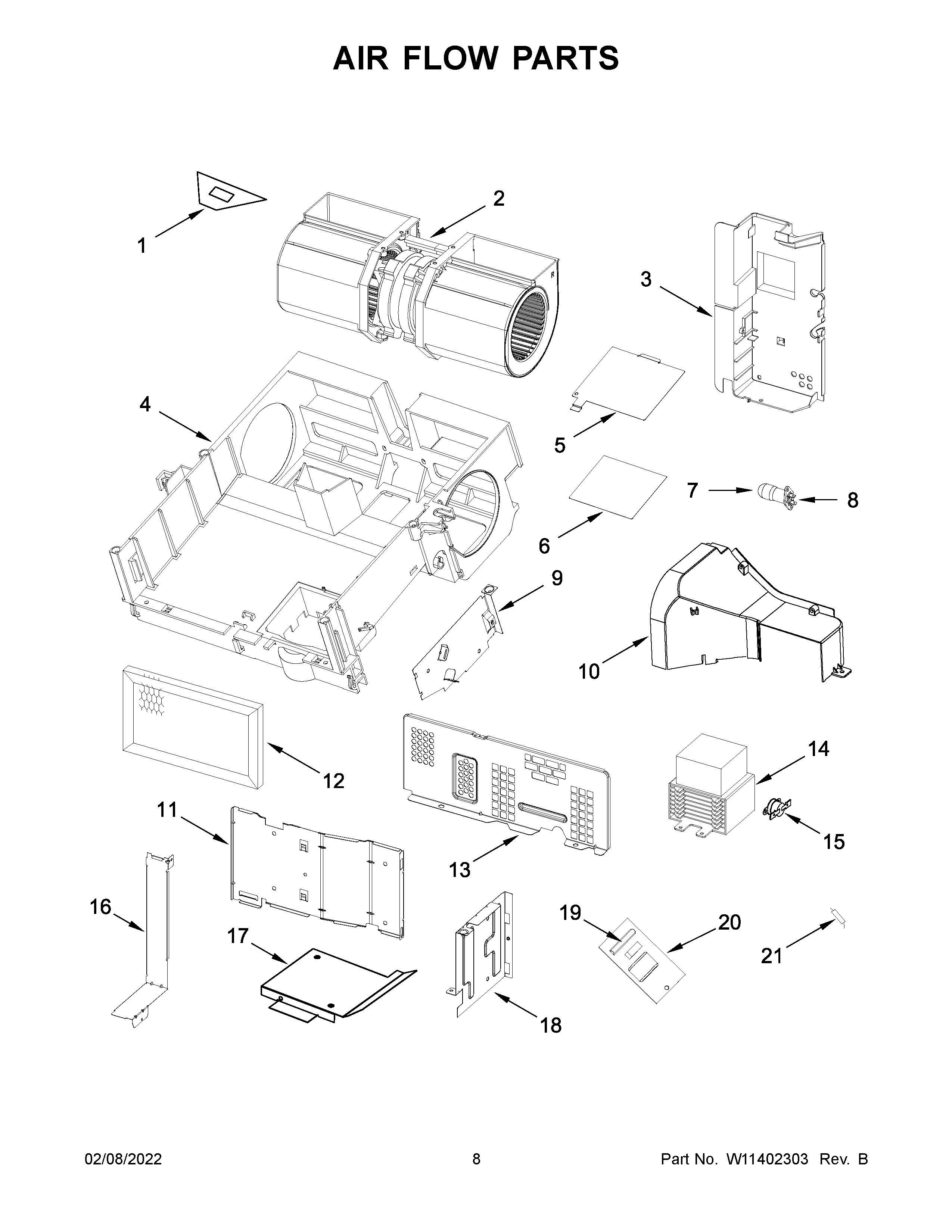

YMMV4207JK00 05 – AIR FLOW PARTS
Written by
in
YMMV4207JK00 05 – AIR FLOW PARTS
Products
Position
Product
1
W10810142 Whirlpool Relief Strain
2
W11442100 Whirlpool Microwave Fan Motor
3
AIR GUIDE, LOWER
4
BASEPLATE, AIR GUIDE
5
8206382 Whirlpool Microwave Light Cover
6
W11391720 Whirlpool Lamp Glass
7
8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
8
WPW10210878 Whirlpool Microwave LMP Housing
9
W11293488 Whirlpool Microwave Air Duct
10
DEFLECTOR, AIR
11
PLATE, AIR GUIDE SEALING
12
W10892387 Whirlpool Microwave Charcoal Filter
13
W10342991 Whirlpool Microwave Side Cover
14
W11391717 Whirlpool Microwave Magnetron
15
W11679669 Whirlpool Fix Thermostat
16
W10828038 Whirlpool Duct Cover
17
SUPPORT, SENSOR
18
GUIDE, AIR
19
FUSE-THRML
20
WPW10531156 Whirlpool Microwave Filter
21
W11256462 Whirlpool Microwave Diode
←
