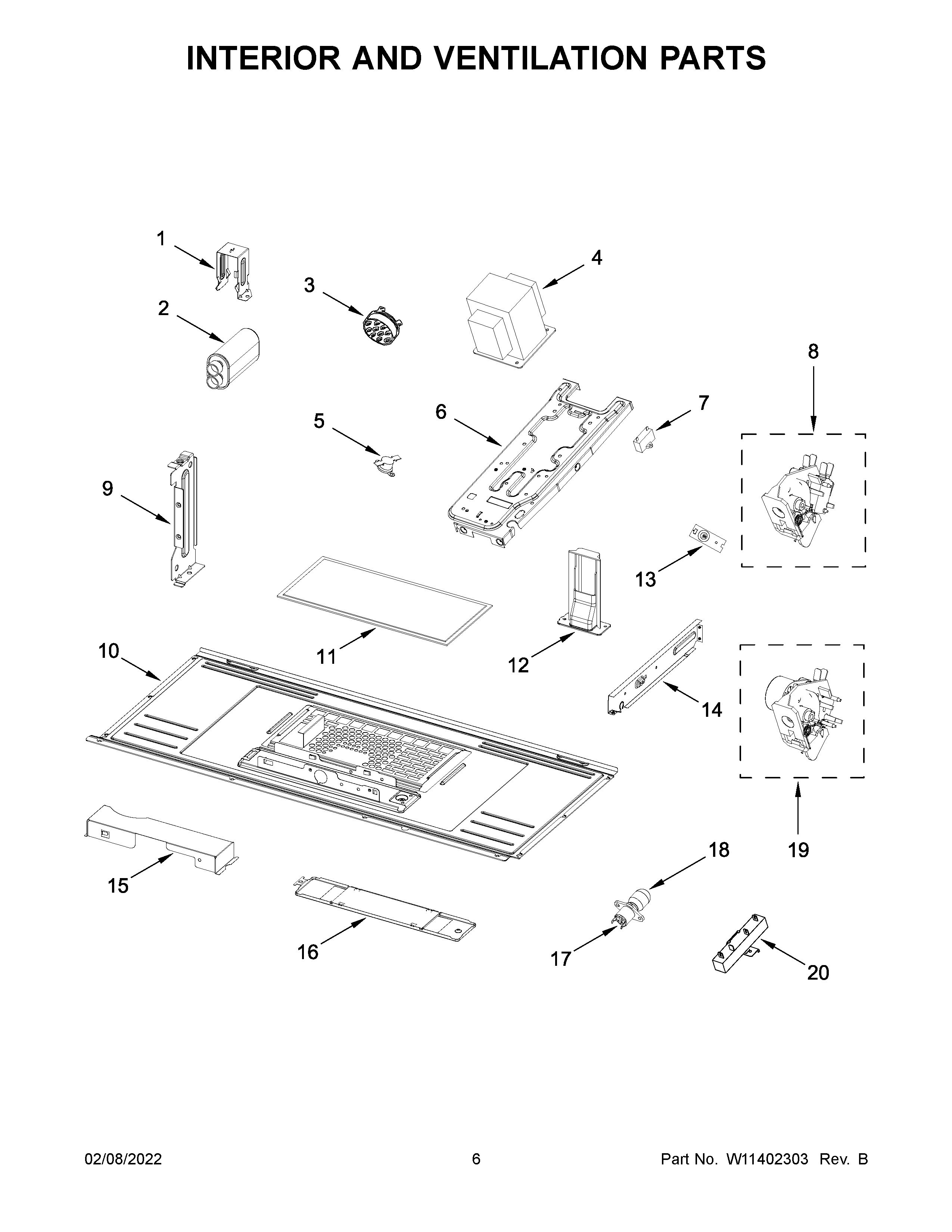

YMMV4207JZ00 04 – INTERIOR AND VENTILATION PARTS

YMMV4207JZ00 04 – INTERIOR AND VENTILATION PARTS

Written by

in

YMMV4207JZ00 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W11265233 Whirlpool Cap Carrier Bracket
28206562 Whirlpool Microwave Capacitor MG
3W10557536 Whirlpool Microwave Sensor
4W11460699 Whirlpool Microwave Transformer
5W10668273 Whirlpool Microwave Thermostat Fix
6PLATE, CHASSIS
7W11405831 Whirlpool Microwave Capacitor
8W11182140 Whirlpool Interlock Switch
9W10313275 Whirlpool Microwave Support Bracket
10W11295401 Whirlpool Base
11W11391715 Whirlpool Grease Filter
12PLATE, WATERPROOF
13W10163422 Whirlpool Microwave Thermistor
14W11295335 Whirlpool Base
15W11361503 Whirlpool Microwave Reflector
16W11295403 Whirlpool Microwave Reflector
17W10210871 Whirlpool Microwave Lamp Housing
188206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
19W11182141 Whirlpool Interlock Switch
20W11259892 Whirlpool Resistor
