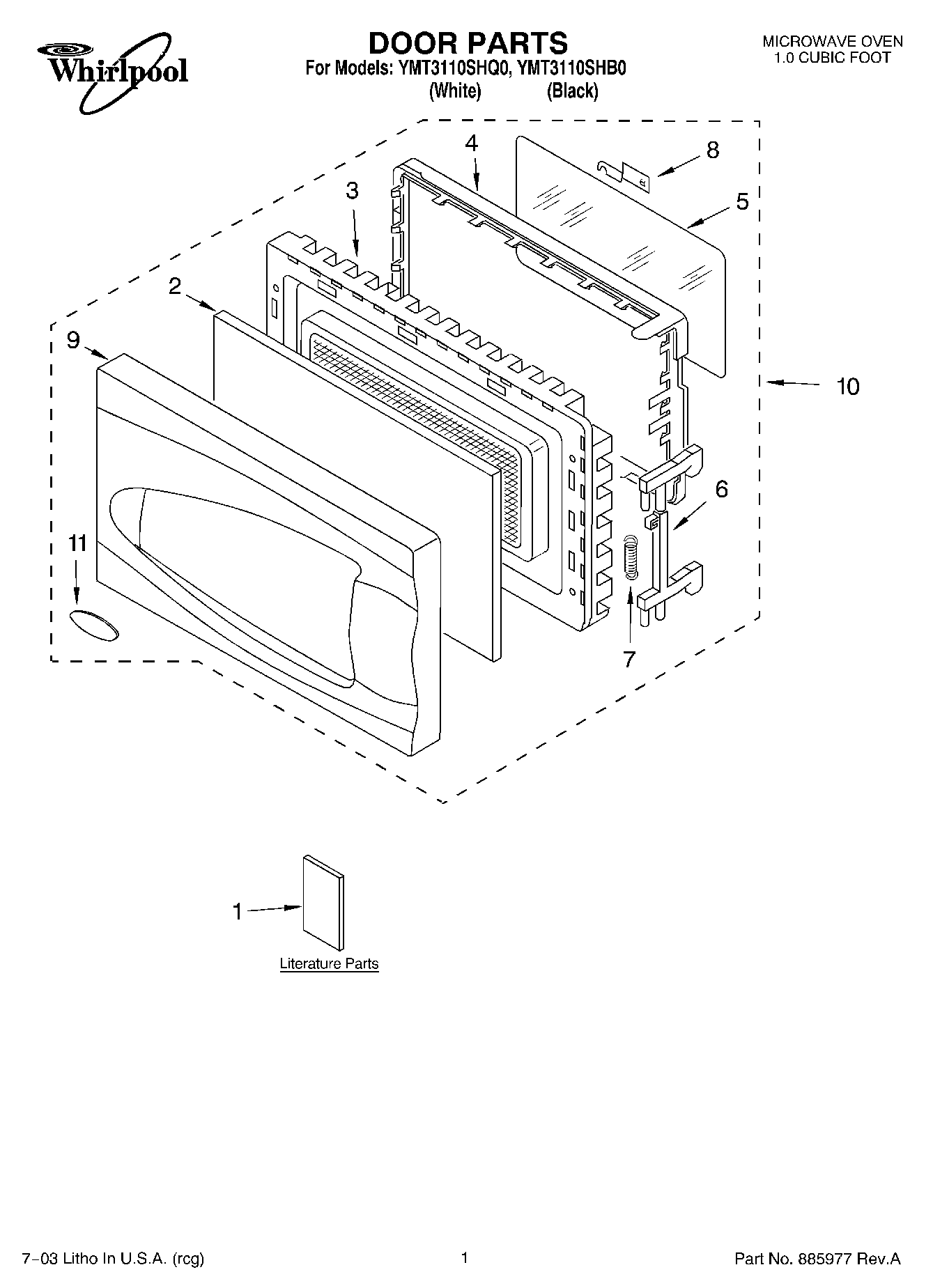

YMT3110SHB0 01 – DOOR PARTS

Written by

Products

Position	Product
1	Literature Parts (Tech Sheet Cook Guide Label)
1	Literature Parts (Guide, U & C)
1	Literature Parts (Spanish)
1	Literature Parts (English)
2	Front Screen
3	Door Frame Assembly
4	Choke Cover
5	Tape, Seal
6	Latch
7	Spring
8	Cap
9	Panel, Door (White)
9	Panel, Door (Black)
10	Door Assembly (White)
10	Door Assembly (Black)
11	Nameplate
