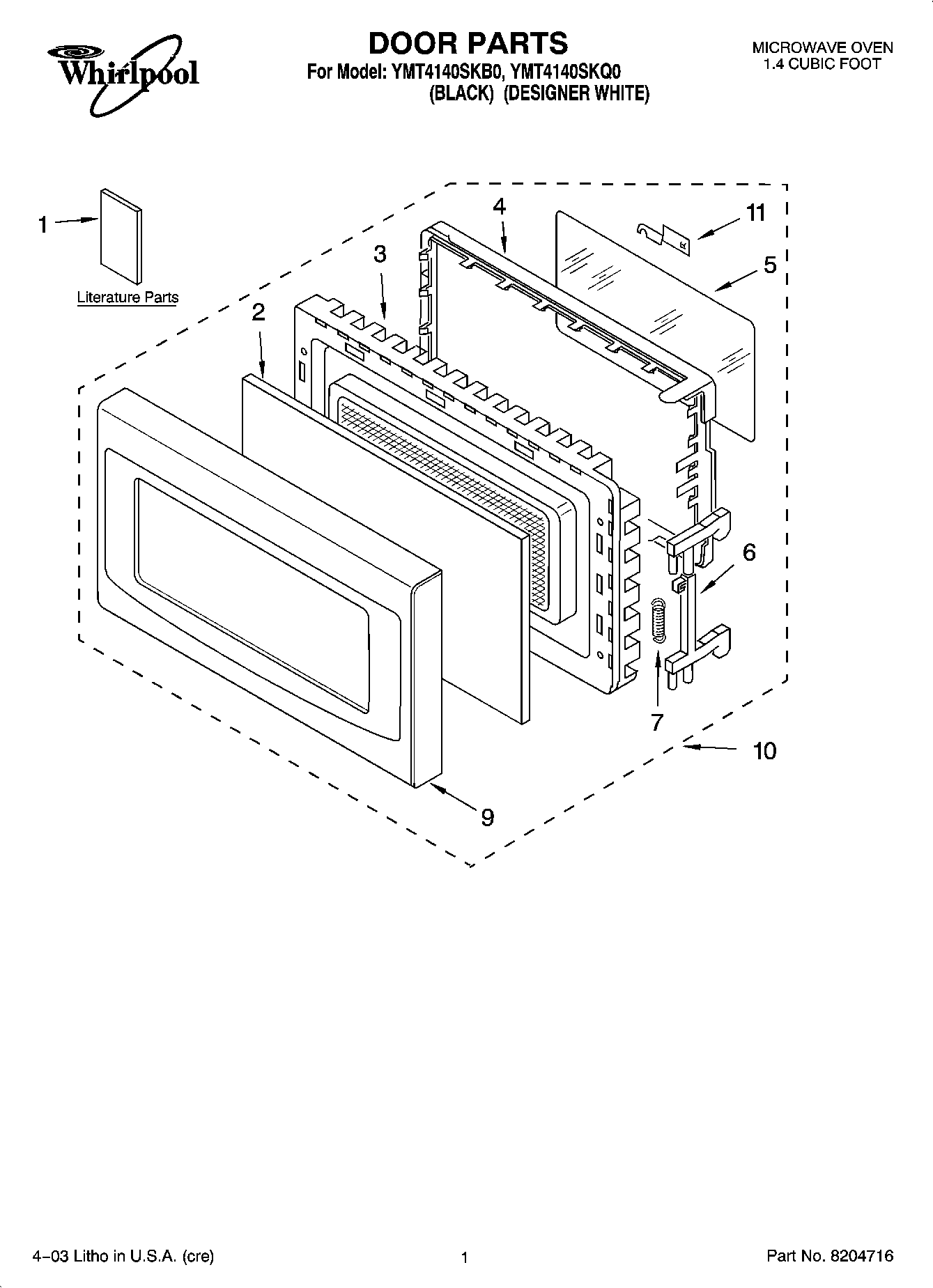

YMT4140SKQ0 01 – DOOR PARTS

Written by

Products

Position	Product
1	Literature Parts (Cook Guide Label)
1	Literature Parts (Tech Sheet)
1	Literature Parts (Guide, U & C)
2	Front Screen
3	Door Frame Assembly (Black)
3	Door Frame Assembly (White)
4	Choke Cover
5	Tape, Seal
6	Latch
7	Spring, Latch
9	Panel, Door (Black)
9	Panel, Door (White)
10	Door Assembly (Black)
10	Door Assembly (White)
11	Cap
