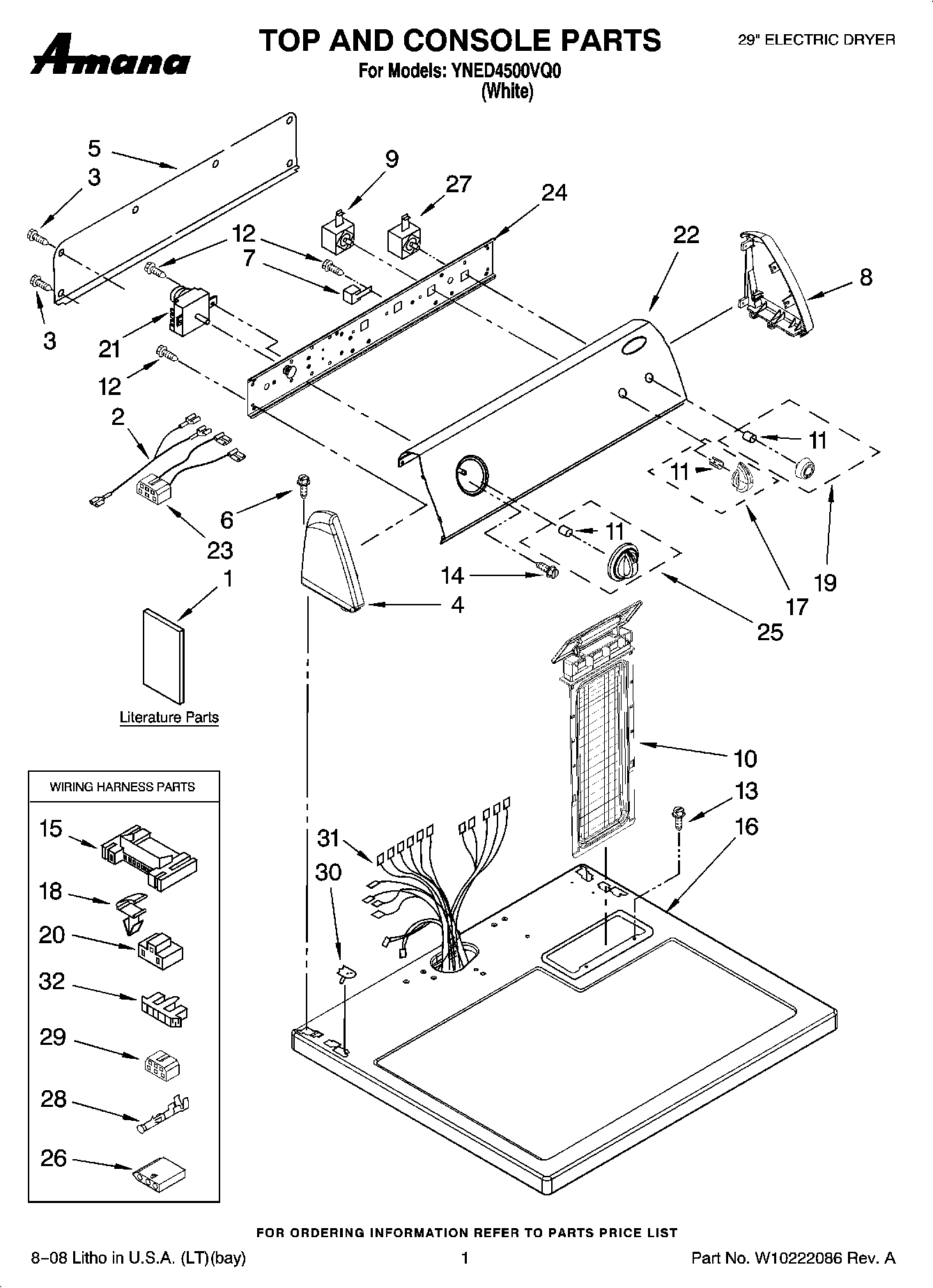

YNED4500VQ0 01 – TOP AND CONSOLE PARTS

YNED4500VQ0 01 – TOP AND CONSOLE PARTS

Written by

in

YNED4500VQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10150620
1Instructions, Installation
1MAY W10089178
1MAY 8528189
2Wire, Jumper Black (PTS)
3Screw
4MAY 8271365
5MAY 8274261
6Screw, Console
7MAY 694419
8MAY 8271359
9Switch, Wrinkle Guard
10Screen, Lint (White)
11CLIP, SPRING
12MAY 8533971
13SCREW
14MAY 8533951
15CONNECTOR (MOTOR)
16MAY 8557930
17MAY W10196503
18CLIP, HARNESS
19MAY W10196504
20Connector (PTS) Relay
21MAY 8299779
22Panel, Control
23MAY 3401695
24MAY 8271418
25Timer Knob Assembly
26MAY 3936144
27MAY 3977456
28Terminal
29Connector
30Nut, Push-In
31MAY 8299870
32Connector-Timer
