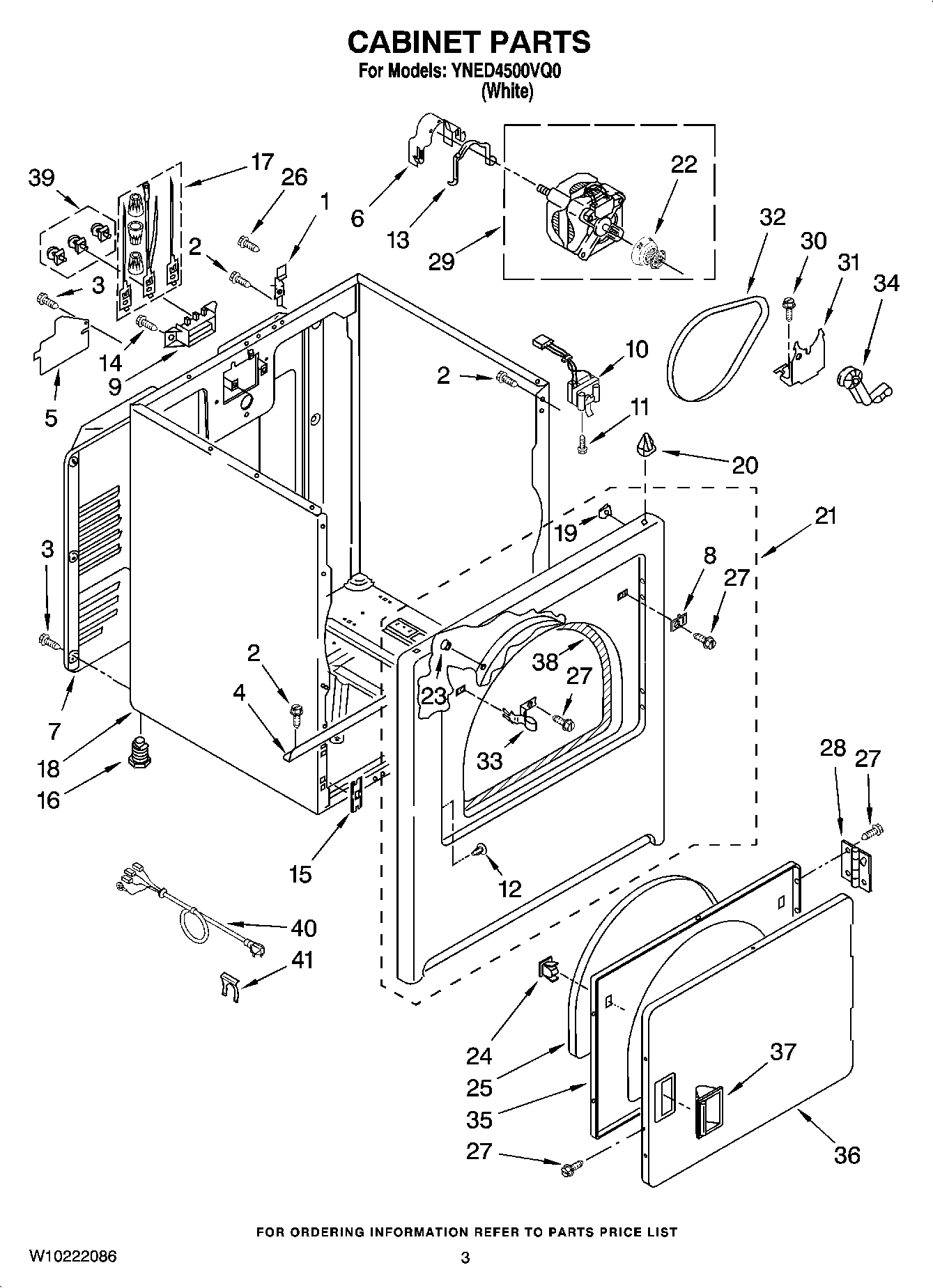

YNED4500VQ0 02 – CABINET PARTS

Products

Position	Product
1	Hinge, Top
2	SCREW
3	Screw
4	MAY 8541400
5	Cover, Terminal Block
6	Clamp, Motor (With Shield)
7	MAY 3396805
8	PLUG-STRIKE
9	MAY 3397659
10	Switch, Door
11	SCREW
12	PLUG, HINGE HOLES
13	CLAMP, MOTOR MOUNT
14	SCREW, 10-16 X 1/2
15	MAY 3394083
16	MAY 3392100
16	MAY 279810
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
21	Panel, Front (White)
22	Pulley, Motor
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	MAY 3405246
26	Screw, 8-18 x 5/8 (External Ground)
27	MAY 342055
28	HINGE AND PIN ASSEMBLY
29	Motor Assembly
30	BOLT
31	MAY 348780
32	MAY W10131364
33	Strike, Door
34	IDLER ASSEMBLY
35	Door, Rear
36	DOOR FRONT
37	Handle, Door (White)
38	MAY 3406129
39	MAY 279393
40	Power Cord
41	STRAIN-RELIEF CLIP
