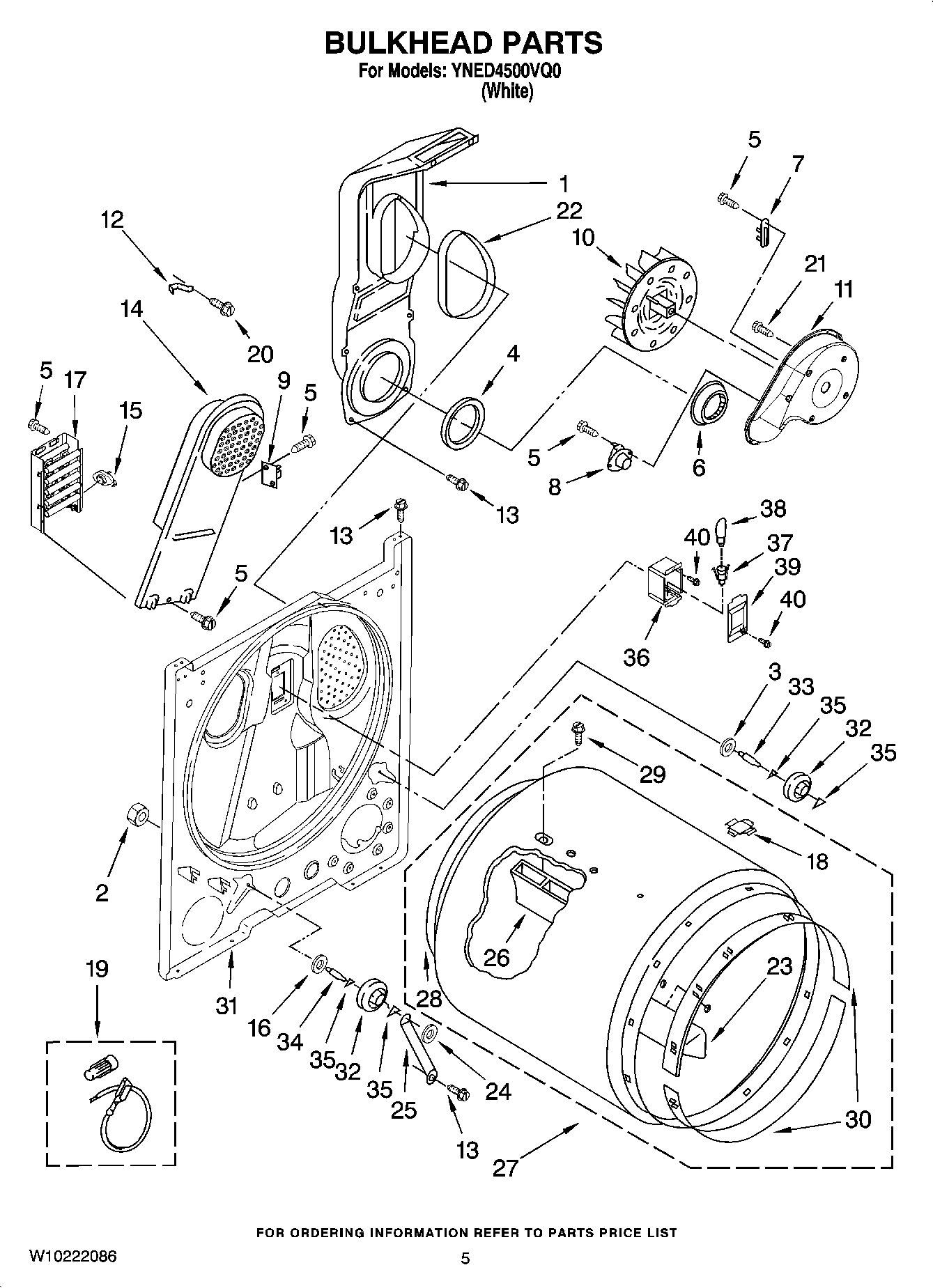

YNED4500VQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	MAY 3406839
NI	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	ACCESSORY PARTS, KIT, DRYER REPAIR
NI	MAY 4392901
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	MAY 4392899
NI	PAINT, BULK (1 qt.) (Biscuit)
1	MAY 348368
2	Nut, 3/8-16
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY 696302
7	Fuse, Thermal (91 C)
8	MAY 3387134
9	MAY 3977393
10	Wheel, Blower
11	MAY 8577230
12	MAY 8066155
13	SCREW
14	MAY 8541818
15	MAY 3977767
16	WASHER
17	MAY 3403590
18	Plug, Drum Hole
19	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
20	Screw
21	SCREW
22	MAY 339956
23	BAFFLE, DRUM (SHORT)
24	NUT, PUSH ON
25	MAY 3976434
26	BAFFLE, DRUM (LONG)
27	MAY 695587
28	MAY 3406130
29	MAY W10109200
30	Bearing, Ring
31	MAY 3403493
32	MAY 3397590
33	MAY 3399507
34	MAY 3399506
35	WASHER, TRI RING
36	MAY 3977373
37	MAY W10136369
38	MAY 3406124
39	MAY 3402841
40	MAY 487909
