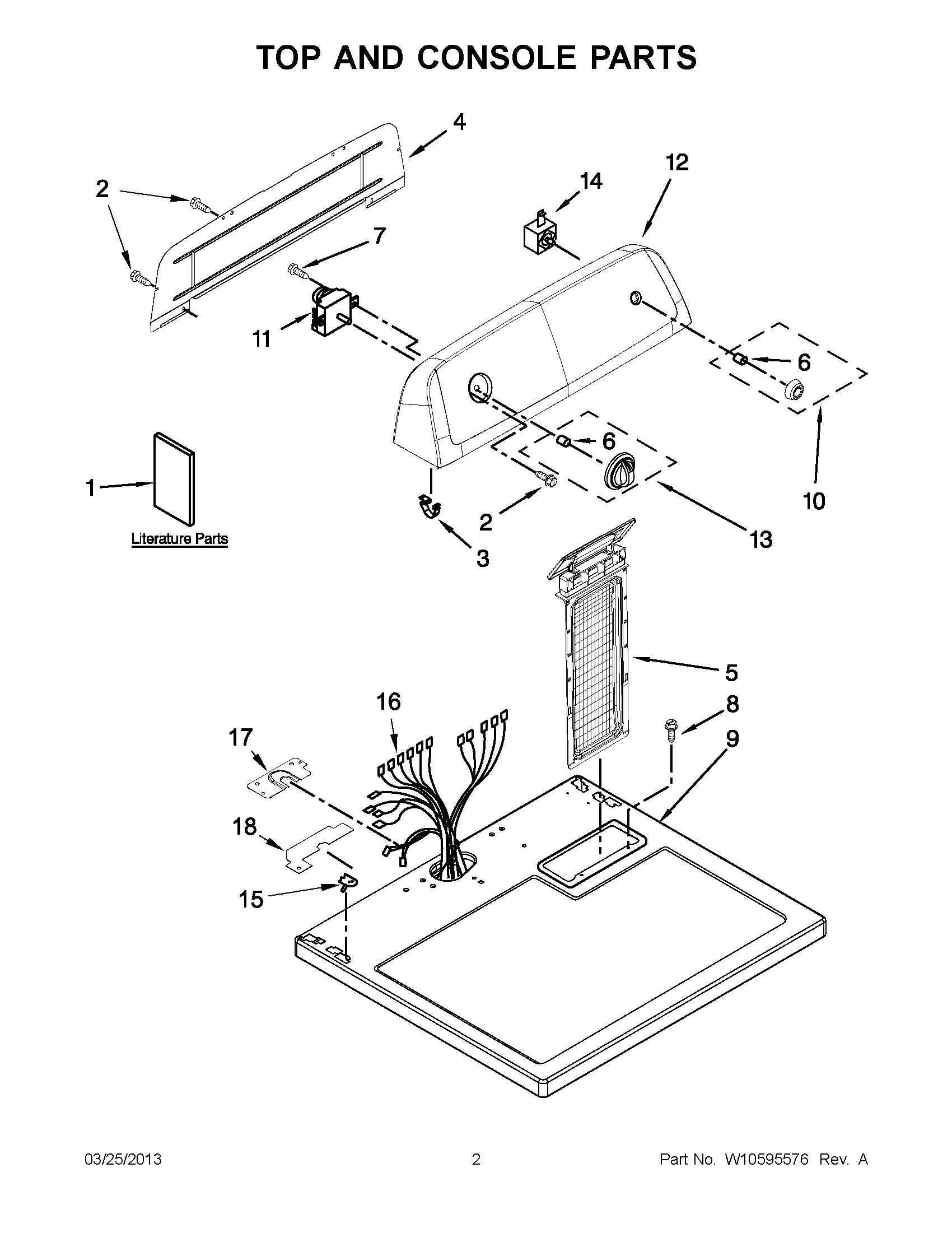

YNED4600YQ1 01 – TOP AND CONSOLE PARTS

YNED4600YQ1 01 – TOP AND CONSOLE PARTS

Written by

in

YNED4600YQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10514185
1MAY W10185990
1USE AND CARE GUIDE
2Screw
3MAY 8312709
4MAY W10416486
5Screen, Lint (White)
6CLIP, SPRING
7SCREW,8-18 X 3/8
8SCREW
9MAY 8559800
10KNOB, PUSH TO START (WHITE)
11MAY W10436308
12MAY W10097039
13ASSEMBLY, TIMER KNOB (WHITE)
14MAY W10420741
15Nut, Push-In
16HARNESS, MAIN
17MAY W10112578
18Seal-Harness
