YNED4700YQ1 01 – TOP AND CONSOLE PARTS

YNED4700YQ1 01 – TOP AND CONSOLE PARTS

Written by

in

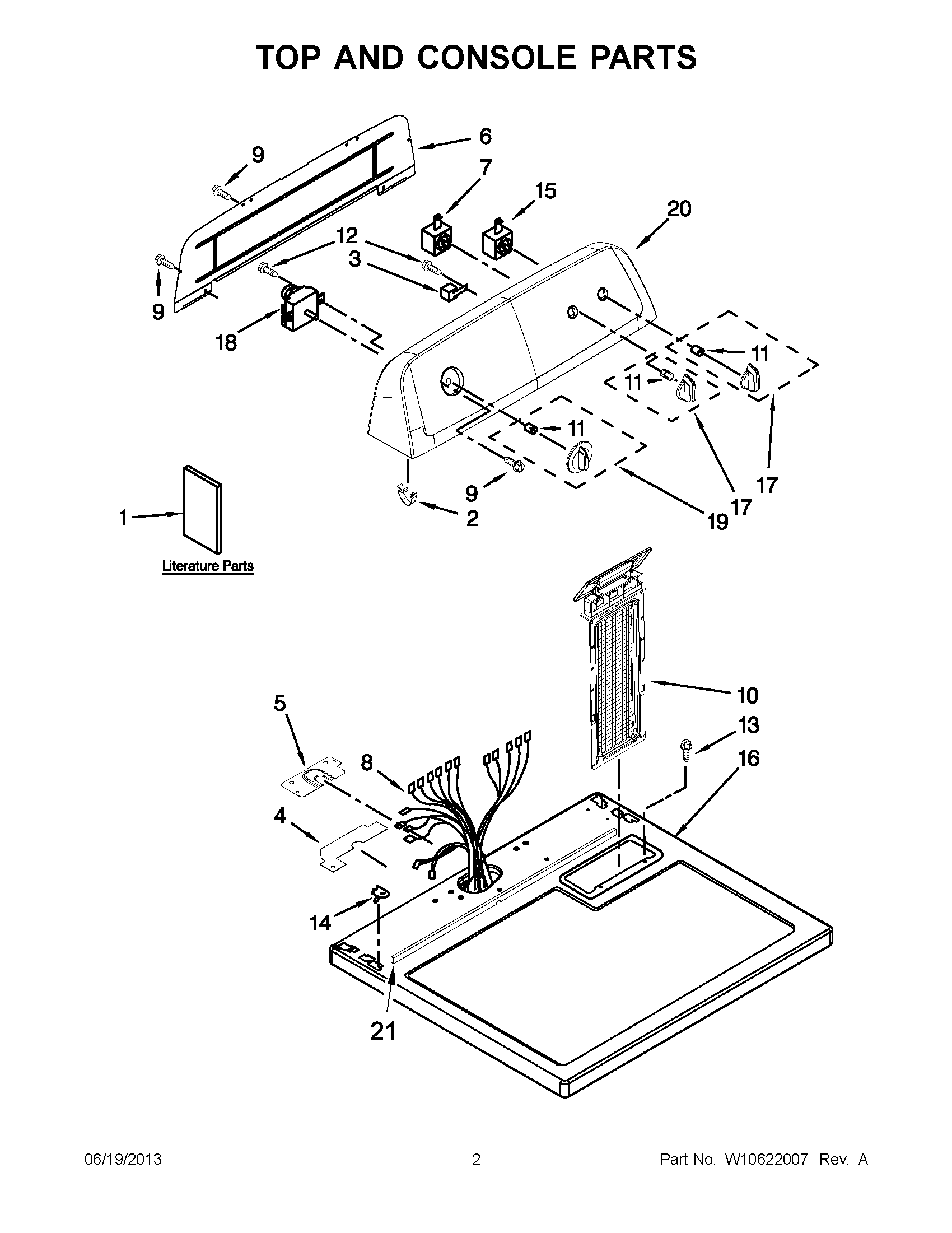

YNED4700YQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10514185
1	MAY W10185986
1	USE AND CARE GUIDE
2	MAY 8312709
3	MAY 694419
4	Seal-Harness
5	MAY W10112578
6	MAY W10416486
7	MAY W10420747
8	MAY W10450290
9	Screw
10	Screen, Lint (White)
11	CLIP, SPRING
12	MAY 3348629
13	SCREW
14	NUT, "U"
15	MAY W10446920
16	MAY 8559800
17	MAY W10453947
18	MAY W10436303
19	ASSEMBLY, TIMER KNOB (WHITE)
20	PANEL, CONTROL (WHITE)
21	MAY W10316616
