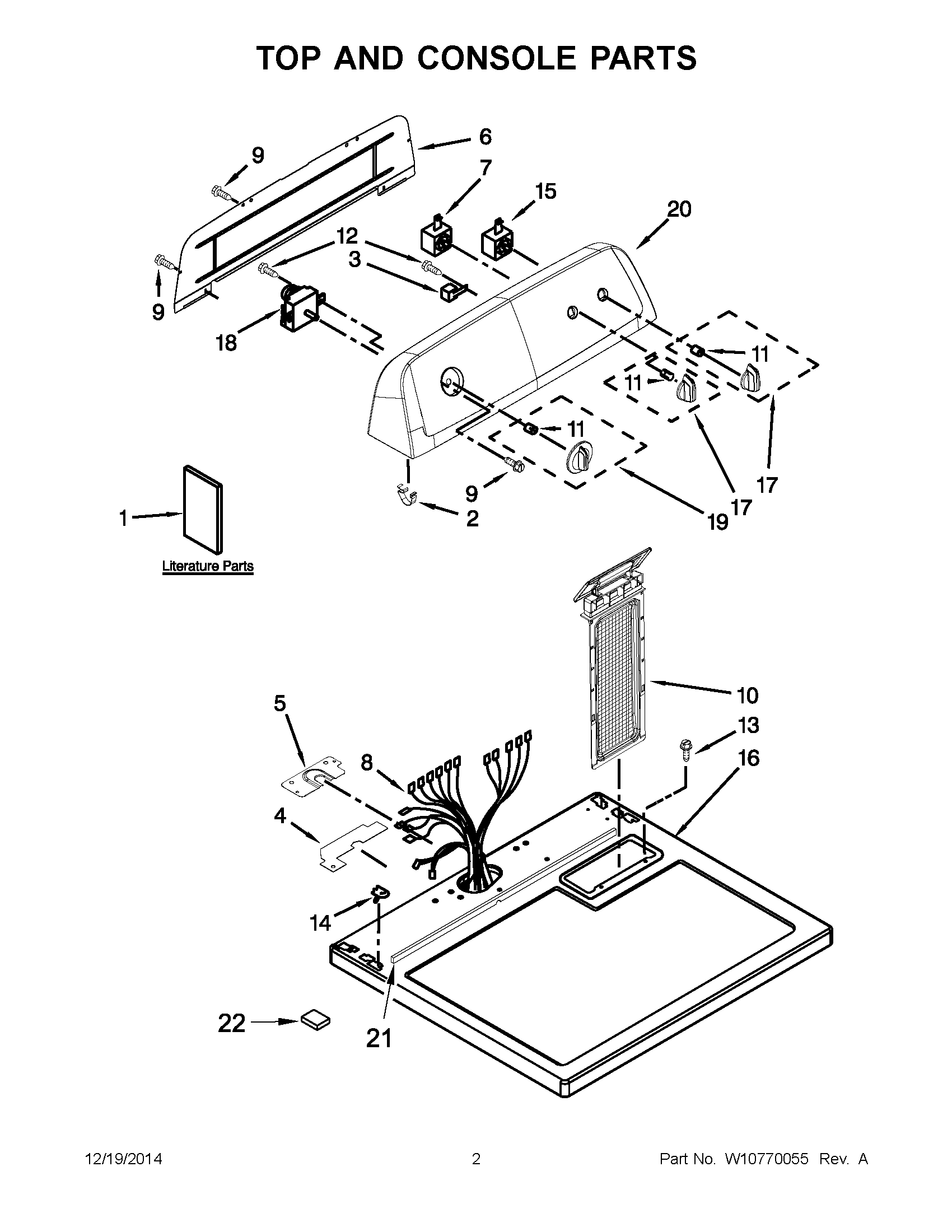

YNED4705EW0 02 – TOP AND CONSOLE PARTS

YNED4705EW0 02 – TOP AND CONSOLE PARTS

Written by

in

YNED4705EW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	MAY W10185986
1	MAY W10514185
1A	USE AND CARE GUIDE
2	MAY 8312709
3	MAY 694419
4	Seal-Harness
5	MAY W10112578
6	MAY W10416486
7	MAY W10420747
8	MAY W10450290
9	Screw
10	MAY W10717210
11	CLIP, SPRING
12	MAY 3348629
13	SCREW
14	NUT, "U"
15	MAY W10446920
16	MAY 8559800
17	MAY W10453947
18	MAY W10436303
19	MAY W10711289
20	PANEL, CONTROL (WHITE)
21	MAY W10316616
22	MAY 3389682
