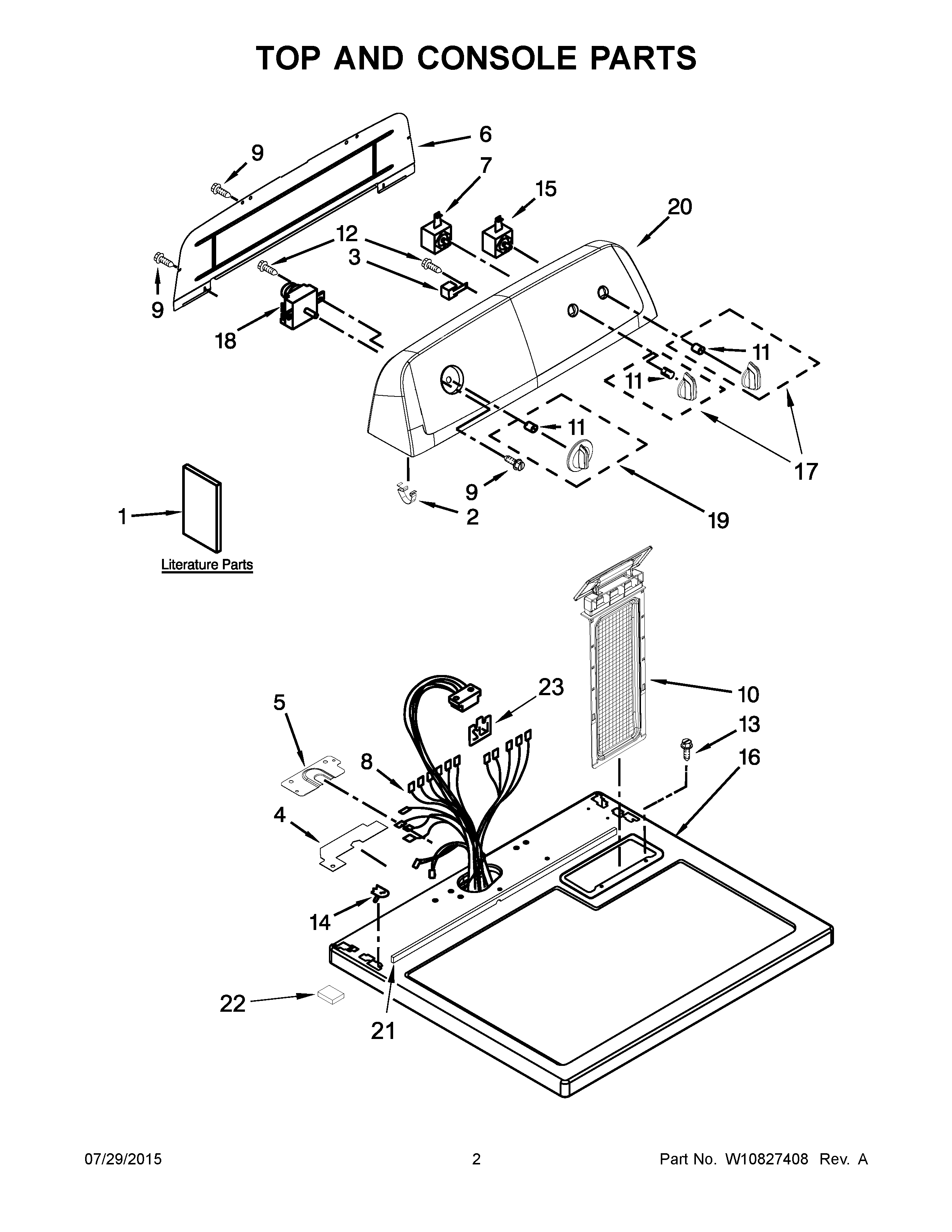

YNED4755EW0 02 – TOP AND CONSOLE PARTS

YNED4755EW0 02 – TOP AND CONSOLE PARTS

Written by

in

YNED4755EW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1A	USE AND CARE GUIDE
1	MAY W10514185
1C	MAY W10781874
1B	MAY W10185994
2	MAY 8312709
3	MAY 694419
4	Seal-Harness
5	MAY W10112578
6	MAY W10416486
7	MAY W10701552
8	MAY W10768818
9	Screw
10	MAY W10717210
11	CLIP, SPRING
12	MAY 3348629
13	SCREW
14	NUT, "U"
15	MAY W10446920
16	MAY 8559800
17	MAY W10453947
18	MAY W10685025
19	MAY W10711289
20	MAY W10779328
21	MAY W10316616
22	MAY 3389682
23	MAY W10476828
