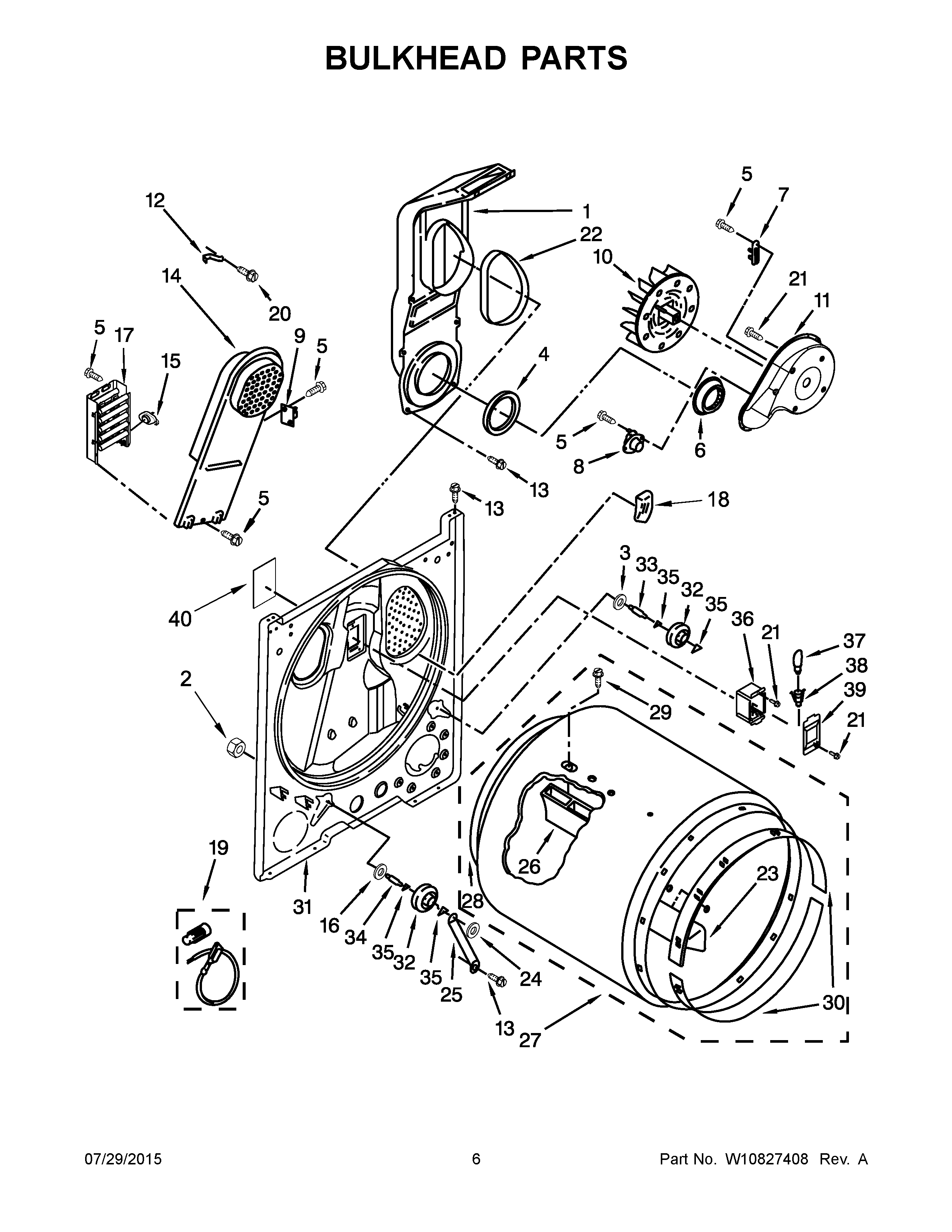

YNED4755EW0 04 – BULKHEAD PARTS

Products

Position	Product
1	MAY 348368
2	MAY W10298789
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY W10389567
7	Fuse, Thermal (91 C)
8	MAY 3387134
9	MAY 3977393
10	Wheel, Blower
11	MAY 8577230
12	CLIP HEATER BOX
13	SCREW
14	MAY 8541818
15	MAY 3977767
16	WASHER
17	ELEMENT, HEATER
18	MAY 3976479
19	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
20	Screw
21	SCREW
22	MAY 339956
23	BAFFLE, DRUM (SHORT)
24	NUT, PUSH ON
25	MAY 3976434
26	BAFFLE, DRUM (LONG)
27	ASSEMBLY, DRUM (COMPLETE)
28	MAY W10725245
29	MAY W10219342
30	Bearing, Ring
31	BULKHEAD
32	MAY 3397590
33	MAY W10359269
34	MAY W10359270
35	WASHER, TRI RING
36	MAY 3977373
37	MAY 3406124
38	MAY W10214261
39	MAY 3402841
40	PAD, FOAM
