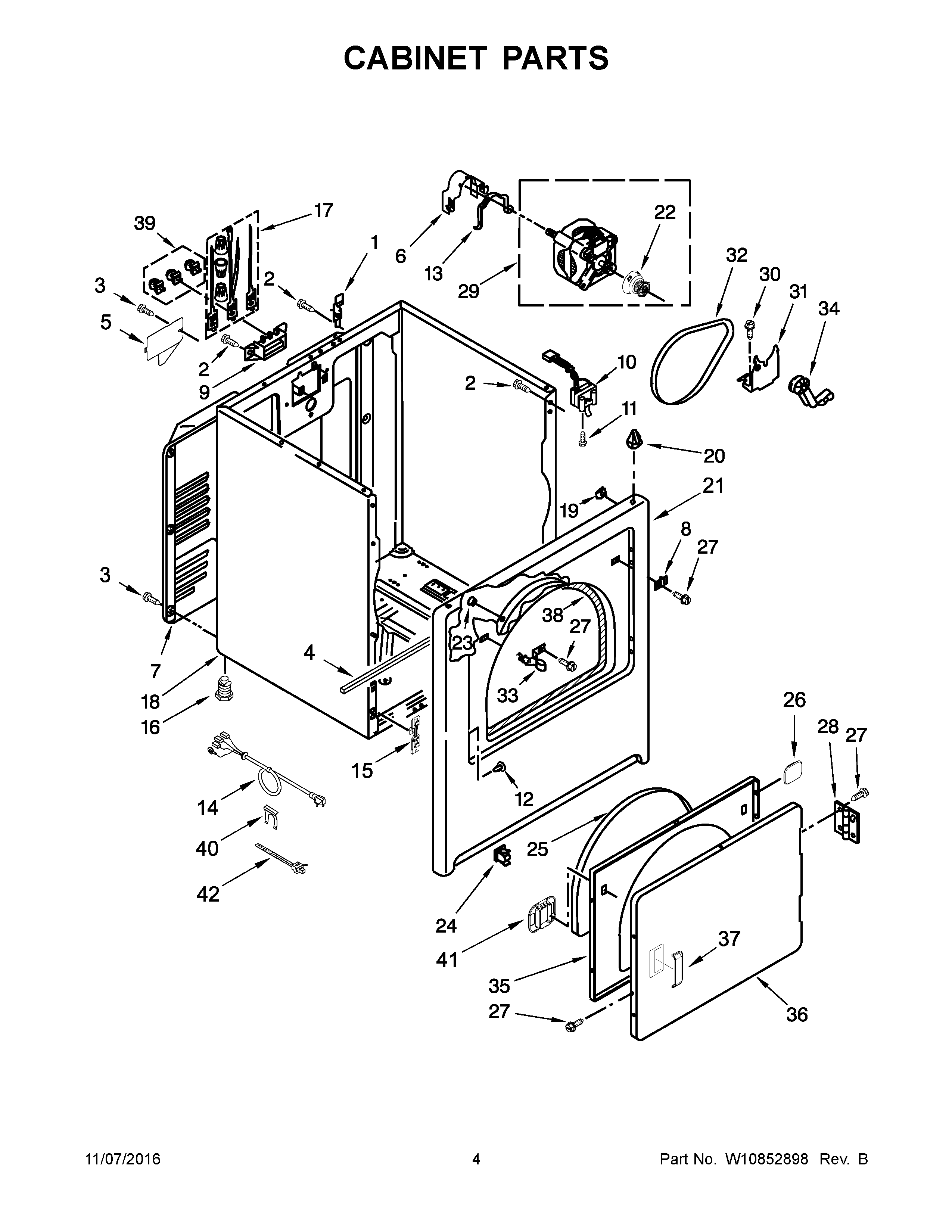

YNED4755EW1 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	Hinge, Top
2	SCREW
3	Screw
4	SEAL, SPILL GUARD
5	MAY W10571619
6	Clamp, Motor (With Shield)
7	MAY W10571724
8	PLUG, STRIKE
9	MAY 3397659
10	SWITCH, DOOR
11	SCREW
12	PLUG, HINGE HOLES
13	CLAMP, MOTOR MOUNT
14	CORD, POWER
15	CLIP, FRONT PANEL
16	MAY 3392100
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	Clip, Ground
20	MAY 8066092
21	PANEL, FRONT (WHITE)
22	Pulley, Motor
23	Clip, Felt Pad
24	MAY W10610880
25	SEAL, DOOR
26	COVER, DOOR CATCH
27	MAY 342055
28	ASSEMBLY, HINGE AND PIN
29	MOTOR ASSEMBLY
30	BOLT
31	MAY 348780
32	MAY W10131364
33	Strike, Door
34	IDLER ASSEMBLY
35	DOOR, INNER
36	DOOR, FRONT (WHITE)
37	HANDLE, DOOR (WHITE)
38	ASSEMBLY, SEAL AND BEARING
39	MAY 279393
40	STRAIN-RELIEF CLIP
41	BEZEL, DOOR CATCH
42	MAY W10267532
