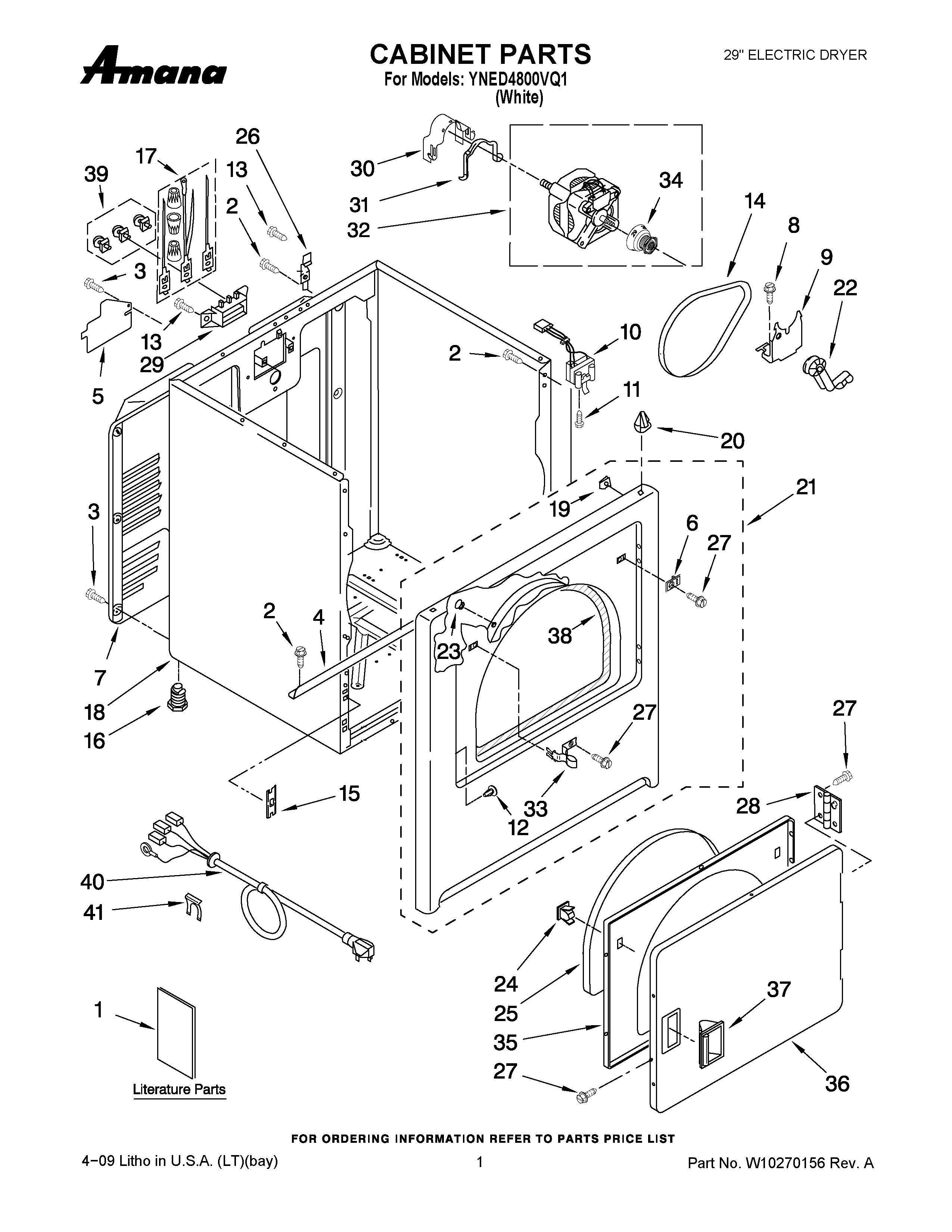

YNED4800VQ1 01 – CABINET PARTS

Products

Position	Product
1	MAY W10232964
1	MAY W10185986
1	MAY W10089178
1	Instructions, Installation
2	SCREW
3	Screw
4	MAY 8541400
5	Cover, Terminal Block
6	PLUG-STRIKE
7	MAY 3396805
8	BOLT
9	MAY 348780
10	Switch, Door
11	SCREW
12	PLUG, HINGE HOLES
13	Screw, 8-18 x 5/8 (External Ground)
14	MAY W10131364
15	MAY 3394083
16	MAY 3392100
16	MAY 279810
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
21	Panel Front Assembly
22	IDLER ASSEMBLY
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	MAY 3405246
26	Hinge, Top
27	MAY 342055
28	HINGE AND PIN ASSEMBLY
29	MAY 3397659
30	Clamp, Motor (With Shield)
31	CLAMP, MOTOR MOUNT
32	Motor Assembly
33	Strike, Door
34	Pulley, Motor
35	Door, Rear
36	DOOR FRONT
37	Handle, Door (White)
38	MAY 3406129
39	MAY 279393
40	Power Cord
41	STRAIN-RELIEF CLIP
