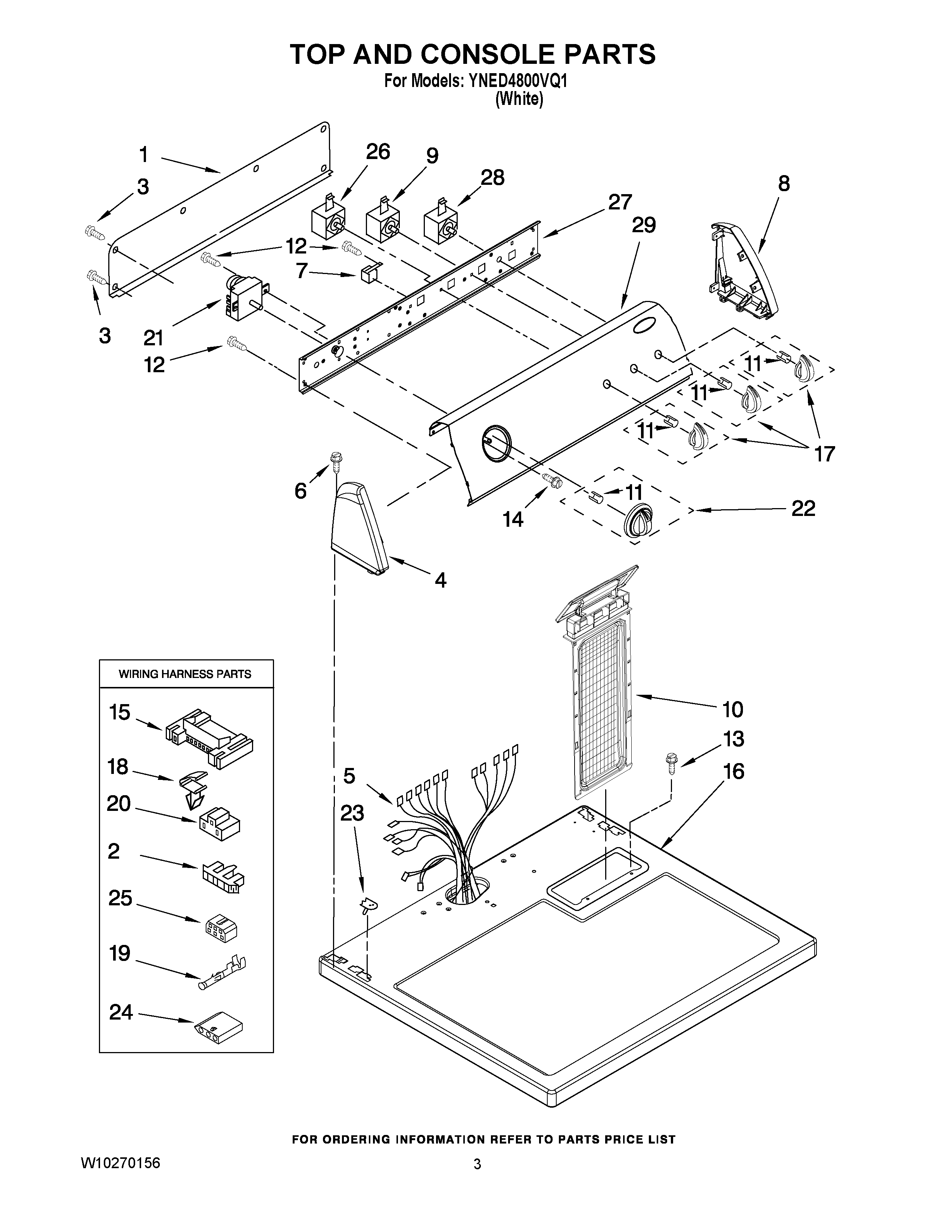

YNED4800VQ1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY 8274261
2	Connector-Timer
3	Screw
4	MAY 8271365
5	MAY W10111049
6	Screw, Console
7	MAY 694419
8	MAY 8271359
9	MAY 3405156
10	Screen, Lint (White)
11	CLIP, SPRING
12	MAY 8533971
13	SCREW
14	MAY 8533951
15	CONNECTOR (MOTOR)
16	MAY 8557930
17	MAY W10196503
18	CLIP, HARNESS
19	Terminal
20	Connector (PTS) Relay
21	TIMER, 60 HZ.
22	Timer Knob Assembly
23	Nut, Push-In
24	MAY 3936144
25	Connector
26	Switch, Temperature
27	MAY 8271418
28	MAY 3398095
29	MAY W10086735
