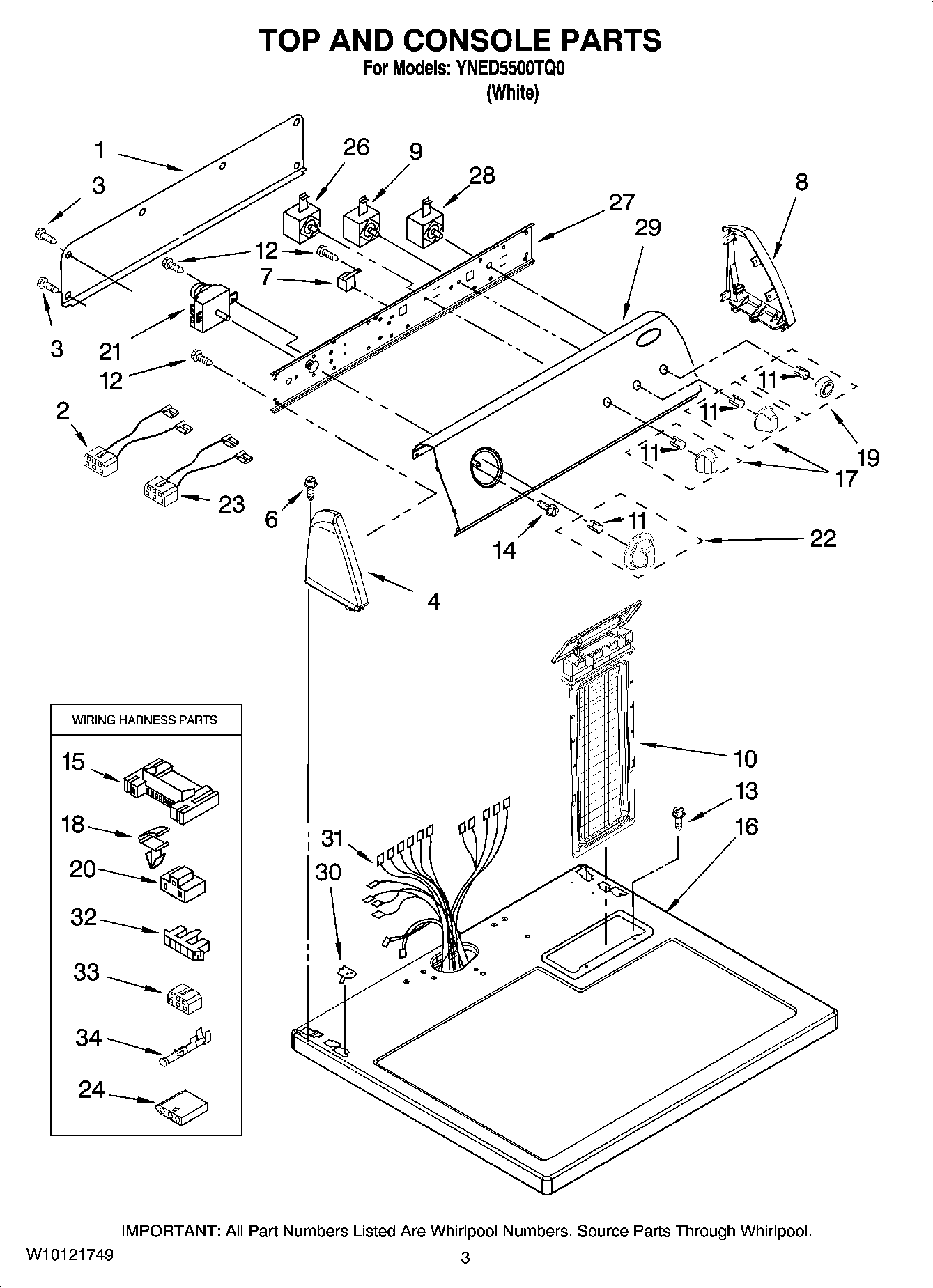

YNED5500TQ0 02 – TOP AND CONSOLE PARTSadmin2025-04-26T08:51:43+00:00YNED5500TQ0 02 – TOP AND CONSOLE PARTS
Products
| Position | Product |
|---|
| 1 | MAY 8274261 |
| 2 | MAY 3401695 |
| 3 | Screw |
| 4 | MAY 8271365 |
| 6 | Screw, Console |
| 7 | MAY 694419 |
| 8 | MAY 8271359 |
| 9 | Switch, Temperature |
| 10 | Screen, Lint (White) |
| 11 | CLIP, SPRING |
| 12 | MAY 8533971 |
| 13 | SCREW |
| 14 | MAY 8533951 |
| 15 | CONNECTOR (MOTOR) |
| 16 | MAY 8557930 |
| 17 | Knob, Control (2) (White) |
| 18 | CLIP, HARNESS |
| 19 | Knob, Push-To-Start (White) |
| 20 | Connector (PTS) Relay |
| 21 | MAY 3979617 |
| 22 | Timer Knob, Assembly (White) |
| 23 | Wire, Jumper (Temperature) |
| 24 | MAY 3936144 |
| 26 | Switch, Wrinkle Guard |
| 27 | MAY 8271418 |
| 28 | Switch, Push-To-Start |
| 29 | MAY W10086670 |
| 30 | Nut, Push-In |
| 31 | MAY 8299874 |
| 32 | Connector-Timer |
| 33 | Connector |
| 34 | Terminal |
