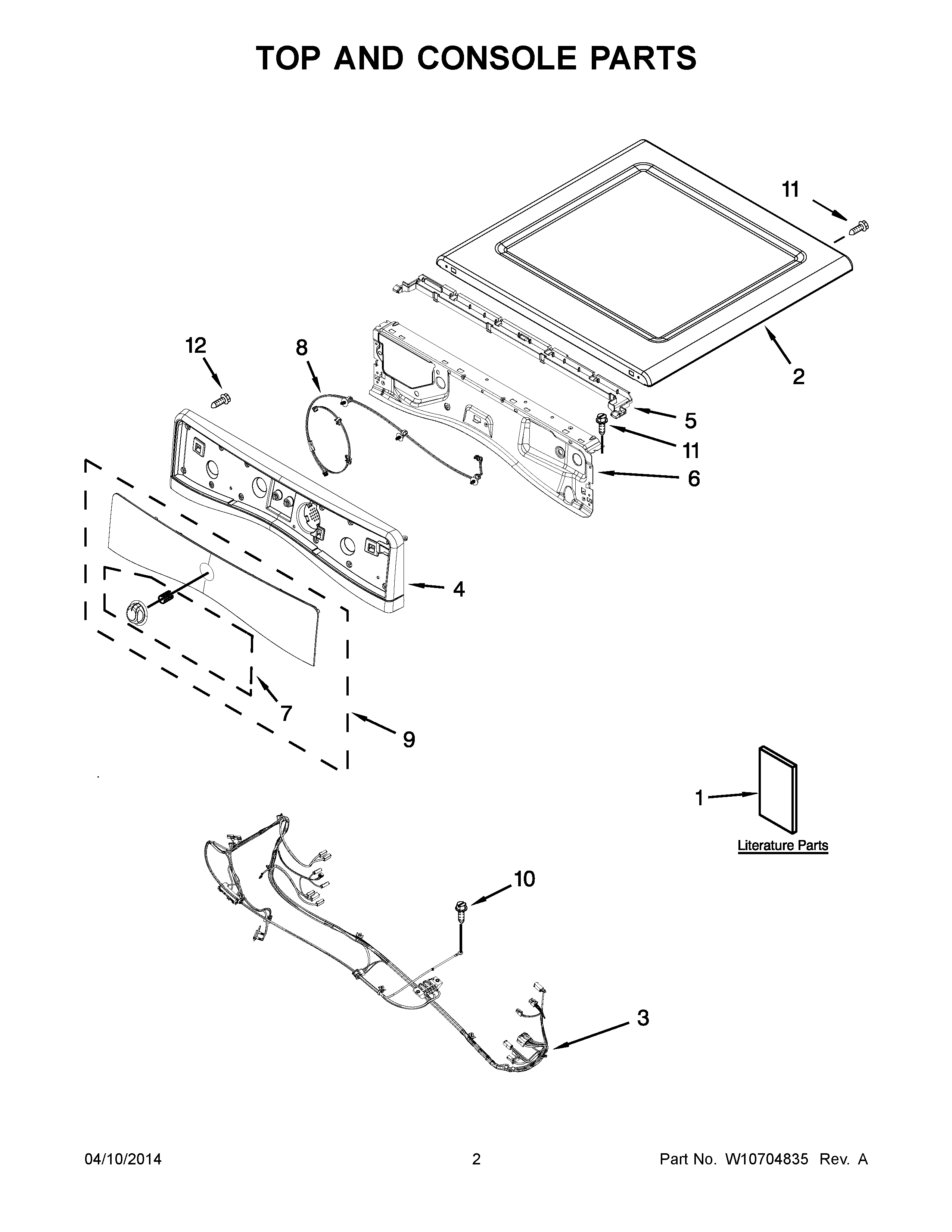

YNED5800DW0 02 – TOP AND CONSOLE PARTS

YNED5800DW0 02 – TOP AND CONSOLE PARTS

Written by

in

YNED5800DW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10573707
1MAY W10504398
1USE AND CARE GUIDE
1MAY W10572501
2MAY W10208383
3MAY W10526663
4PANEL, CONSOLE (WHITE)
5WATER CHANNEL
6MAY W10208198
7ASSEMBLY, CONTROL KNOB (BLACK)
8MAY W10540654
9MAY W10639916
10Screw
11SCREW
12MAY W10489172
