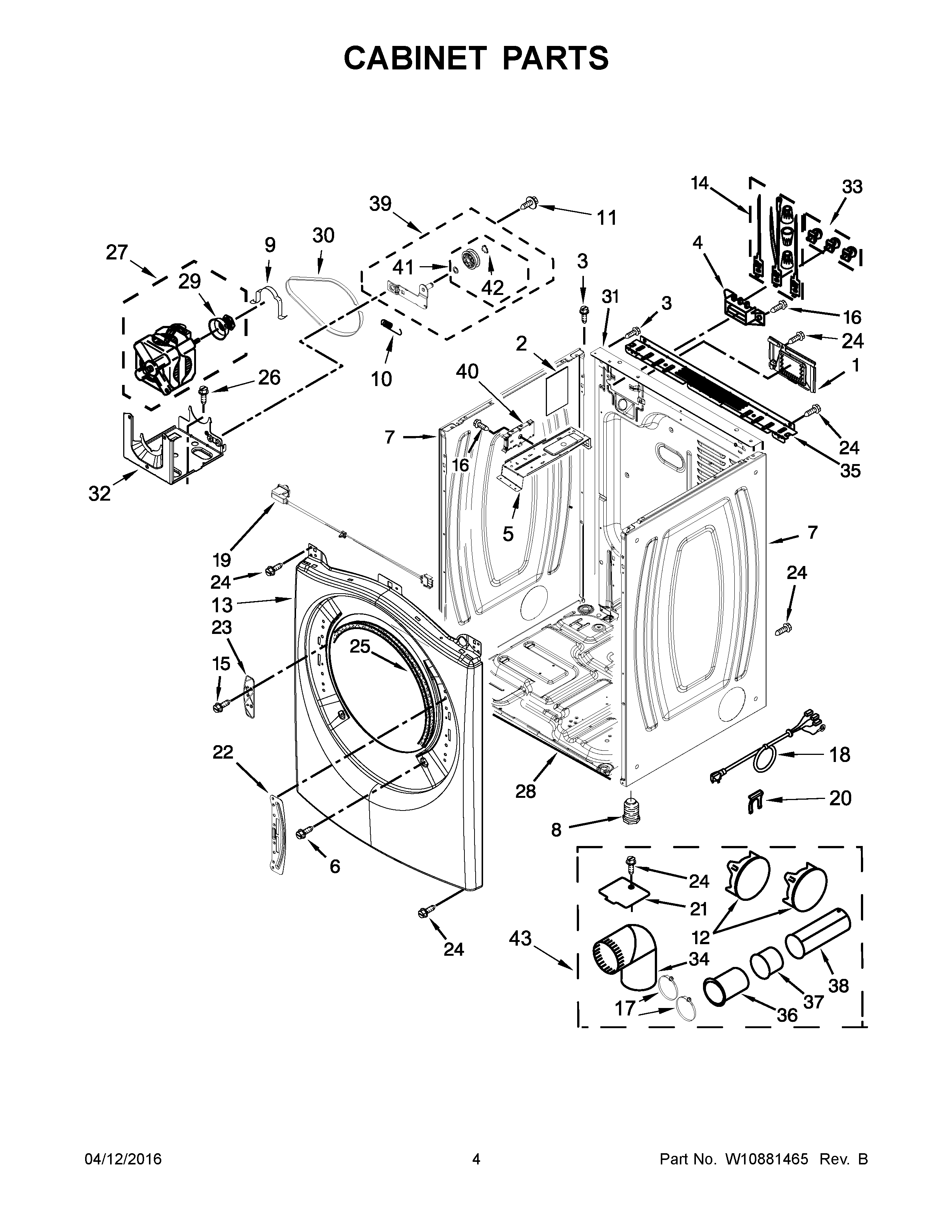

YNED5800DW1 03 – CABINET PARTS

YNED5800DW1 03 – CABINET PARTS

Written by

in

YNED5800DW1 03 – CABINET PARTS

Products

PositionProduct
NIMAY 279810
1MAY W10316167
2MAY W10504381
3Screw
4MAY 3397659
5MAY W10259611
6SCREW
7MAY W10468495
8MAY 3392100
9CLAMP, MOTOR MOUNT
10MAY W10446781
11SCREW
12PLUG, MULTIVENT (MIDNIGHT GREY)
13FRONT PANEL (INCLUDES DOOR HINGE BRACKET) (WHITE)
14TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15MAY W10288126
16MAY 8533974
17MAY W10344699
18CORD, POWER
19ASSEMBLY, DOOR SWITCH
20STRAIN-RELIEF CLIP
21MAY W10354249
22MAY W10208218
23MAY W10208250
24SCREW
25MAY 3387242
26SCREW
27ASSEMBLY, MOTOR
28MAY 8565046
29Pulley, Motor
30MAY 3387610
31MAY W10487431
32MAY W10242878
33MAY 279393
34MAY W10416072
35MAY W10208382
36PIPE, EXHAUST (MEDIUM)
37PIPE, EXHAUST (SHORT)
38PIPE, EXHAUST (LONG)
39ASSEMBLY, IDLER
40BOARD, CONTROL
41MAY W10468057
42WASHER, TRI RING
43KIT, 4-WAY VENT
