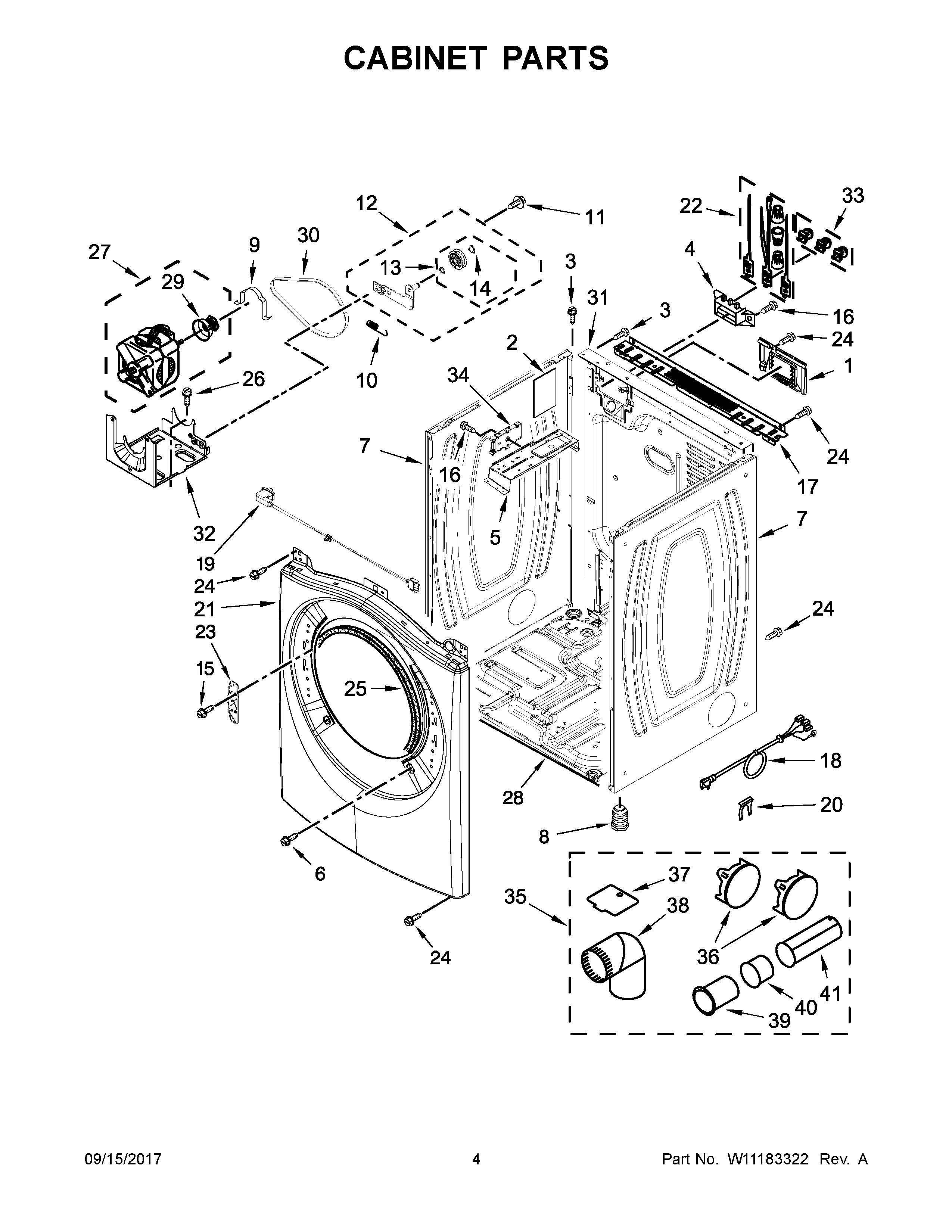

YNED5800DW2 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10316167
2	MAY W10504381
3	Screw
4	MAY 3397659
5	MAY W10259611
6	SCREW
7	MAY W10468495
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	ASSEMBLY, IDLER
13	MAY W10468057
14	WASHER, TRI RING
15	MAY W10288126
16	SCREW
17	MAY W10208382
18	CORD, POWER
19	ASSEMBLY, DOOR SWITCH
20	STRAIN-RELIEF CLIP
21	FRONT PANEL (INCLUDES DOOR HINGE BRACKET) (WHITE)
22	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
23	MAY W10208250
24	SCREW
25	MAY 3387242
26	SCREW
27	ASSEMBLY, MOTOR
28	MAY 8565046
29	Pulley, Motor
30	MAY 3387610
31	MAY W10487431
32	MAY W10242878
33	MAY 279393
34	BOARD, CONTROL
35	KIT, 4-WAY VENT
36	PLUG, MULTIVENT (MIDNIGHT GREY)
37	MAY W10354249
38	MAY W10416072
39	PIPE, EXHAUST (MEDIUM)
40	PIPE, EXHAUST (SHORT)
41	PIPE, EXHAUST (LONG)
