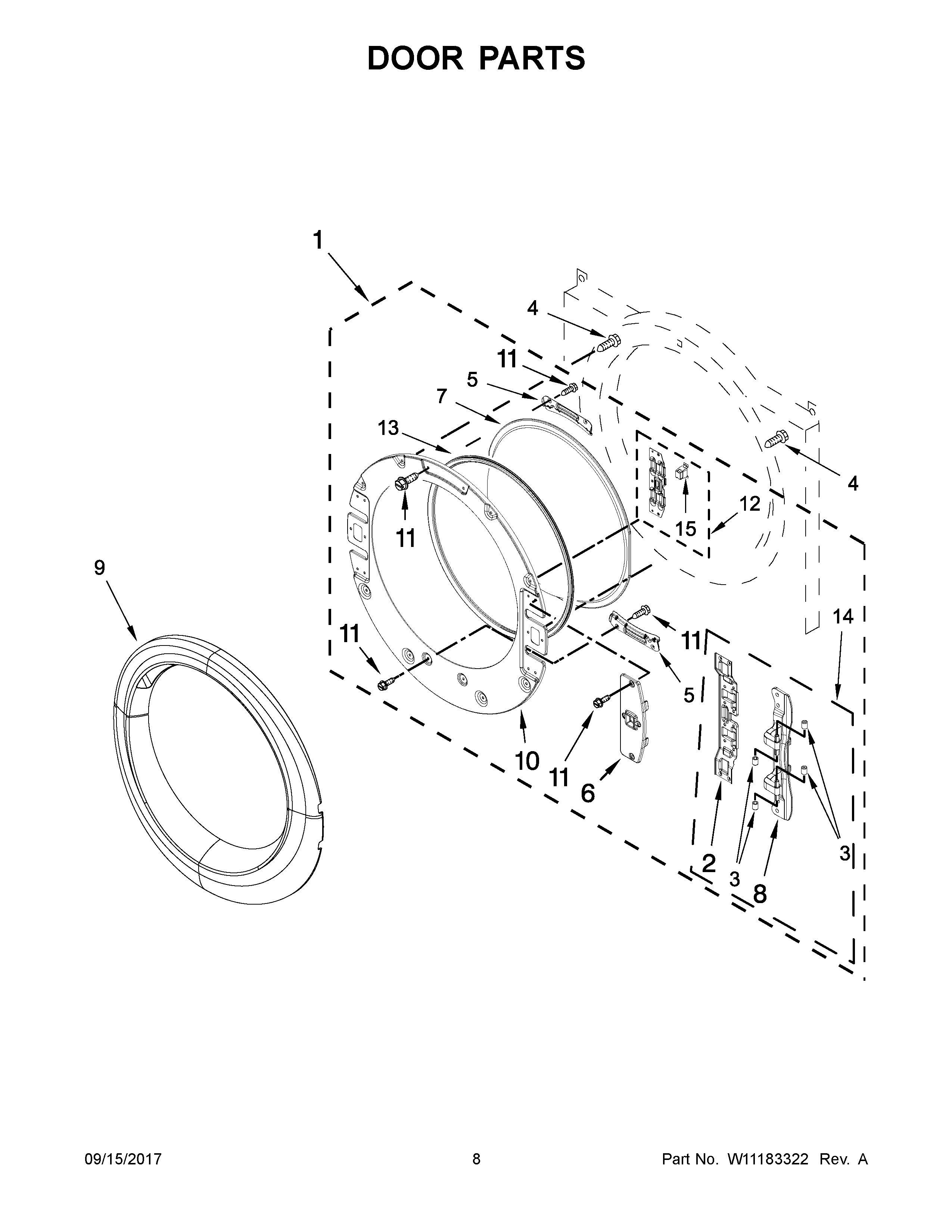

YNED5800DW2 05 – DOOR PARTS

Written by

Products

Position	Product
1	ASSEMBLY, INNER DOOR (CHROME SHADOW)
2	HINGE BASE
3	MAY W10208398
4	Screw
5	MAY W10208252
6	COVER, DOOR CATCH
7	GLASS, DOOR
8	MAY W10208419
9	DOOR, OUTER
10	DOOR, INNER (CHROME SHADOW)
11	MAY W10288126
12	MAY W10208254
13	MAY W10329710
14	DOOR HINGE ASSEMBLY
15	MAY W10208401
