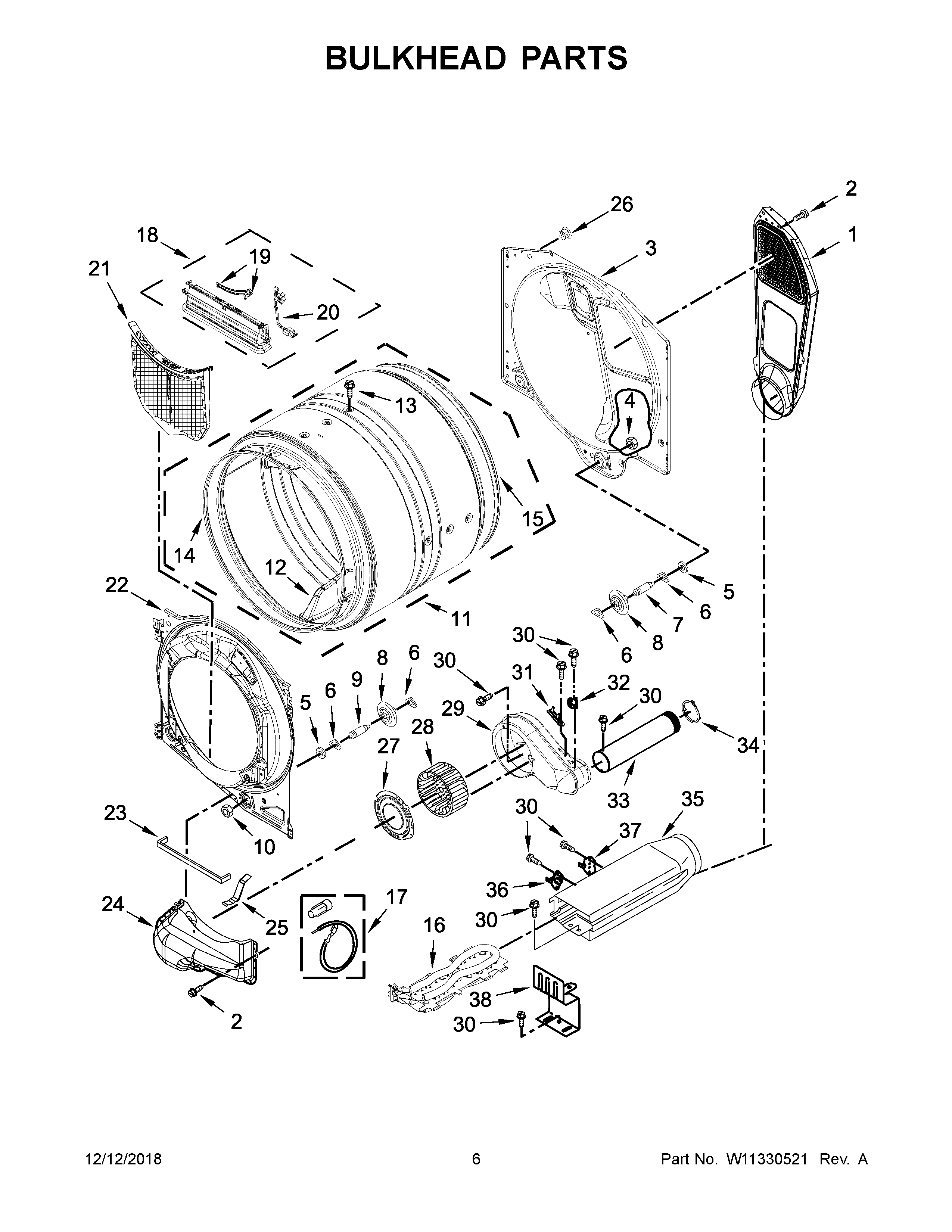

YNED5800HW0 04 – BULKHEAD PARTSadmin2025-04-26T08:51:52+00:00YNED5800HW0 04 – BULKHEAD PARTS
Products
| Position | Product |
|---|
| 1 | ASSEMBLY, AIR DUCT |
| 2 | SCREW |
| 3 | BULKHEAD, REAR |
| 4 | NUT, HEX (LEFT HAND THREAD) |
| 5 | WASHER |
| 6 | WASHER, TRI RING |
| 7 | SHAFT, DRUM ROLLER - LEFT HAND THREAD |
| 8 | ROLLER, SUPPORT |
| 9 | SHAFT, DRUM ROLLER RIGHT HAND THREAD |
| 10 | NUT, HEX |
| 11 | DRUM ASSEMBLY COMPLETE |
| 12 | MAY W10416098 |
| 13 | MAY W10219342 |
| 14 | MAY W10521122 |
| 15 | MAY W10521118 |
| 16 | MAY W11045584 |
| 17 | BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE |
| 18 | ASSEMBLY, OUTLET GRILL AND HOUSING |
| 19 | SENSOR, ELECTRODE |
| 20 | MAY W10298258 |
| 21 | LINT SCREEN (WHITE) |
| 22 | BULKHEAD, FRONT |
| 23 | MAY W10211950 |
| 24 | MAY W10211896 |
| 25 | MAY W10414388 |
| 26 | MAY 8529007 |
| 27 | MAY W11254843 |
| 28 | MAY 697772 |
| 29 | MAY W10211911 |
| 30 | Screw |
| 31 | FUSE, THERMAL (91C) |
| 32 | THERMISTOR |
| 33 | MAY W10342188 |
| 34 | MAY W10344699 |
| 35 | ASSEMBLY, WELD HEATER BOX |
| 36 | MAY 8557403 |
| 37 | KIT, THERMAL CUT-OFF (INCLUDES HIGH LIMIT THERMOSTAT) |
| 38 | MAY 8066099 |
