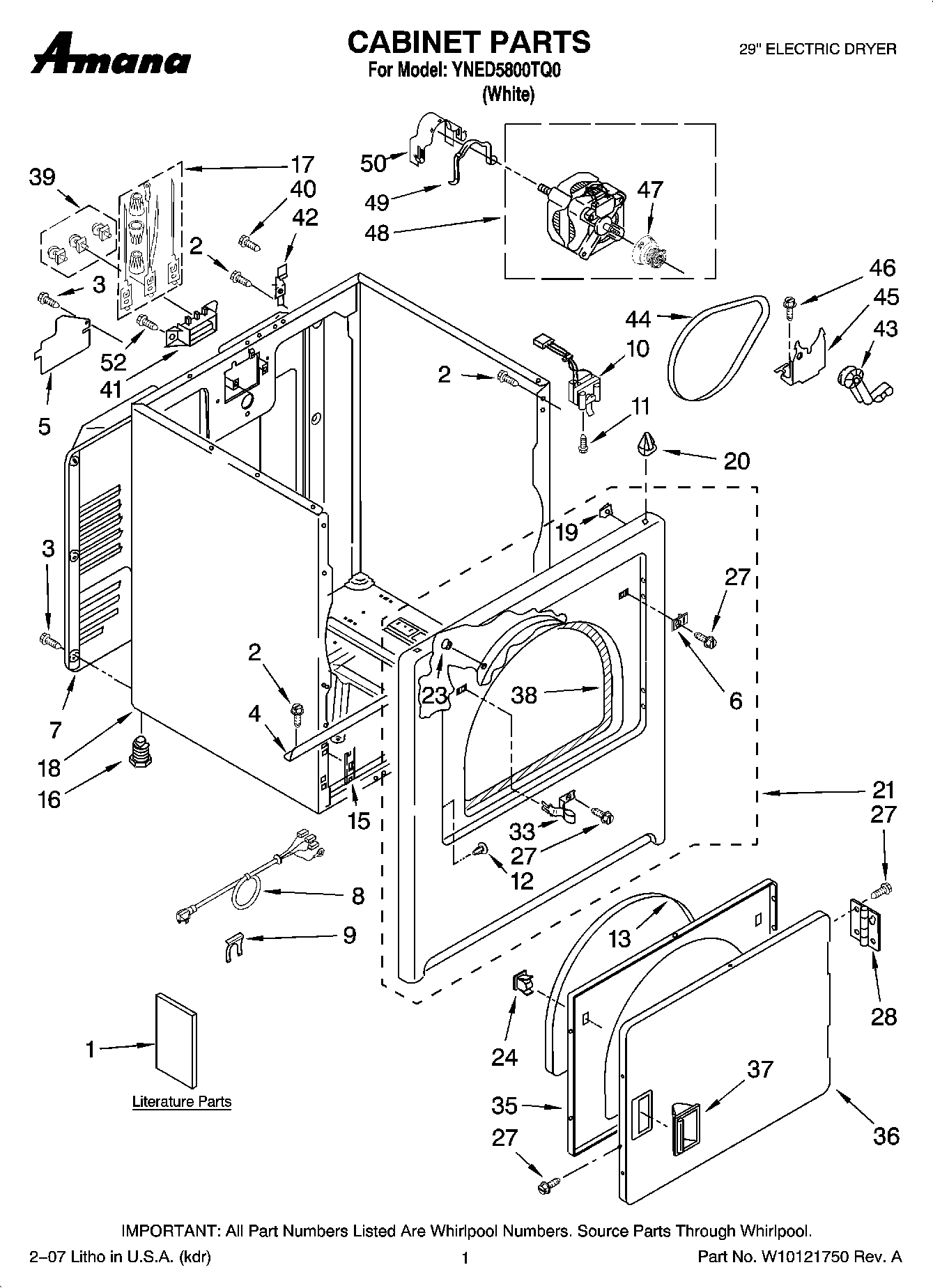

YNED5800TQ0 01 – CABINET PARTS

Products

Position	Product
1	MAY W10089173
1	MAY W10088970
1	MAY 3406668
1	MAY W10088771
2	SCREW
3	Screw
4	MAY 8541400
5	Cover, Terminal Block
6	PLUG-STRIKE
7	MAY 3396805
8	Power Cord
9	STRAIN-RELIEF CLIP
10	Switch, Door
11	SCREW
12	PLUG, HINGE HOLES
13	MAY 3405246
15	MAY 3394083
16	MAY 3392100
16	MAY 279810
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
21	Panel, Front (White)
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
27	MAY 342055
28	HINGE AND PIN ASSEMBLY
33	Strike, Door
35	Door, Rear
36	DOOR FRONT
37	Handle, Door (White)
38	MAY 3406129
39	MAY 279393
40	Screw, 8-18 x 5/8 (External Ground)
41	MAY 3397659
42	Hinge, Top
43	IDLER ASSEMBLY
44	MAY 8066065
45	MAY 348780
46	BOLT
47	Pulley, Motor
48	MAY 8066206
49	MAY 660658
50	Clamp, Motor (With Shield)
52	SCREW, 10-16 X 1/2
