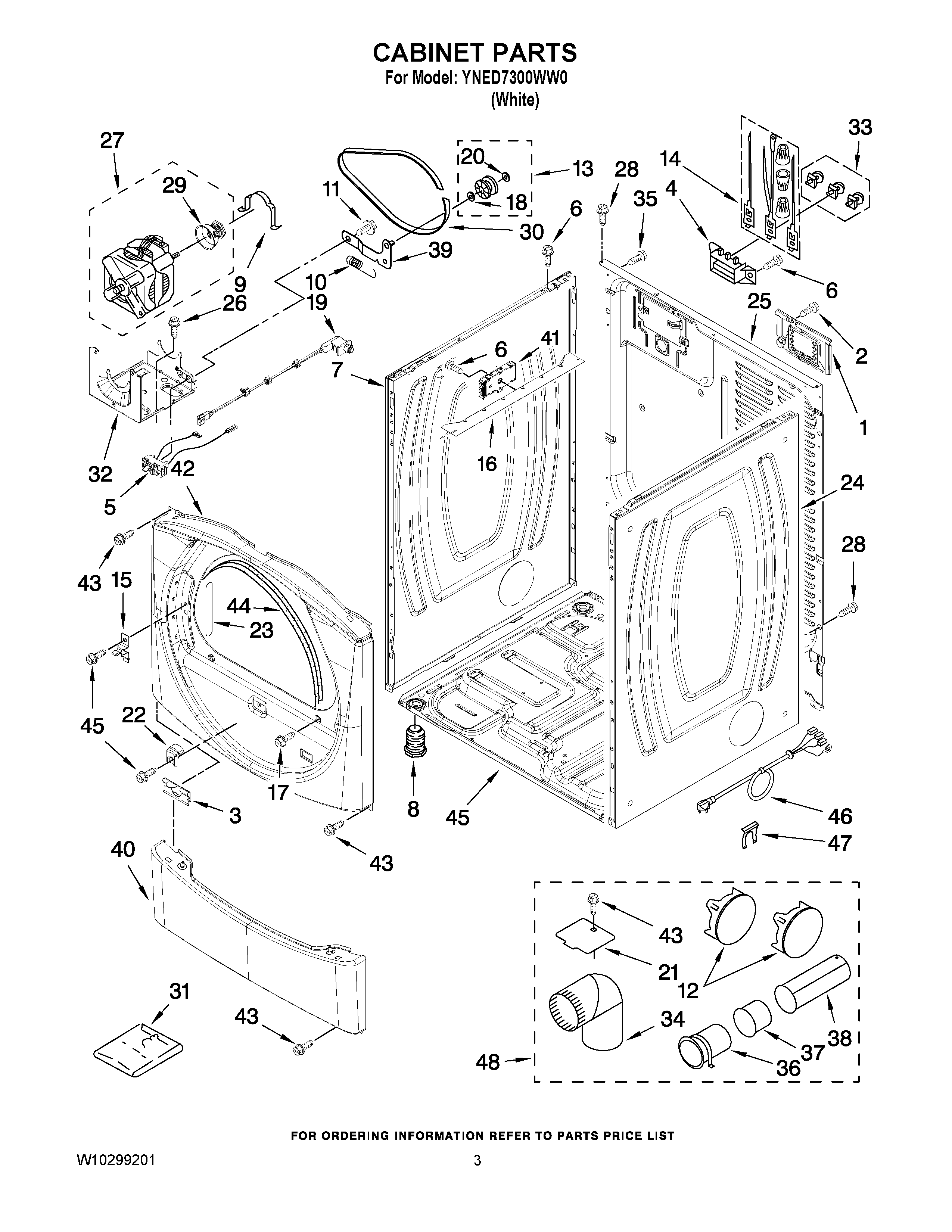

YNED7300WW0 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10286180
2	Screw, 8-18 x 3/8
3	MAY 8519459
4	MAY 3397659
5	MAY W10246525
6	SCREW,8-18 X 3/8
7	MAY 8565054
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 49252
13	ASSEMBLY, PULLEY
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	STRIKE, DOOR
16	Bracket, Control
17	SCREW
18	MAY W10121334
19	SWITCH, ASSEMBLY DOOR
20	WASHER, TRI RING
21	MAY 8066115
22	MAY 8565083
23	PLUG-STRIP FRONT PANEL
24	MAY 8565048
25	MAY 8565059
26	SCREW
27	Motor Assembly 60 HZ.
28	SCREW, 10-16 X 1/2
29	Pulley 60 HZ.
30	MAY 3387610
31	MAY 8572546
32	MAY W10242878
33	MAY 279393
34	MAY 49026
35	MAY 8533974
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	MAY 3388674
40	MAY 8540621
41	MAY W10235613
42	FRONT PANEL (INCLUDE, ITEM. 44 )
43	SCREW
44	MAY 3387242
45	MAY 8565046
46	MAY 8579325
47	STRAIN-RELIEF CLIP
48	MAY 279818
