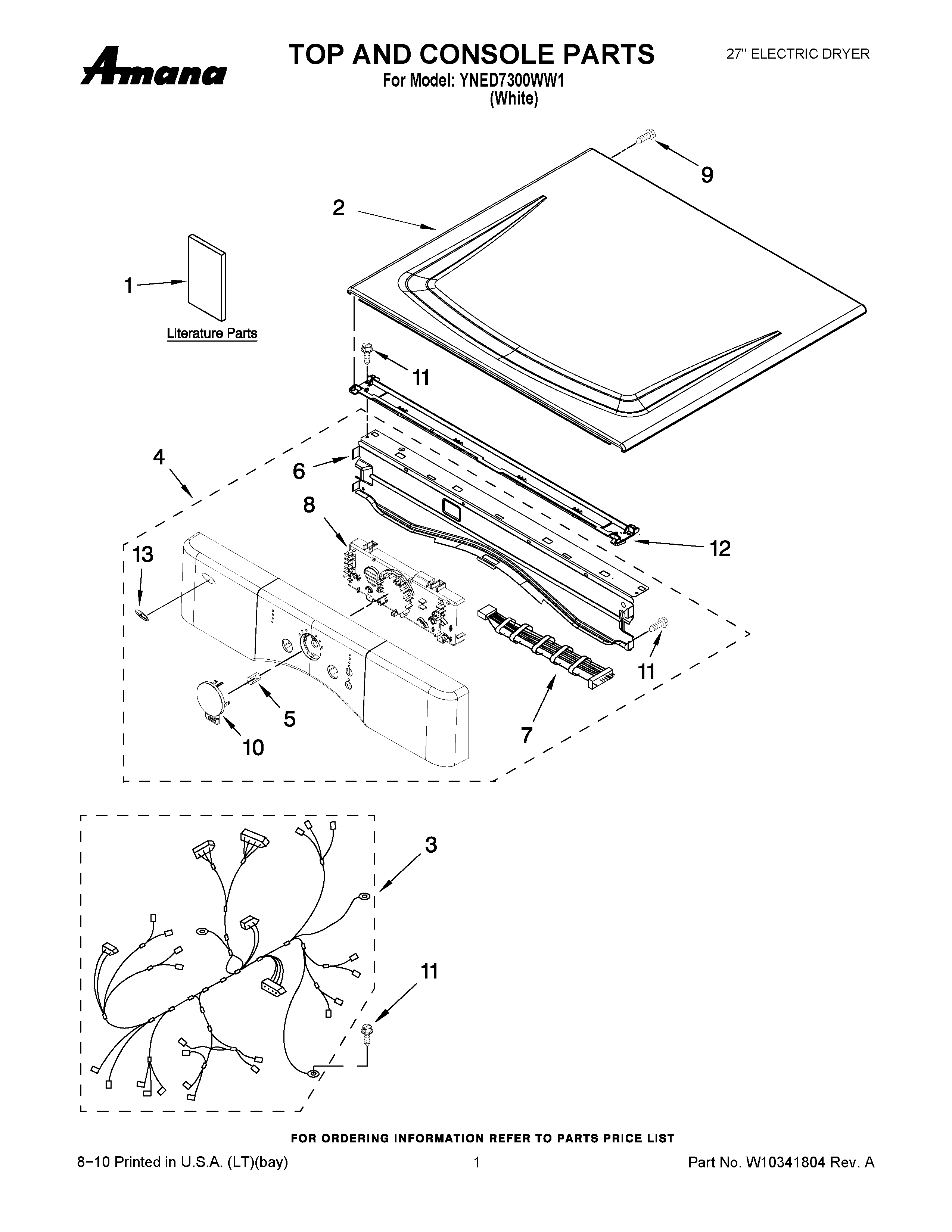

YNED7300WW1 01 – TOP AND CONSOLE PARTS

YNED7300WW1 01 – TOP AND CONSOLE PARTS

Written by

in

YNED7300WW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10238796
1INSTALLATION, INSTRUCTION
1MAY W10240875
2Top
3MAY W10251444
4MAY W10215746
5CYCLE BUTTON, SPRING
6MAY 8565237
7MAY W10259049
8ASSEMBLY, USER INTERFACE
9SCREW, TOP
10CYCLE BUTTON
11SCREW
12CHANEL, WATER
13Medallion
