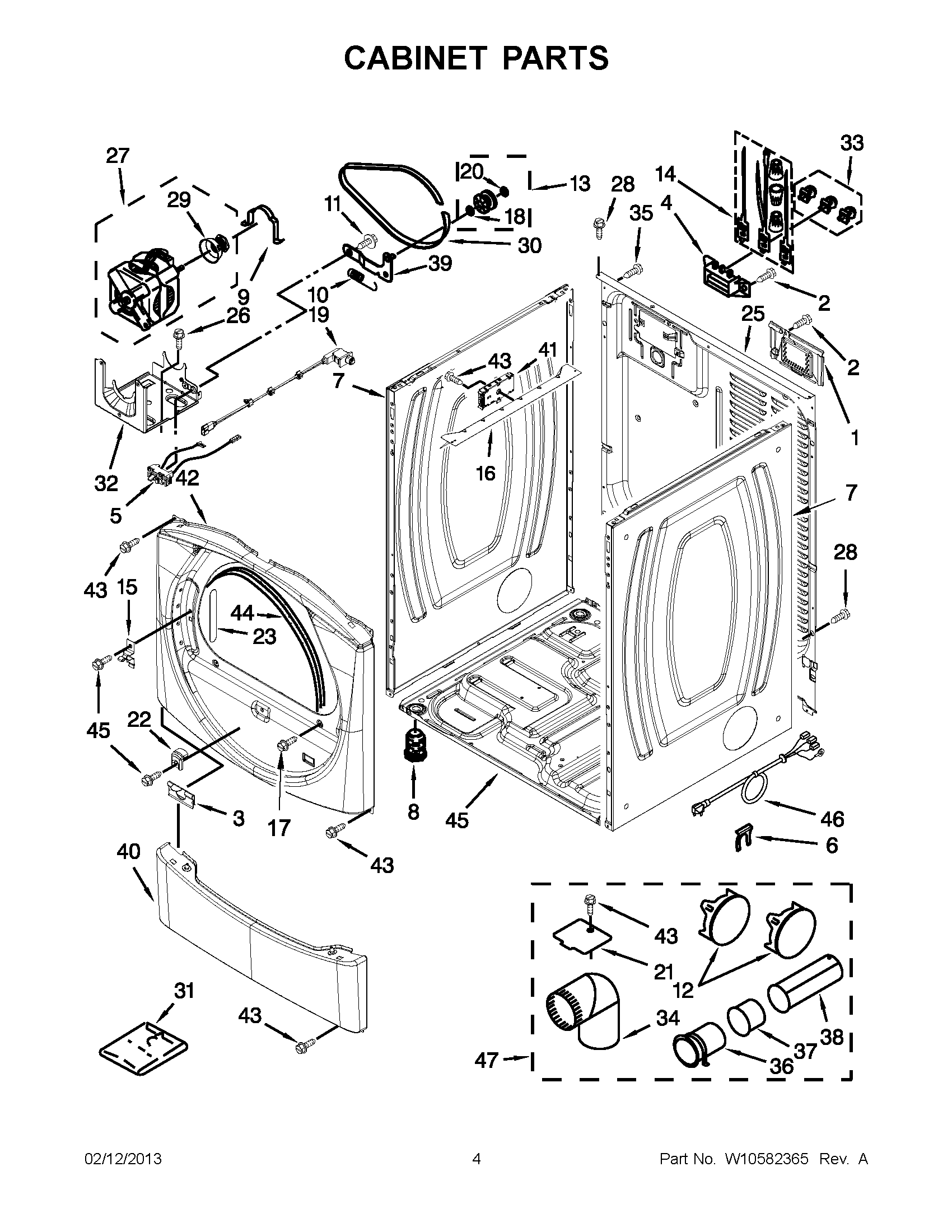

YNED7300WW2 02 – CABINET PARTSadmin2025-04-26T08:51:49+00:00YNED7300WW2 02 – CABINET PARTS
Products
| Position | Product |
|---|
| NI | MAY 279810 |
| 1 | MAY W10286180 |
| 2 | Screw, 8-18 x 3/8 |
| 3 | MAY 8519459 |
| 4 | MAY 3397659 |
| 5 | MAY W10411936 |
| 6 | STRAIN-RELIEF CLIP |
| 7 | MAY W10542714 |
| 8 | MAY 3392100 |
| 9 | CLAMP, MOTOR MOUNT |
| 10 | MAY W10446781 |
| 11 | SCREW |
| 12 | PLUG, MULTIVENT (MIDNIGHT GREY) |
| 13 | MAY W10468057 |
| 14 | TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT) |
| 15 | STRIKE, DOOR |
| 16 | Bracket, Control |
| 17 | SCREW |
| 18 | MAY W10121334 |
| 19 | DOOR SWITCH ASSEMBLY |
| 20 | WASHER, TRI RING |
| 21 | MAY W10354249 |
| 22 | MAY 8565083 |
| 23 | PLUG-STRIP FRONT PANEL |
| 25 | MAY 8565059 |
| 26 | SCREW |
| 27 | MAY W10317045 |
| 28 | SCREW, 10-16 X 1/2 |
| 29 | MAY W10402907 |
| 30 | MAY 3387610 |
| 31 | MAY 8572546 |
| 32 | MAY W10242878 |
| 33 | MAY 279393 |
| 34 | MAY W10416072 |
| 35 | MAY 8533974 |
| 36 | PIPE, EXHAUST (MEDIUM) |
| 37 | MAY 8563750 |
| 38 | PIPE, EXHAUST (LONG) |
| 39 | MAY 3388674 |
| 40 | MAY 8540621 |
| 41 | MAY W10450081 |
| 42 | PANEL, FRONT (WHITE) |
| 43 | SCREW |
| 44 | MAY 3387242 |
| 45 | MAY 8565046 |
| 46 | MAY 8579325 |
| 47 | MAY 279818 |
