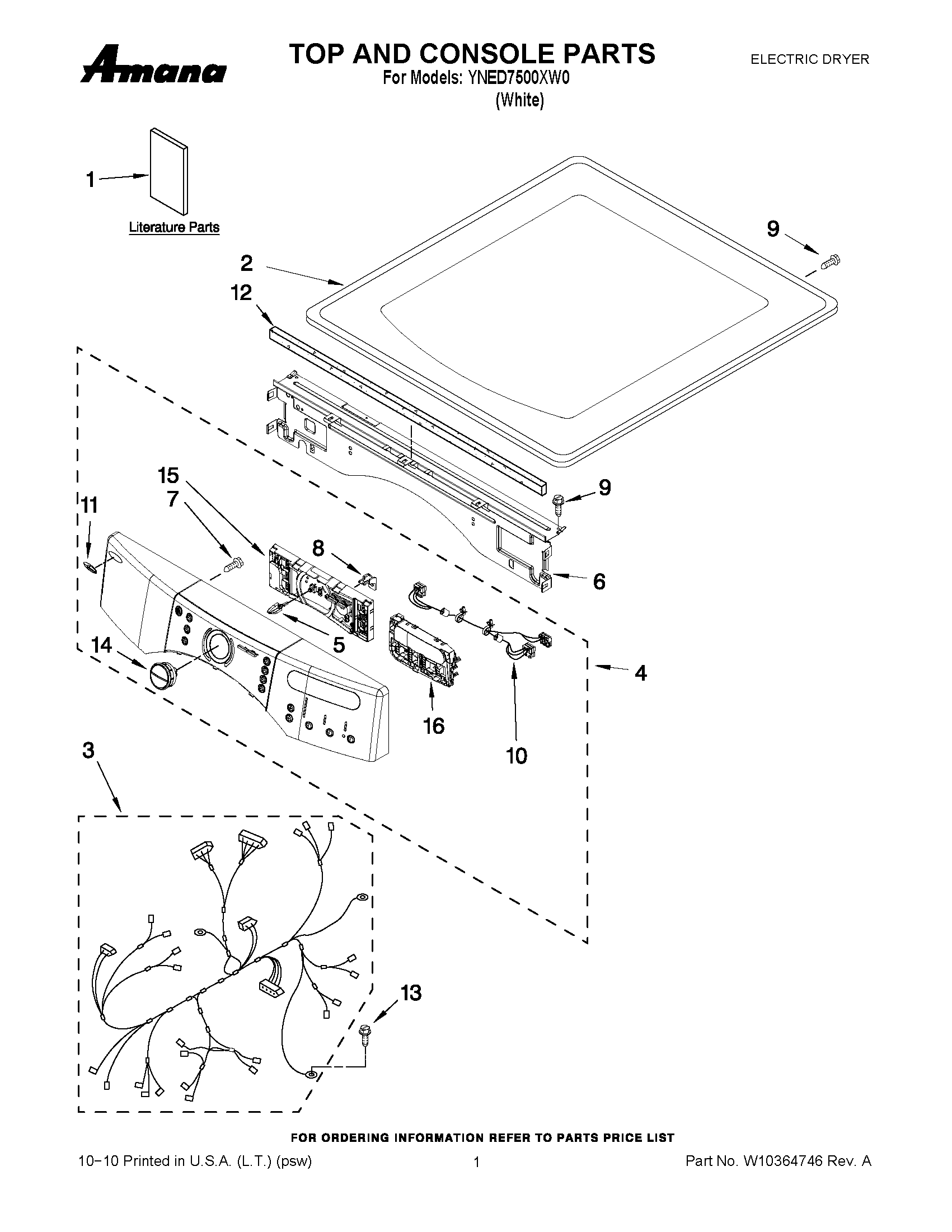

YNED7500XW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10239303
1MAY W10298850
1INSTALLATION, DIAGNOSTIC GUIDE
2MAY 3980634
3MAY W10111064
4PANEL, CONSOLE (INCLUDES BUTTONS, CONTROL BOARD & ITEM. 11 )
5MAY W10023220
6BRACKET, CONSOLE (INCLUDE, ITEM. 12 )
7SCREW, TOP
8Clip, Harness
9SCREW
10MAY W10242905
11Medallion
12Seal, Foam Console Bracket
13Screw
14KNOB, ASSEMBLY
15USER-INTERFACE CENTER (INCLUDE, ITEM. 5 )
16MAY W10280652
