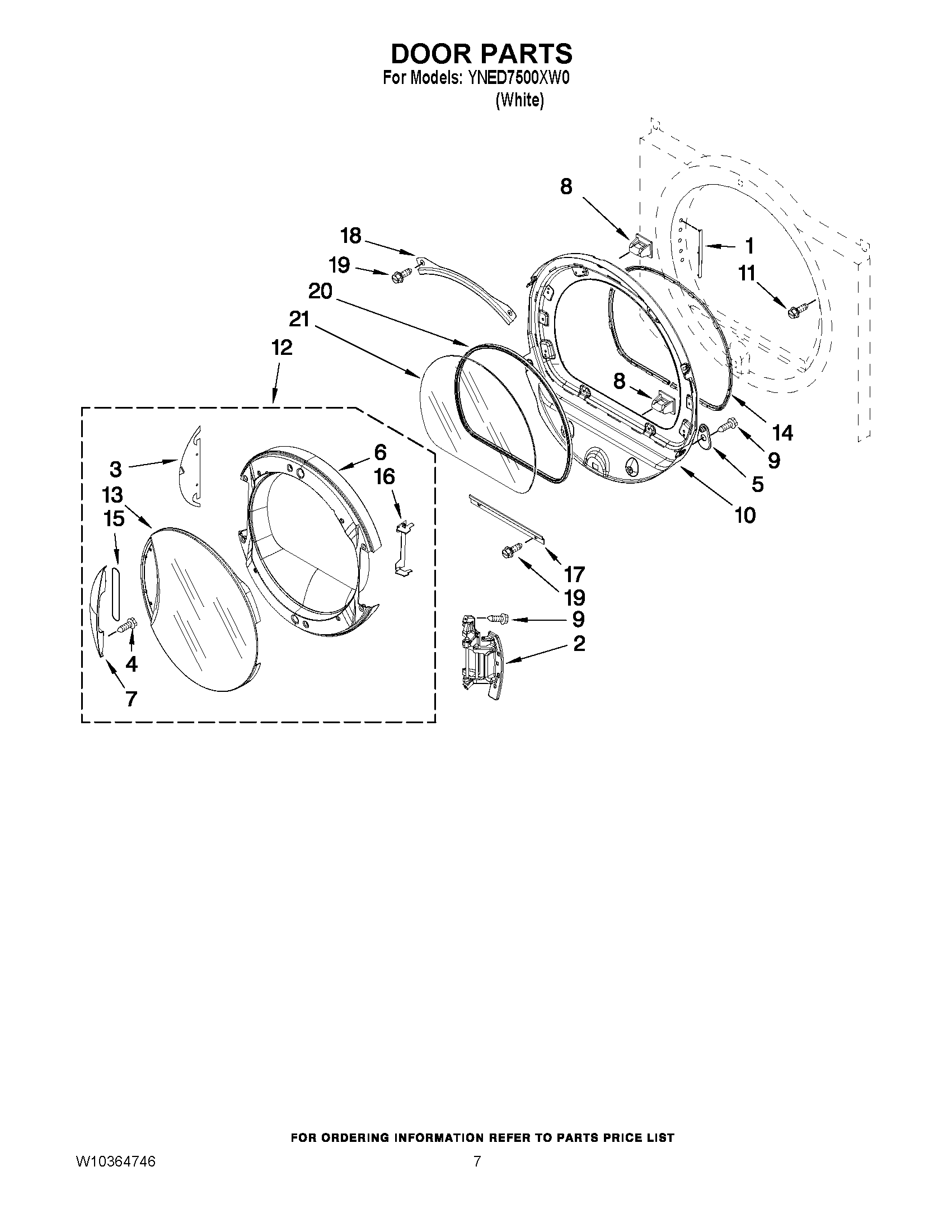

YNED7500XW0 04 – DOOR PARTS

Products

Position	Product
1	MAY W10085230
2	MAY W10310366
3	MAY W10180095
4	Screw
5	MAY W10048910
6	MAY W10180094
7	HANDLE, DOOR (INCLUDE, ITEM. 15 )
8	Catch, Door
9	SCREW
10	DOOR ASSEMBLY (INNER) (INCLUDE, ITEM. 1 & 8 )
11	MAY 355515
12	MAY W10180090
13	MAY W10180093
14	Seal Door Assembly (Upper)
15	MAY 8580117
16	MAY W10180096
17	MAY 8519354
18	MAY 8519356
19	Screw, 10-16 x 1/2
20	MAY 8579662
21	Glass-Window
