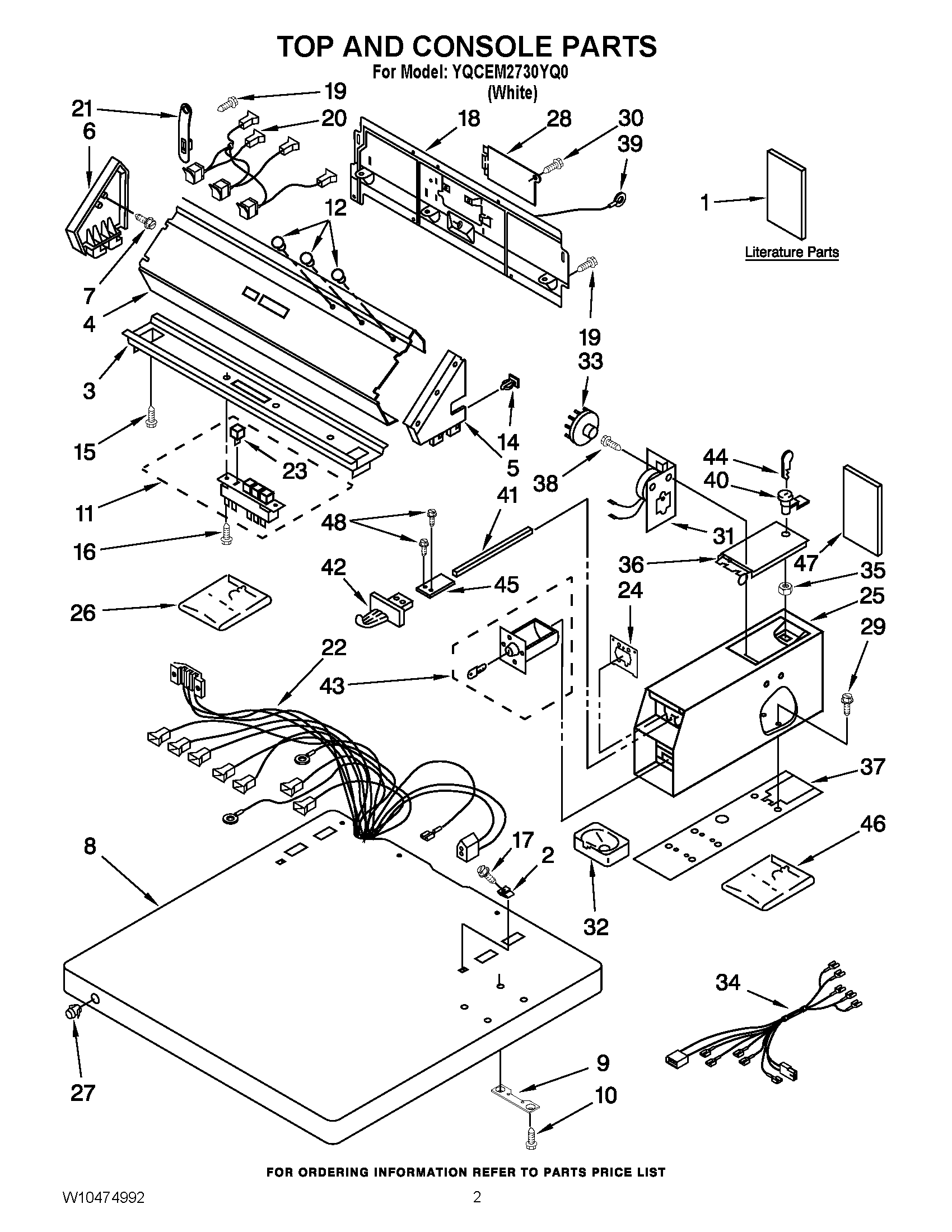

YQCEM2730YQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
NI	WPL 8316265
NI	Inserts (Not Shown
1	SERVICE PARTS LIST
1	Instructions, Installation
1	Wiring Diagram
2	WP357213 Whirlpool Hinge Stopper
3	Bracket, Control
4	PANEL, CONTROL
5	Cap, End (R.H.)
6	W11686050 Whirlpool Drive Motor
7	WPW10109200 Whirlpool Screw
8	Top
9	3347825 Whirlpool Plate
10	W10841059 Whirlpool Screw
12	WP3348109 Whirlpool Light Lens
14	WP689559 Whirlpool Nut
16	WP489128 Whirlpool Refrigerator Screw
17	WP8281182 Whirlpool Screw Assembly
18	W11089934 Whirlpool Rear Panel
19	WP488729 Whirlpool Refrigerator Door Screw
20	Lights, Indicator Assembly
21	WP8568314 Whirlpool Strap
22	Harness, Main
23	SWITCH-PB
24	279950 Whirlpool Funnel
25	WPW10461200 Whirlpool Case
26	WP3406965 Whirlpool Coin Chute
27	WP387371 Whirlpool Plug
28	WPW10119283 Whirlpool Terminal Cover
29	W11715721 Whirlpool Screw Assembly
30	WP90767 Whirlpool Screw
31	W11451464 Whirlpool Dryer Timer
32	WP385421 Whirlpool Coin Operated Laundry Funnel
33	WP343777 Whirlpool Cam
33	WP3387974 Whirlpool Cam
34	3401682 Whirlpool Wire Harness
35	WP90406 Whirlpool Nut
36	W11283272 Whirlpool Washer Dryer Meter Case Access Door
37	WP3954812 Whirlpool Cushion
38	339805 Whirlpool Screw
39	GROUND WIRE
40	W11315637 Whirlpool Lock Assembly
41	WP8576635 Whirlpool Bolt
42	W11126319 Whirlpool Washer Dryer Coin Chute
43	W11190039 Whirlpool Coin Box Assembly
44	CABINET (NOT A SERVICEABLE PART)
45	3390424 Whirlpool Extension
46	WPL 8316524
47	WPL 8316532
48	WP3400029 Whirlpool Dishwasher Nut
