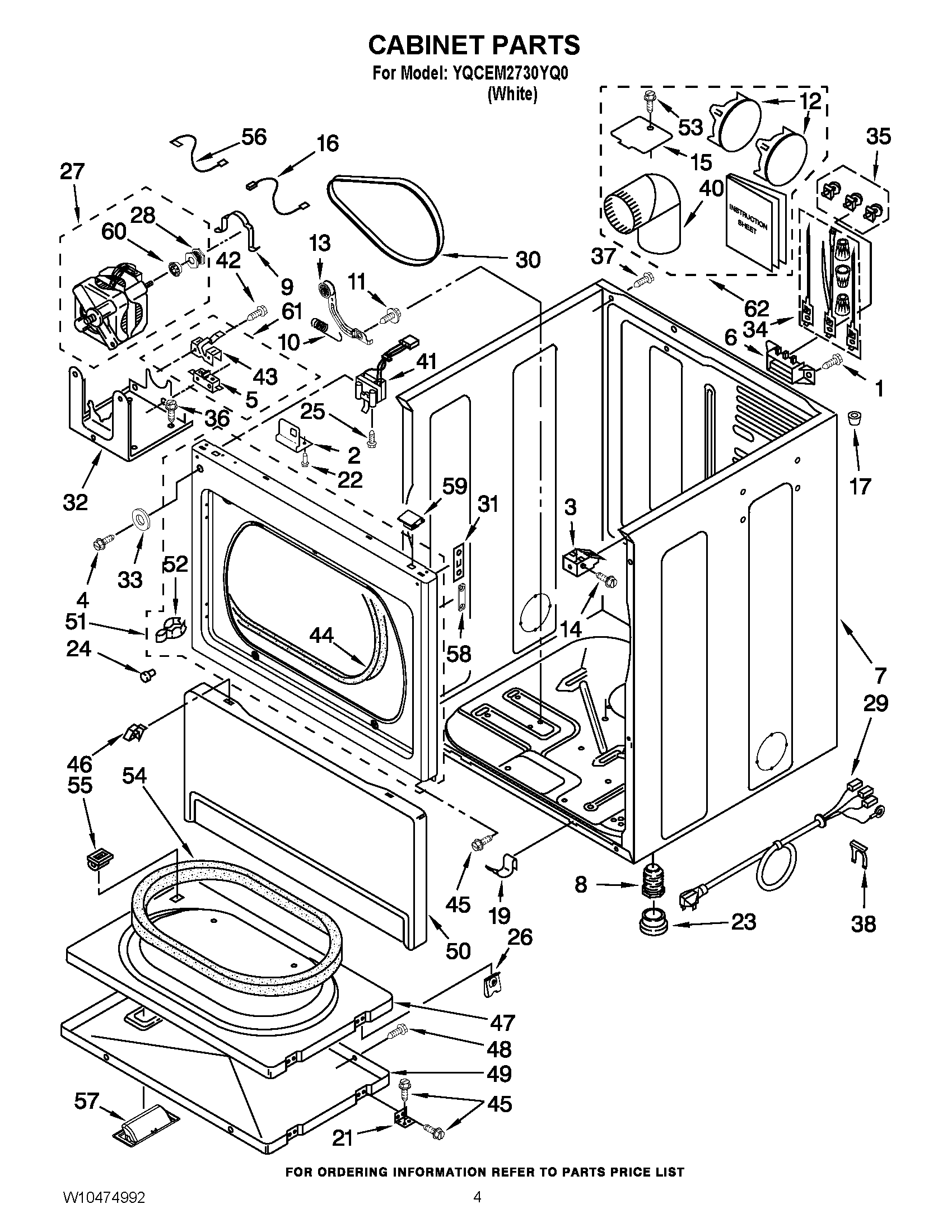

YQCEM2730YQ0 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
NI	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
1	WP308685 Whirlpool Microwave Screw
2	Bracket, Lock
3	3391846 Whirlpool Clip
4	WP3373329 Whirlpool Dishwasher Screw
5	279782 Whirlpool Lid Switch
6	WP3397659 Whirlpool Terminal Block
7	W11417441 Whirlpool Cabinet
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
13	WPW10344193 Whirlpool Idler Pulley
14	681615 Whirlpool Screw
15	WPW10354249 Whirlpool Cover
16	W10167612 Whirlpool Wire
17	WPL 356674
19	WPW10291934 Whirlpool Clip
21	WPW10279703 Whirlpool Hinge Assembly
22	Rivet (2)
23	WP3391943 Whirlpool Foot Boot
24	693152 Whirlpool Bumper
25	WP3395530 Whirlpool Screw
26	Nut, ``U`` (4)
27	W10841144 Whirlpool Drive Motor
28	WP8066184 Whirlpool Dryer Motor Pulley
29	CORD-POWER
30	661570V Whirlpool Dryer Drum Belt
31	WP3390902 Whirlpool Clip
32	WP3387118 Whirlpool Base Assembly
33	Washer
34	279318 Whirlpool Terminal
35	279393 Whirlpool Terminal Block Screw and Nut Kit
36	SCREW
37	W10850756 Whirlpool Screw
38	W11712577 Whirlpool Clip
40	4`` - 90 Elbow Optional Parts Not Included Dryer Exhaust Kit (For Side
41	SWITCH-DOOR DRYER
42	WP98129 Whirlpool Screw
43	WP8066120 Whirlpool Lever Assembly
44	WP3387242 Whirlpool Seal
45	WP488627 Whirlpool Refrigerator Screw
46	WP3388229 Whirlpool Dryer Spring Clip
47	280083 Whirlpool Rear Door
48	WP694091 Whirlpool Screw
49	W11663440 Whirlpool Door
50	WP3406797 Whirlpool Toe Panel
51	W10242810 Whirlpool Panel
53	WP693995 Whirlpool Screw
54	WP3390735 Whirlpool Door Seal
55	279570 Whirlpool Dryer Door Latch Kit
56	3398948 Whirlpool Wire
57	3389522 Whirlpool Handle
58	W10191265 Whirlpool Plug
59	WP345670 Whirlpool Lock
60	WP3393657 Whirlpool Belt Retainer
