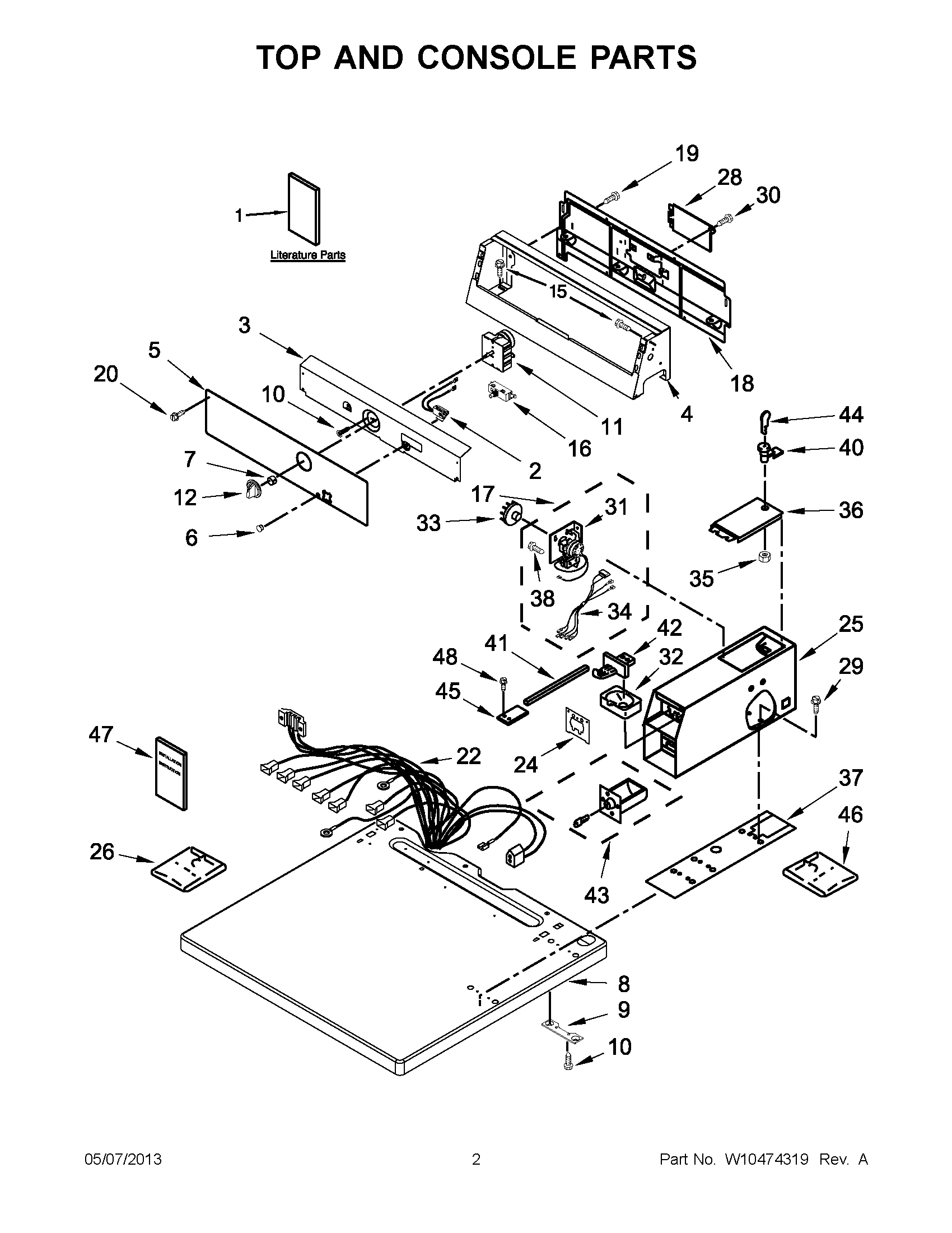

YQCEM2733BQ0 01 – TOP AND CONSOLE PARTS
Written by
in
YQCEM2733BQ0 01 – TOP AND CONSOLE PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
1
INSTALLATION INSTRUCTIONS
1
WIRING DIAGRAM
2
W10662107 Whirlpool Light Bulb
3
W10461070 Whirlpool Bracket
4
W10461094 Whirlpool Control Panel
5
FASCIA
6
WPW10133502 Whirlpool Lens
7
Clip, Knob
8
WPW10136707 Whirlpool Top Assembly
9
3347825 Whirlpool Plate
10
W10841059 Whirlpool Screw
11
WPW10327105 Whirlpool Cycle Switch
12
W10492415 Whirlpool Knob
15
WP90767 Whirlpool Screw
16
W11097274 Whirlpool Push-To-Start Switch
17
WPW10521398 Whirlpool Timer
18
W11089934 Whirlpool Rear Panel
19
WP488729 Whirlpool Refrigerator Door Screw
20
WPW10131119 Whirlpool Screw
22
Harness, Main
24
279950 Whirlpool Funnel
25
WPW10461200 Whirlpool Case
26
WP3406965 Whirlpool Coin Chute
28
WPW10119283 Whirlpool Terminal Cover
29
W11715721 Whirlpool Screw Assembly
30
303776 Whirlpool Dishwasher Screw
31
W11451464 Whirlpool Dryer Timer
32
WP385421 Whirlpool Coin Operated Laundry Funnel
33
WP343777 Whirlpool Cam
33
WP3387974 Whirlpool Cam
34
W10177791 Whirlpool Wire Harness
35
WP90406 Whirlpool Nut
36
W11283272 Whirlpool Washer Dryer Meter Case Access Door
37
WP3954812 Whirlpool Cushion
38
339805 Whirlpool Screw
40
W11315637 Whirlpool Lock Assembly
41
WP8576635 Whirlpool Bolt
42
Inserts (Not Shown
42
W11126319 Whirlpool Washer Dryer Coin Chute
42
WPL 8316265
43
W11190039 Whirlpool Coin Box Assembly
45
3390424 Whirlpool Extension
46
WPL 8316524
47
WPL 8316532
48
WP3400029 Whirlpool Dishwasher Nut
←
