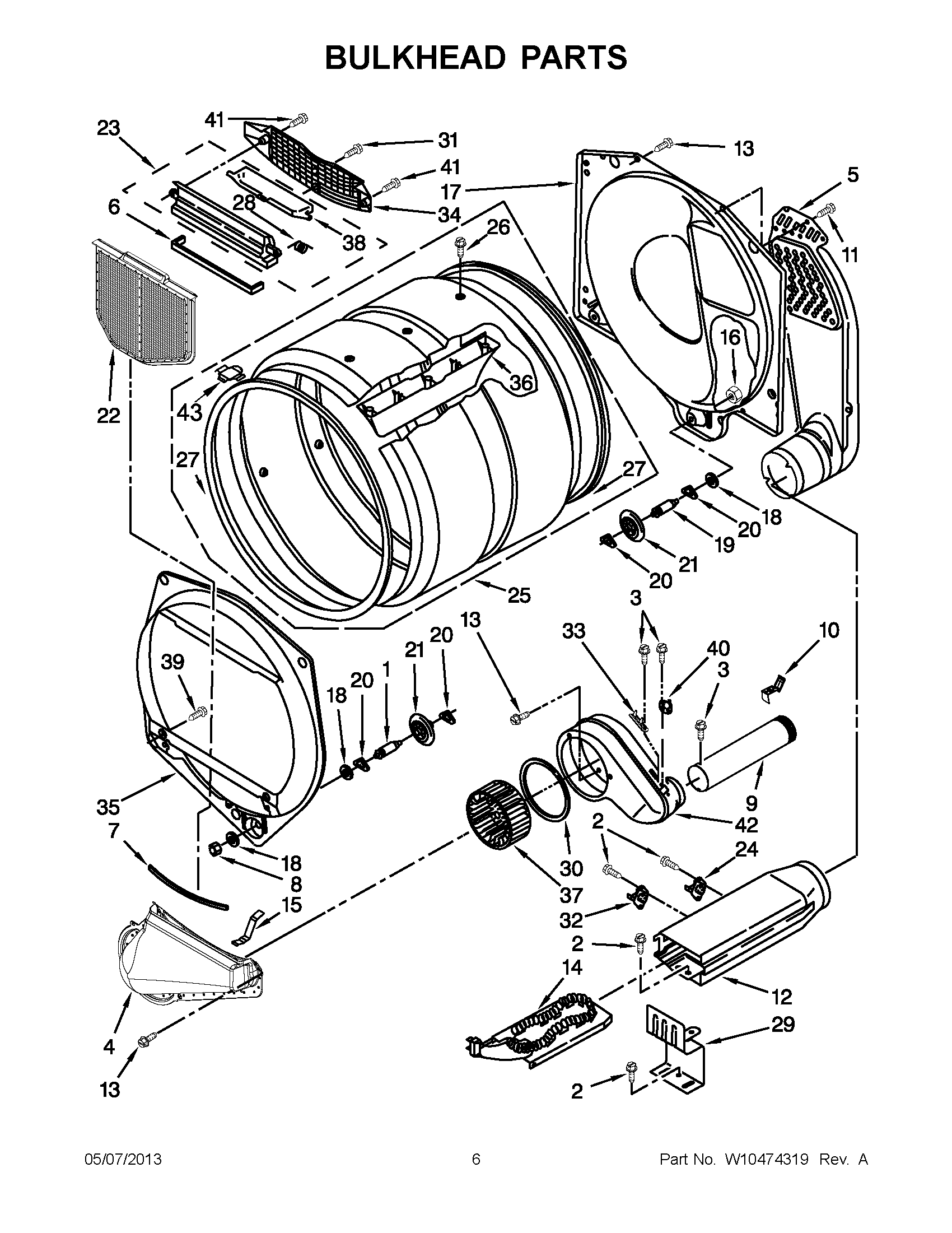

YQCEM2733BQ0 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
3	WP90767 Whirlpool Screw
4	WPW10128606 Whirlpool Lint Duct
5	WP3387911 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	279936 Whirlpool Exhaust Pipe
10	W11684573 Whirlpool Clip Assembly
11	WP693995 Whirlpool Screw
12	W10802681 Whirlpool Box Assembly
13	WP489463 Whirlpool Refrigerator Screw
14	WP3387747 Whirlpool Dryer Heating Element
15	WP8066208 Whirlpool Clip
16	WPW10080190 Whirlpool Nut
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	W10120998 Whirlpool Dryer Lint Screen Filter
23	W11197085 Whirlpool Outer Housing
24	279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
25	W10545923 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	WP3394986 Whirlpool Spring
29	8066099 Whirlpool Bracket
30	WP697770 Whirlpool Blower Cover Plate Seal
31	WP488729 Whirlpool Refrigerator Door Screw
32	THRMST-FIX
33	WP3392519 Whirlpool Dryer Thermal Fuse
34	W11086603 Whirlpool Dryer Link Screen Air Grille
35	WP697557 Whirlpool Bulkhead Assembly
36	WPW10113136 Whirlpool Drum Baffle
37	WHEEL
38	W10181925 Whirlpool Door
39	WP308685 Whirlpool Microwave Screw
40	WPW10131836 Whirlpool Thermostat
41	WP3387230 Whirlpool Screw
42	W10888146 Whirlpool Housing
43	8066086 Whirlpool Plug
