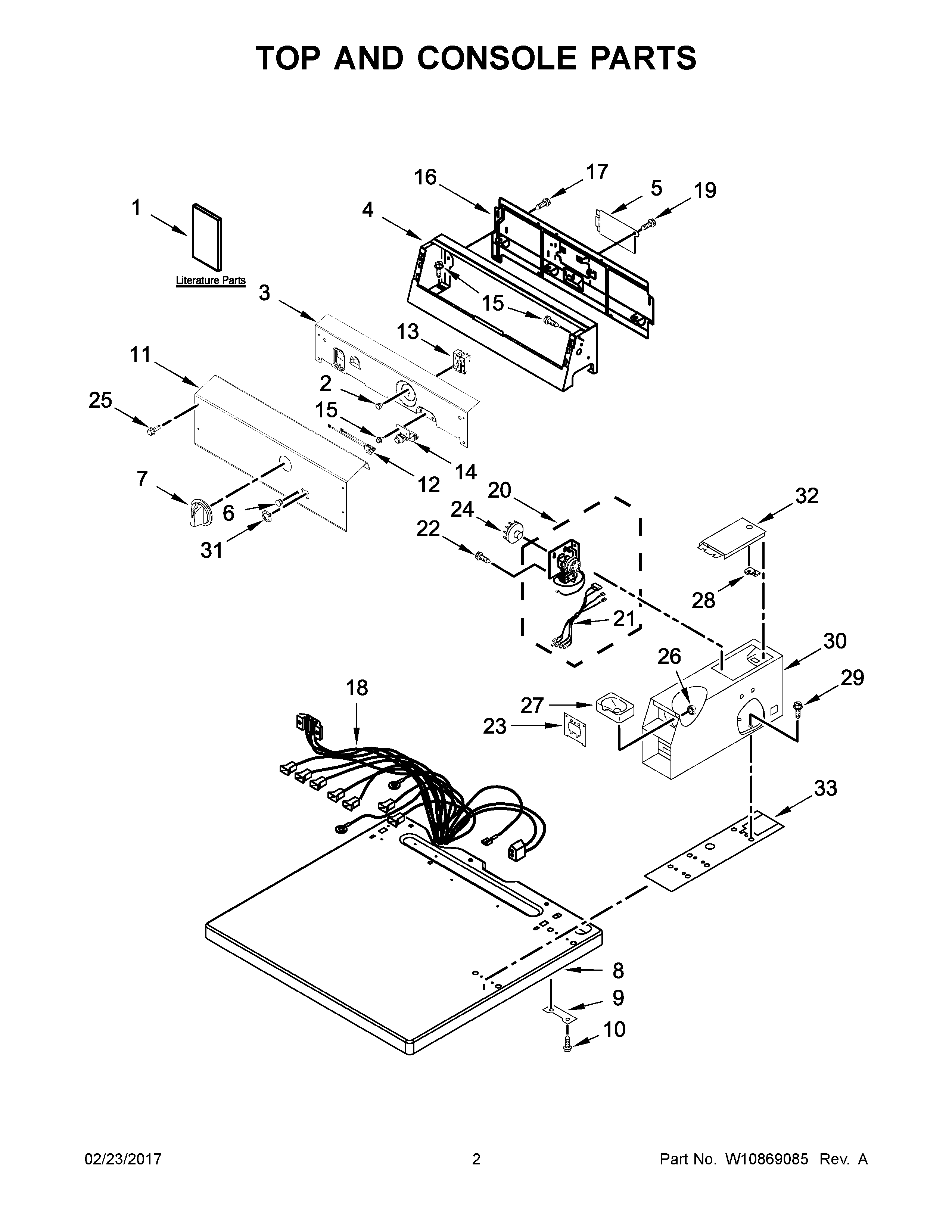

YQCEM2735FQ0 02 – TOP AND CONSOLE PARTS

YQCEM2735FQ0 02 – TOP AND CONSOLE PARTS

Written by

in

YQCEM2735FQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1AWIRING DIAGRAM
2SCREW
3W10461070 Whirlpool Bracket
4W10461094 Whirlpool Control Panel
5WPW10119283 Whirlpool Terminal Cover
6WPW10133502 Whirlpool Lens
7W10492415 Whirlpool Knob
8WPW10136707 Whirlpool Top Assembly
93347825 Whirlpool Plate
10W10841059 Whirlpool Screw
11FASCIA
12W10662107 Whirlpool Light Bulb
13WPW10327105 Whirlpool Cycle Switch
14W11097274 Whirlpool Push-To-Start Switch
15WP90767 Whirlpool Screw
16W11089934 Whirlpool Rear Panel
17WP488729 Whirlpool Refrigerator Door Screw
18W10129843 Whirlpool Wire Harness
19303776 Whirlpool Dishwasher Screw
20WPW10521398 Whirlpool Timer
21W10177791 Whirlpool Wire Harness
22339805 Whirlpool Screw
23279950 Whirlpool Funnel
24AWP343777 Whirlpool Cam
24WP3387974 Whirlpool Cam
25WPW10131119 Whirlpool Screw
26WP3400029 Whirlpool Dishwasher Nut
27WP385421 Whirlpool Coin Operated Laundry Funnel
28WP90406 Whirlpool Nut
29W11715721 Whirlpool Screw Assembly
30WPW10461200 Whirlpool Case
31W10510149 Whirlpool Bezel
32W11283272 Whirlpool Washer Dryer Meter Case Access Door
33WP3954812 Whirlpool Cushion
