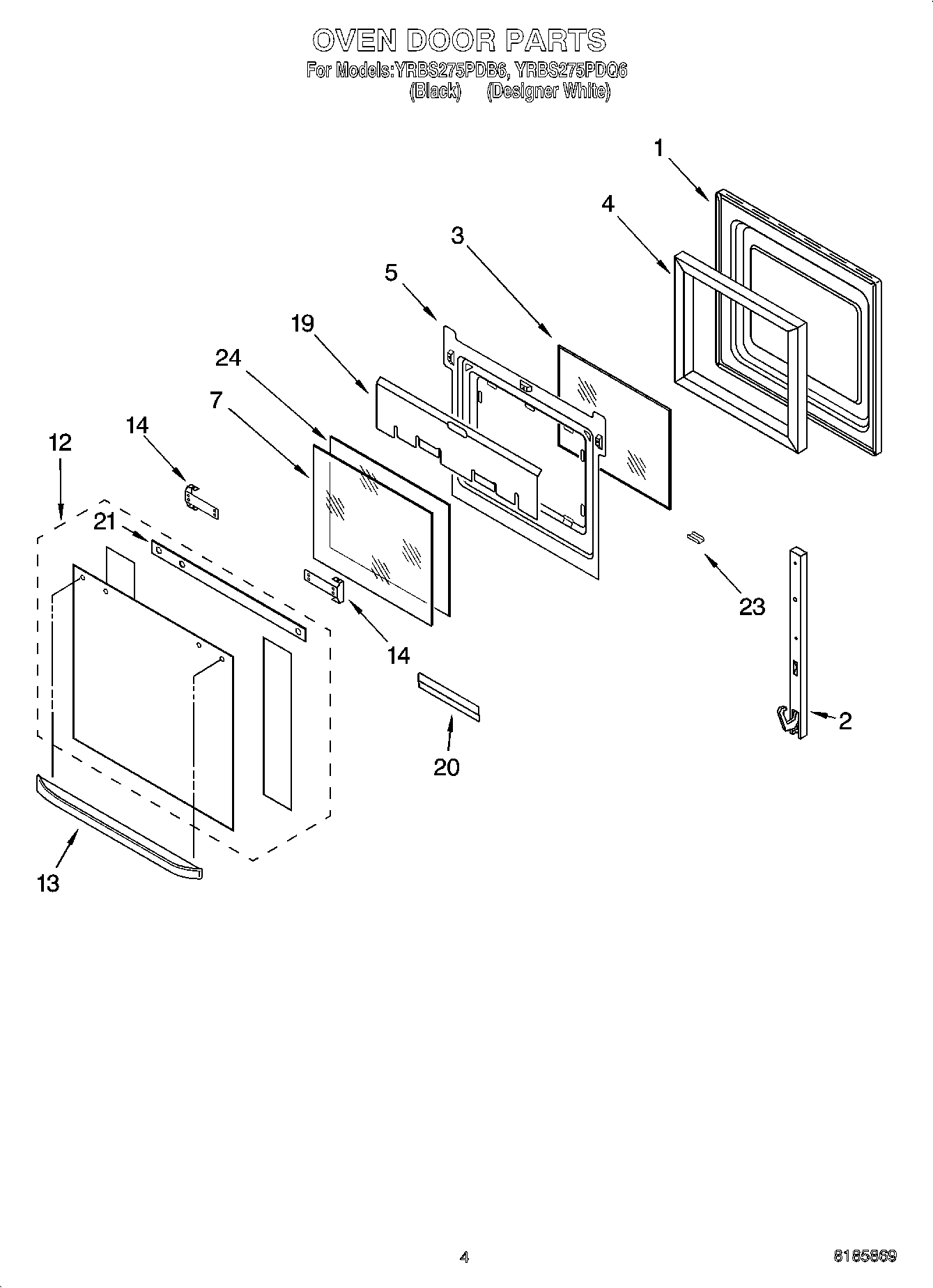

YRBS275PDQ6 03 – OVEN DOOR PARTS

YRBS275PDQ6 03 – OVEN DOOR PARTS

Written by

in

YRBS275PDQ6 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	WP4449743 Whirlpool Screw
2	WP4455524 Whirlpool Door Hinge
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	WP4449257 Whirlpool Door Glass
12	Door Glass, Assy (White Model)
12	Door Glass Assy (Black Model)
13	Handle, Door (Black Model)
13	Handle, Door (White Model)
14	Screw
14	Bracket, Handle
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Top
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
23	WP3400832 Whirlpool Screw
24	Glass, Inner
