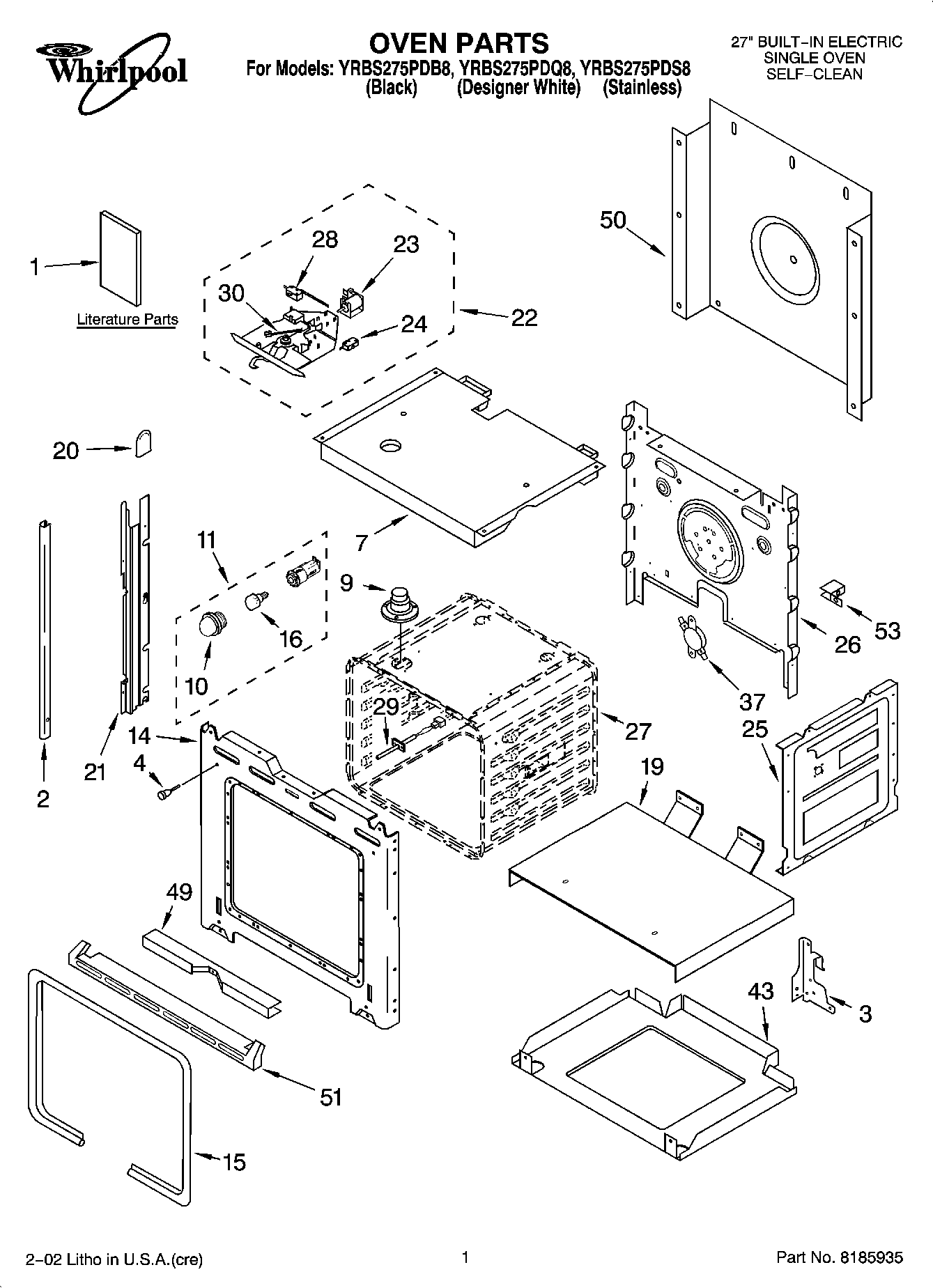

YRBS275PDQ8 01 – OVEN PARTS

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Tech Sheet)
1	Literature Parts (Use & Care Guide (English))
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide (French))
2	Trim, Side (White, Right)
2	Trim, Side (LH White Screw)
2	Trim, Side (LH Black)
2	WP8281236 Whirlpool Screw
2	Trim, Side (RH Black)
3	WP4455605 Whirlpool Left Hand Hinge
3	WP4455606 Whirlpool Right Hand Hinge
4	4448520 Whirlpool Oven Bumper
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
9	SCREW
10	Lens, Light
11	WPW10734065 Whirlpool Light
14	Screw
14	WP4450118 Whirlpool Nut
14	Frame, Front
15	WP4455381 Whirlpool Door Gasket
16	WP4173175 Whirlpool Light Bulb
19	Support, Insulation
20	Cap, Spacer
21	WP4448444 Whirlpool Grommet
21	814372 Whirlpool Oven Rail Mount
21	814371 Whirlpool Oven Rail Mount
22	Latch Assembly
23	Solenoid
24	Microswitch N.C.
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
28	Microswitch
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Spring, Latch
37	WP9759243 Whirlpool Thermostat
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
50	WP4449809 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
51	WPL 4448476
51	Tri
51	WP3400832 Whirlpool Screw
53	WP4449154 Whirlpool Screw
53	WPL 4450364
53	WPL 4449315
53	WPL 4449845
53	FOLLOWING PARTS NOT ILLUSTRATED INSULATION
