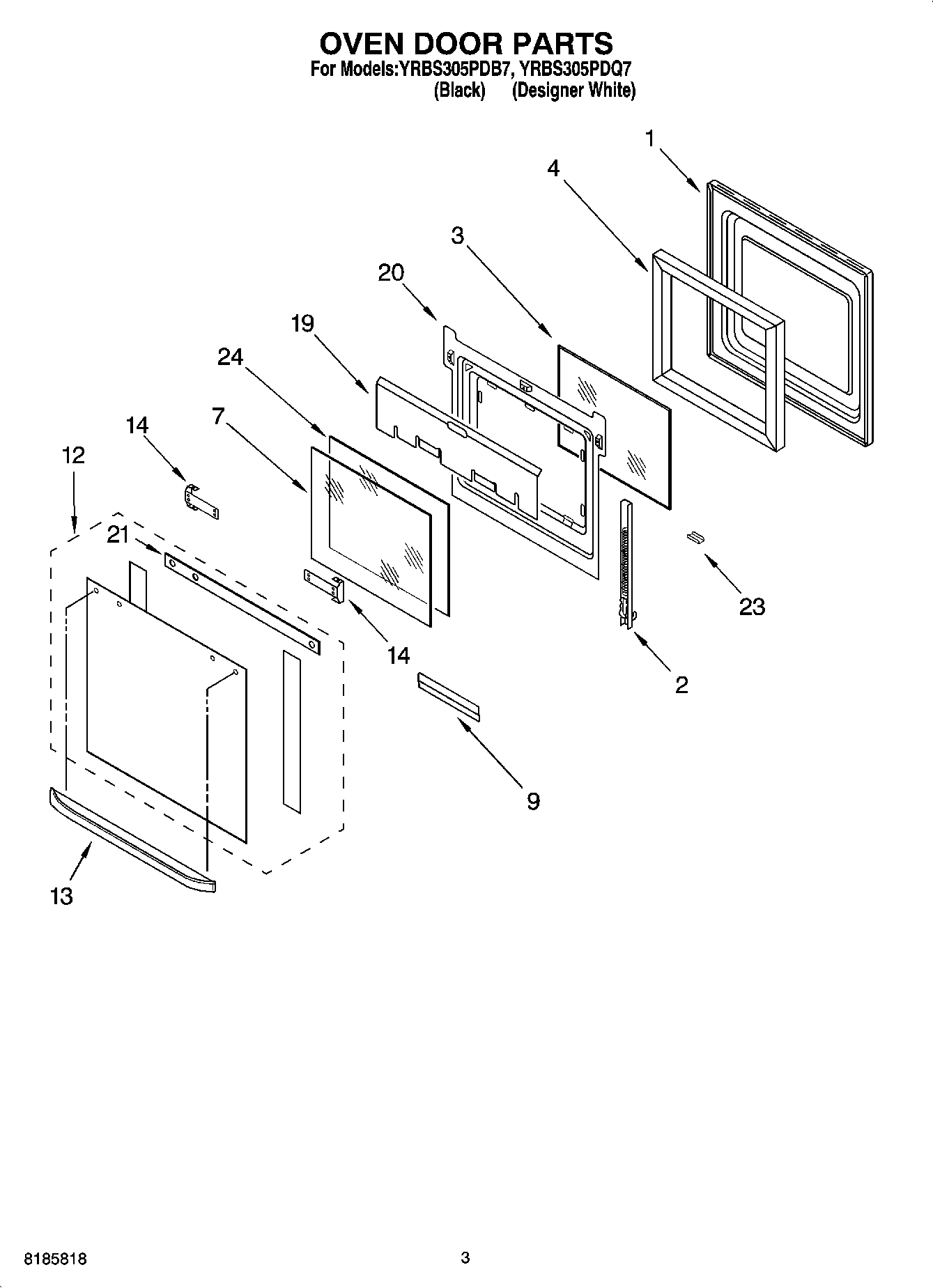

YRBS305PDB7 02 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760571 Whirlpool Door Hinge
2	WP9760572 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
7	WP4449263 Whirlpool Inner Door Glass
9	Retainer, Glass
12	WP9759641 Whirlpool Outer Door Glass
12	Door Glass, Assy (White Model)
13	Door Handle (White Model)
13	Door Handle (Black Model)
14	Bracket, Handle
14	Screw
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
23	WP3400832 Whirlpool Screw
24	Glass, Inner
