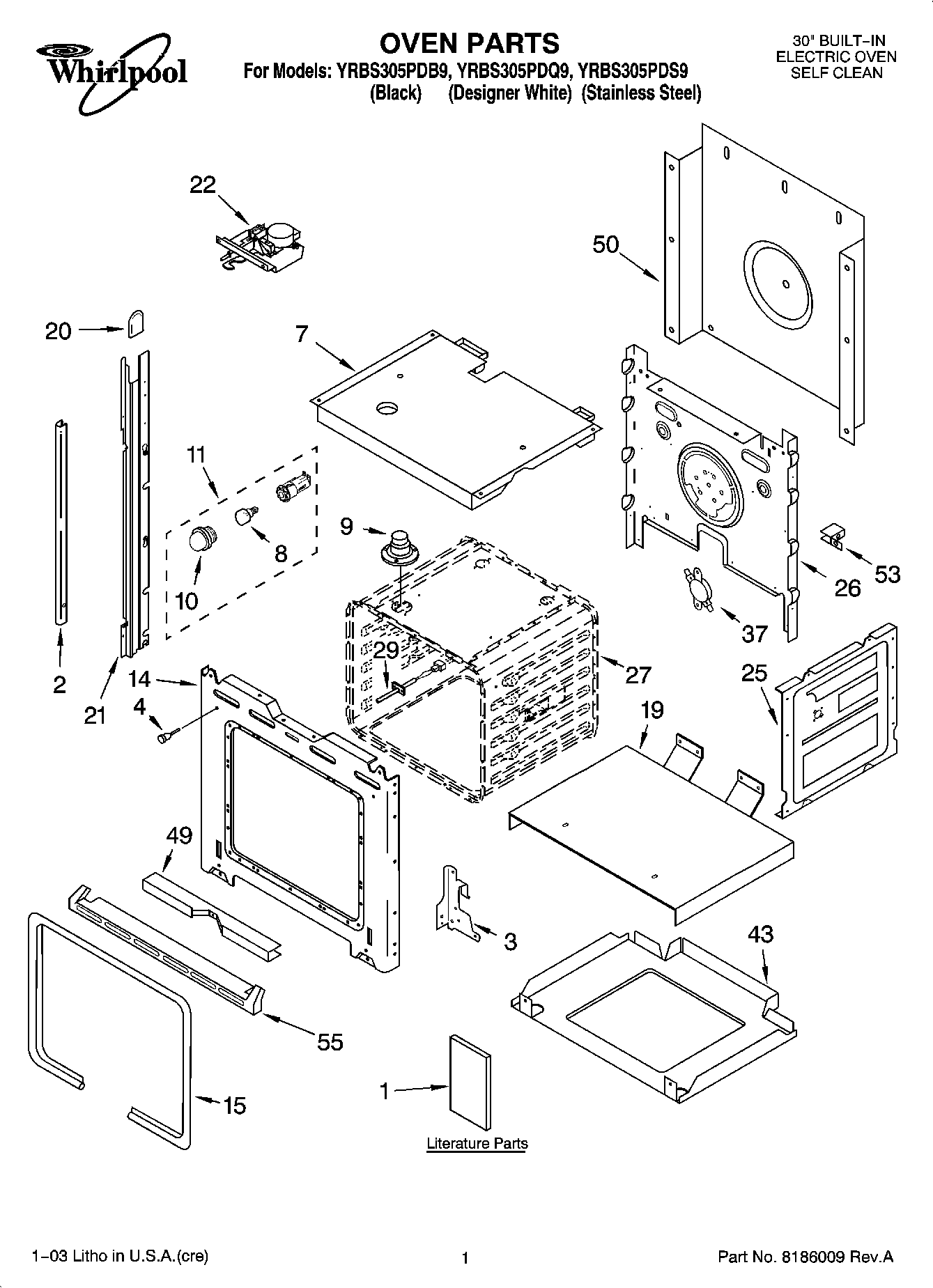

YRBS305PDB9 01 – OVEN PARTS

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide (French))
1	Literature Parts (Tech Sheet)
1	Literature Parts (Use & Care Guide (English))
2	Trim, Side (LH White Screw)
2	Trim, Side (LH Black)
2	Trim, Side (White, Right)
2	Trim, Side (RH Black)
2	WP8281236 Whirlpool Screw
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	4448520 Whirlpool Oven Bumper
7	Top, Chassis
8	WP4173175 Whirlpool Light Bulb
9	W10861715 Whirlpool Vent Tube
9	SCREW
10	Lens, Light
11	WPW10734065 Whirlpool Light
14	Frame, Front
14	WP4450118 Whirlpool Nut
14	Screw
15	W11675844 Whirlpool Oven Gasket
19	Support, Insulation
20	Cap, Spacer
21	WP4448444 Whirlpool Grommet
21	814372 Whirlpool Oven Rail Mount
21	814371 Whirlpool Oven Rail Mount
22	WP9760889 Whirlpool Door Latch
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
29	WPW10131825 Whirlpool Oven Temperature Sensor
37	WP9759243 Whirlpool Thermostat
43	WPL 4455530
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
53	WP4449809 Whirlpool Screw
53	WPL 4449845
55	WPL 4450365
55	W11684730 Whirlpool Insulation
55	WPL 4448477
55	WPL 4448478
55	FOLLOWING PARTS NOT ILLUSTRATED INSULATION
