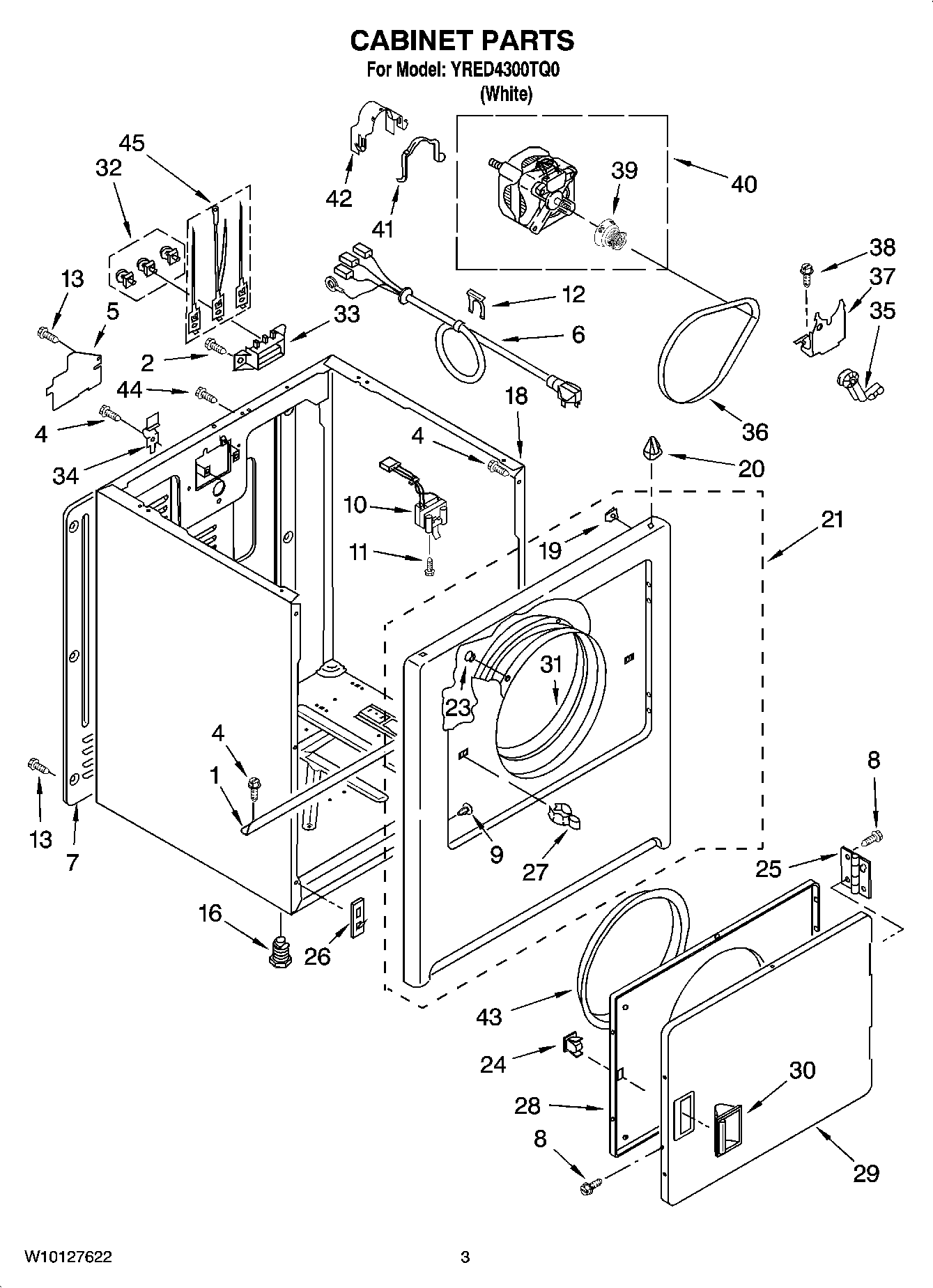

YRED4300TQ0 02 – CABINET PARTS

Products

Position	Product
1	Bracket, Cabinet
2	WP308685 Whirlpool Microwave Screw
4	SCREW
5	Cover, Block
6	CORD-POWER
7	280040 Whirlpool Rear Panel
8	WP488627 Whirlpool Refrigerator Screw
9	WP3404413 Whirlpool Plug
10	WP3406105 Whirlpool Door Switch
11	WP3395530 Whirlpool Screw
12	W11712577 Whirlpool Clip
13	WP693995 Whirlpool Screw
16	49621 Whirlpool Leveling Feet
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel Front Assembly
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
25	WPW10362431 Whirlpool Hinge Assembly
26	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
28	Door, Rear
29	WP3403361 Whirlpool Door
30	WP3405184 Whirlpool White Door Handle
31	279264 Whirlpool Bearing and Seal Kit
32	279393 Whirlpool Terminal Block Screw and Nut Kit
33	WP3397659 Whirlpool Terminal Block
34	WP8066217 Whirlpool Hinge
35	WP691366 Whirlpool Dryer Idler Pulley Assembly
36	341241 Whirlpool Dryer Drum Belt
37	WP348780 Whirlpool Base
38	3400500 Whirlpool Screw
39	WP8066184 Whirlpool Dryer Motor Pulley
40	279827 Whirlpool Dryer Drive Motor
41	WP660658 Whirlpool Clamp
42	WP3404162 Whirlpool Clamp
43	SEAL-DOOR DRYER
44	W10850756 Whirlpool Screw
45	279318 Whirlpool Terminal
