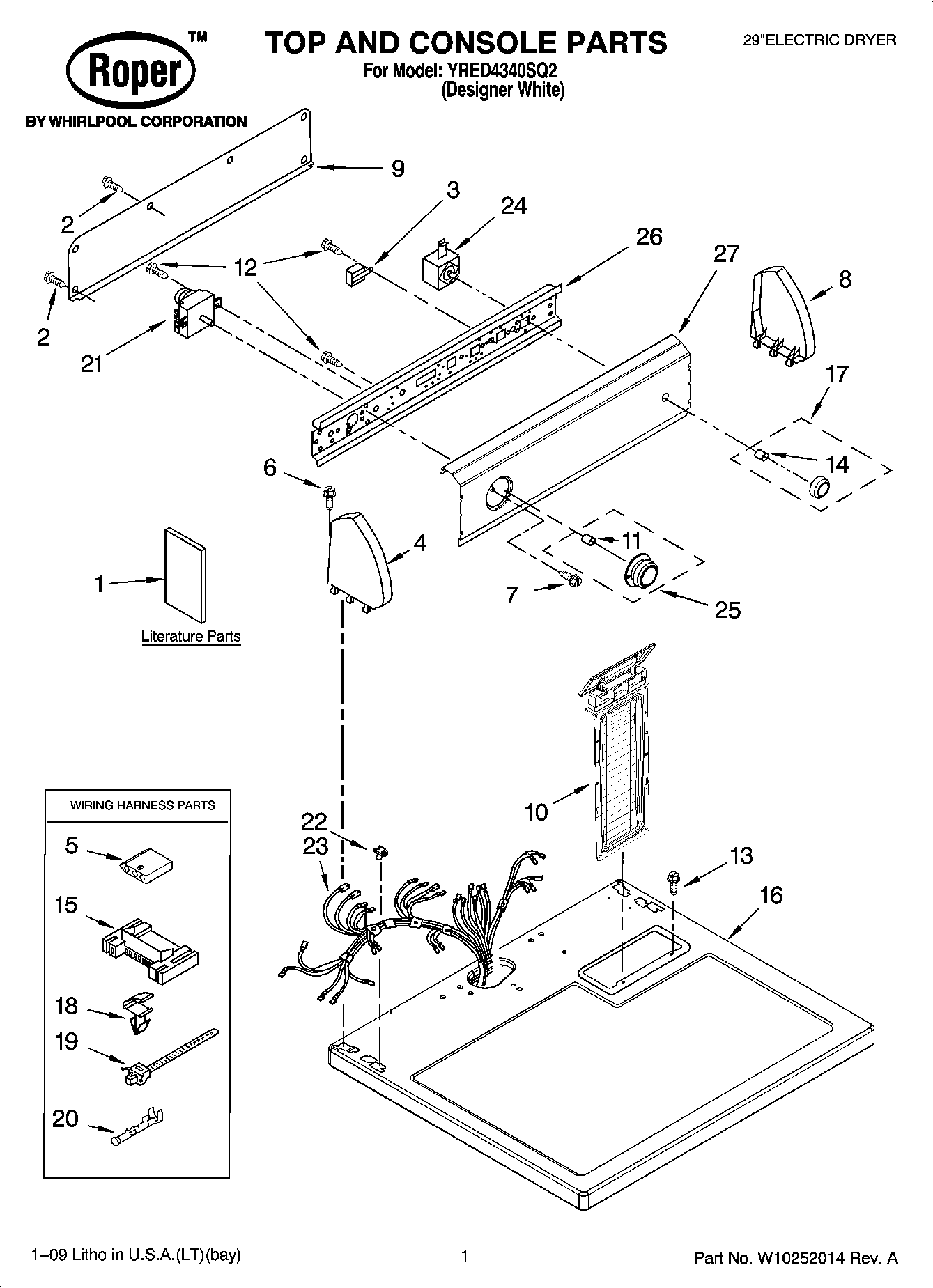

YRED4340SQ2 01 – TOP AND CONSOLE PARTS

YRED4340SQ2 01 – TOP AND CONSOLE PARTS

Written by

in

YRED4340SQ2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Wiring Diagram
1Guide, Use & Care
1Sheet, Cycle Feature
1WPL 677818
1Installation, Instruction
2WP693995 Whirlpool Screw
3WP694419 Whirlpool Buzzer Adjuster
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73400859 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
9W10103406 Whirlpool Rear Panel
10W10874409 Whirlpool Lint Screen Filter
11WP688805 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14WP8536939 Whirlpool Spring Clip
153395683 Whirlpool Connector
16Top
17Knob, Push-To-Start
18WP3394427 Whirlpool Clip
19Tie, Cable
20WP94614 Whirlpool Terminal
21WPW10185972 Whirlpool Timer Assembly
22WP357213 Whirlpool Hinge Stopper
23Harness, Wiring
24WP3977456 Whirlpool Start Switch
25WP8557455 Whirlpool Knob Timer
26Bracket, Control
27Panel, Control
