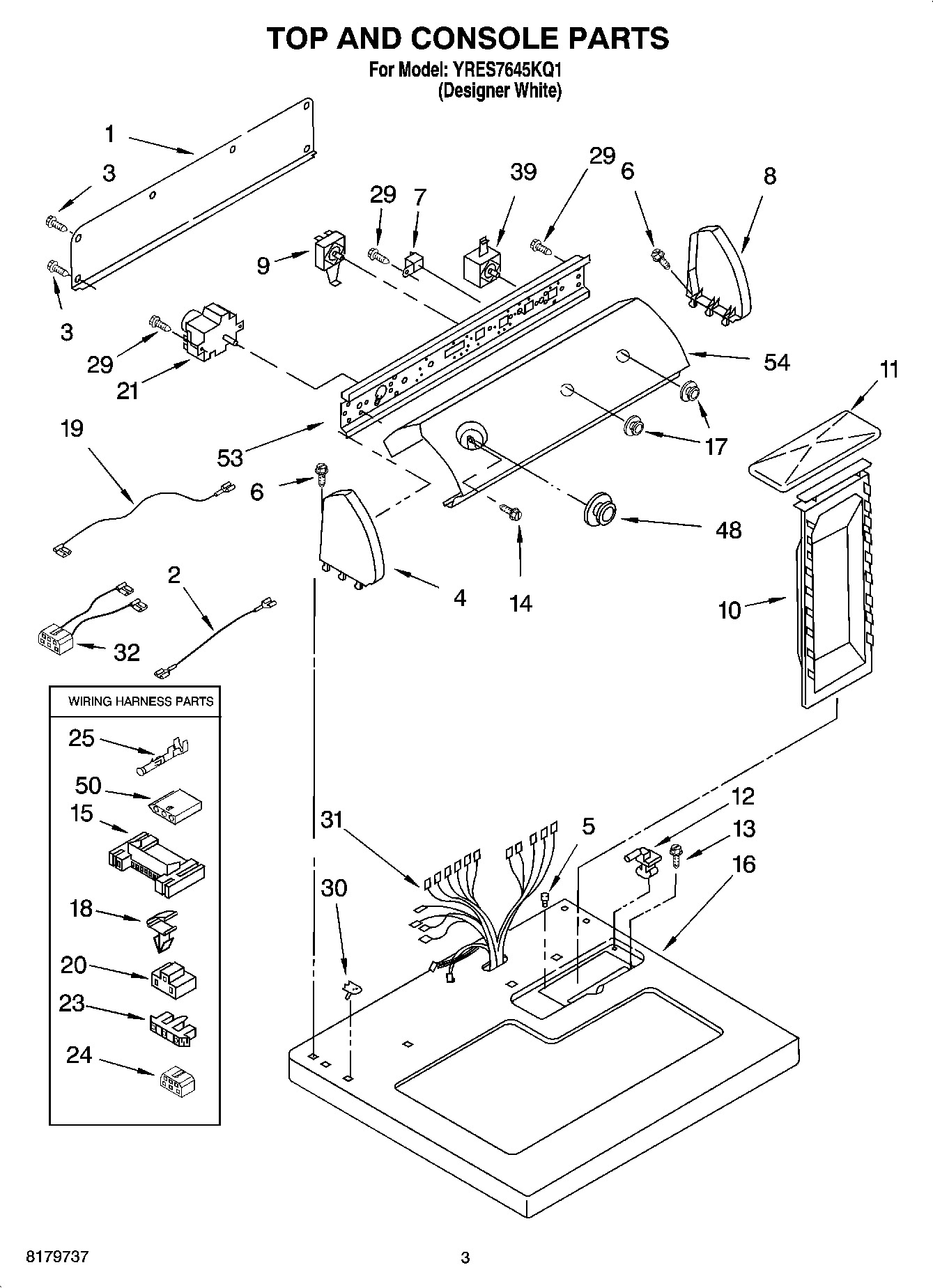

YRES7645KQ1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
1	W10103406 Whirlpool Rear Panel
2	Wire, Jumper (Black)
3	WP693995 Whirlpool Screw
5	Bumper, Lint Lid
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	279960 Whirlpool Endcap Assembly
9	WP3399639 Whirlpool Switch
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top
17	Knob, Control (2)
18	WP3394427 Whirlpool Clip
19	Wire, Jumper (Tan)
20	3401144 Whirlpool Connector
21	WP3979617 Whirlpool Timer
23	Connector, Timer
24	Block, Disconnect
25	WP94614 Whirlpool Terminal
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	8539893 Whirlpool Wire Harness
39	Relay, Push To Start
48	Timer Knob Assembly
50	3936144 Whirlpool Connector
53	Bracket, Control
54	4392065 Whirlpool Dryer Maintenance Kit
54	3404351 Whirlpool Dryer Rack
54	Panel, Control
54	ACCESSORY PARTS
