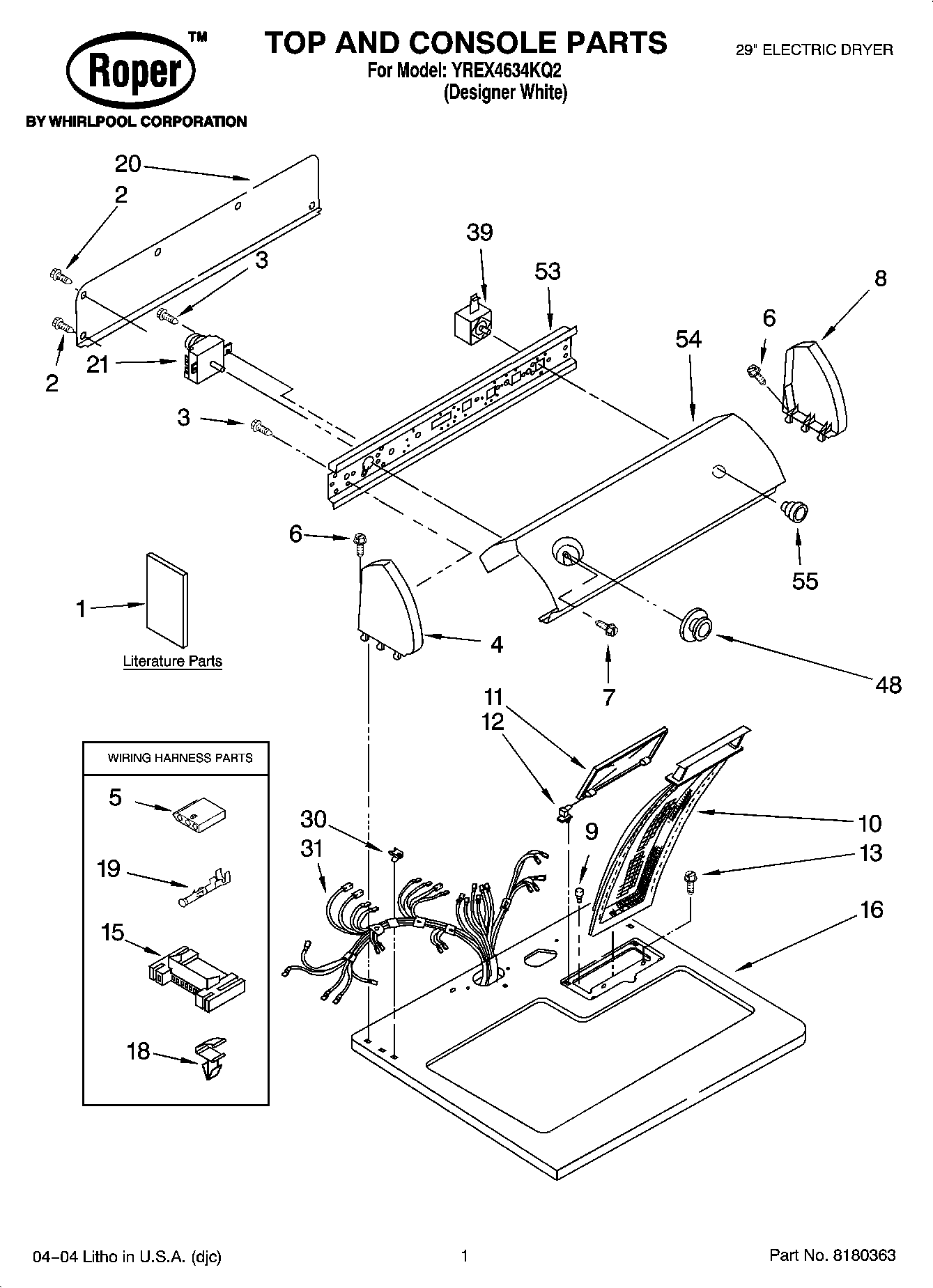

YREX4634KQ2 01 – TOP AND CONSOLE PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
1	Wiring Diagram
1	Literature Parts (Guide, Use & Care)
1	Dryer
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Literature Parts (Label, Energy Guide)
1	Literature Parts (Instructions, Installation)
2	WP693995 Whirlpool Screw
3	WPW10139210 Whirlpool Screw
5	3936144 Whirlpool Connector
6	WP388326 Whirlpool Screw
7	3400859 Whirlpool Screw
8	279960 Whirlpool Endcap Assembly
9	Bumper, Lint Lid
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
15	3395683 Whirlpool Connector
16	Top
18	WP3394427 Whirlpool Clip
19	WP94614 Whirlpool Terminal
20	W10103406 Whirlpool Rear Panel
21	WP8299781 Whirlpool Timer
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	WP3977456 Whirlpool Start Switch
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
55	WP689790 Whirlpool Dryer Rack
55	W11224254 Whirlpool Test Kit
55	4392065 Whirlpool Dryer Maintenance Kit
55	WP3957800 Whirlpool Knob
55	ACCESSORY PARTS
