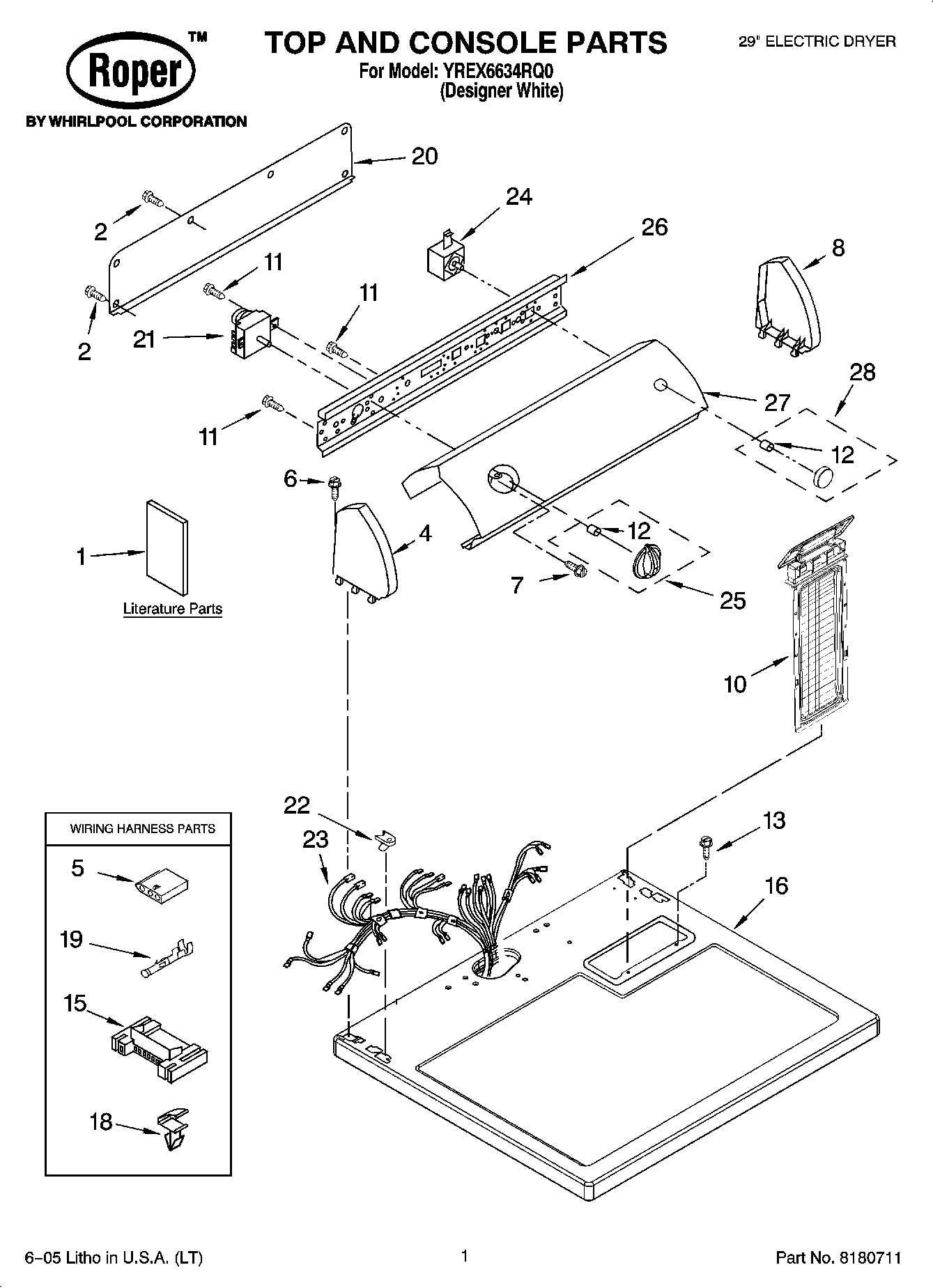

YREX6634RQ0 01 – TOP AND CONSOLE PARTS

YREX6634RQ0 01 – TOP AND CONSOLE PARTS

Written by

in

YREX6634RQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Installation, Instruction
1Wiring Diagram
1Guide, Use & Care
1Sheet, Cycle Feature
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1WPL 677818
2WP693995 Whirlpool Screw
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73400859 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
10W10874409 Whirlpool Lint Screen Filter
11WP90767 Whirlpool Screw
12WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
153395683 Whirlpool Connector
16Top
18WP3394427 Whirlpool Clip
19WP94614 Whirlpool Terminal
20W10103406 Whirlpool Rear Panel
21WP8299781 Whirlpool Timer
22WP357213 Whirlpool Hinge Stopper
23Harness, Wiring
24WP3977456 Whirlpool Start Switch
253957383 Whirlpool Knob
26Bracket, Control
27Panel, Control
288557462 Whirlpool Knob
