YRF115LXVB0 01 – COOKTOP PARTS
Written by
in

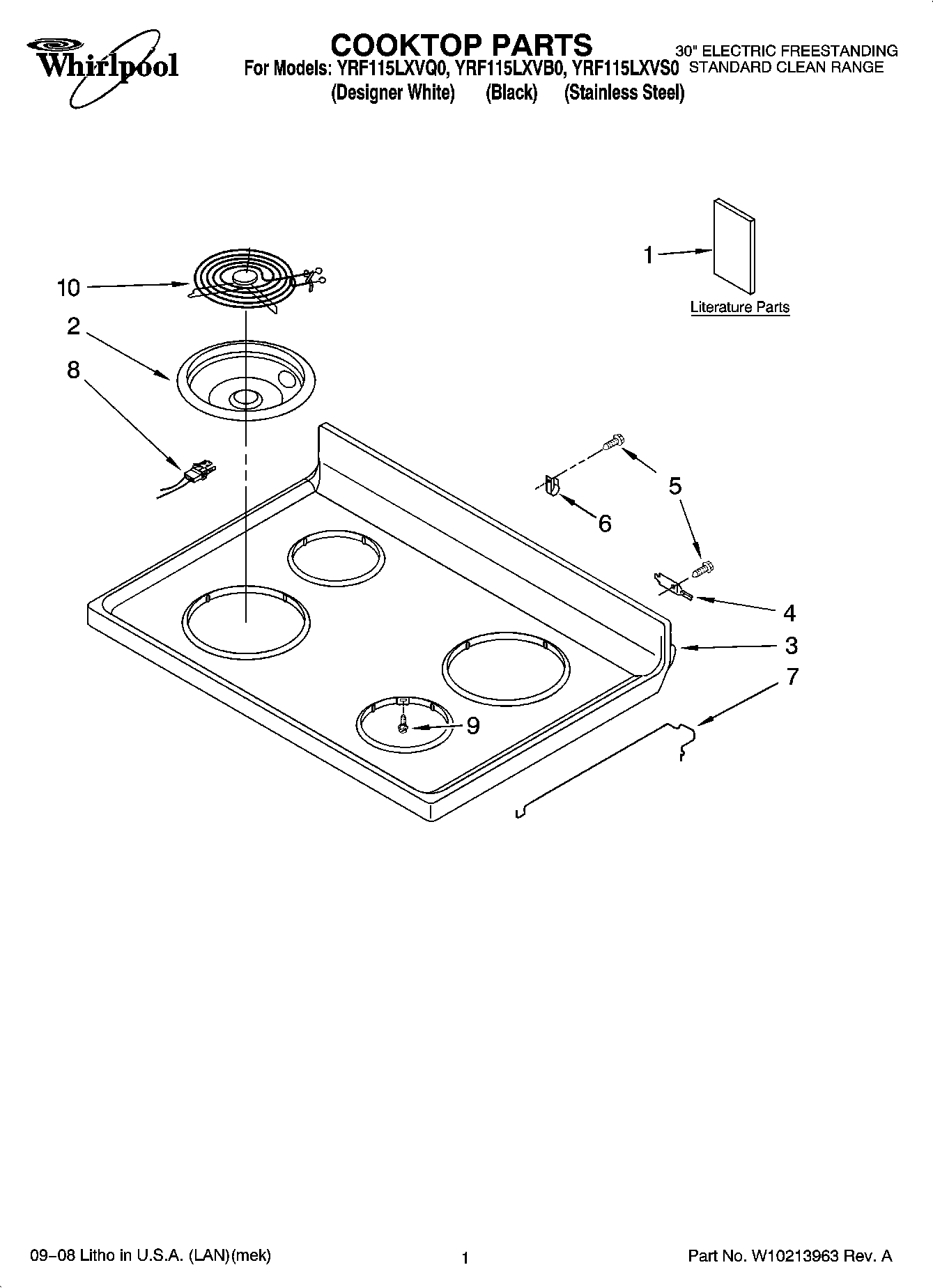

YRF115LXVB0 01 – COOKTOP PARTS
Products
Position
Product
1
Tech Sheet (French)
1
Instructions Installation
1
OWNER S MANUAL (ENGLISH/FRENCH)
1
Anti-Tip Template (English/French)
1
Anti-Tip Template (English/Spanish)
1
Safer Cooking Tips (French)
1
SAFER COOKING TIPS (ENGLISH
1
Tech Sheet (English)
2
WPW10196406 Whirlpool 6" Chrome Drip Bowl
2
DRIP BOWL 8" W/HOLE CHROME
3
8195534 Whirlpool Cooktop
3
8195532 Whirlpool Cooktop Power Switch
4
WP3195060 Whirlpool Cooktop Pin
5
SCREW
6
WP308605 Whirlpool Refrigerator Clamp
7
WP3195812 Whirlpool Cooktop Rod
8
814399 Whirlpool Receptacle Kit
9
WP3196154 Whirlpool Screw Assembly
10
WPW10259865 Whirlpool Range 8" Surface Element
10
WP660532 Whirlpool Oven Surface Element
←
