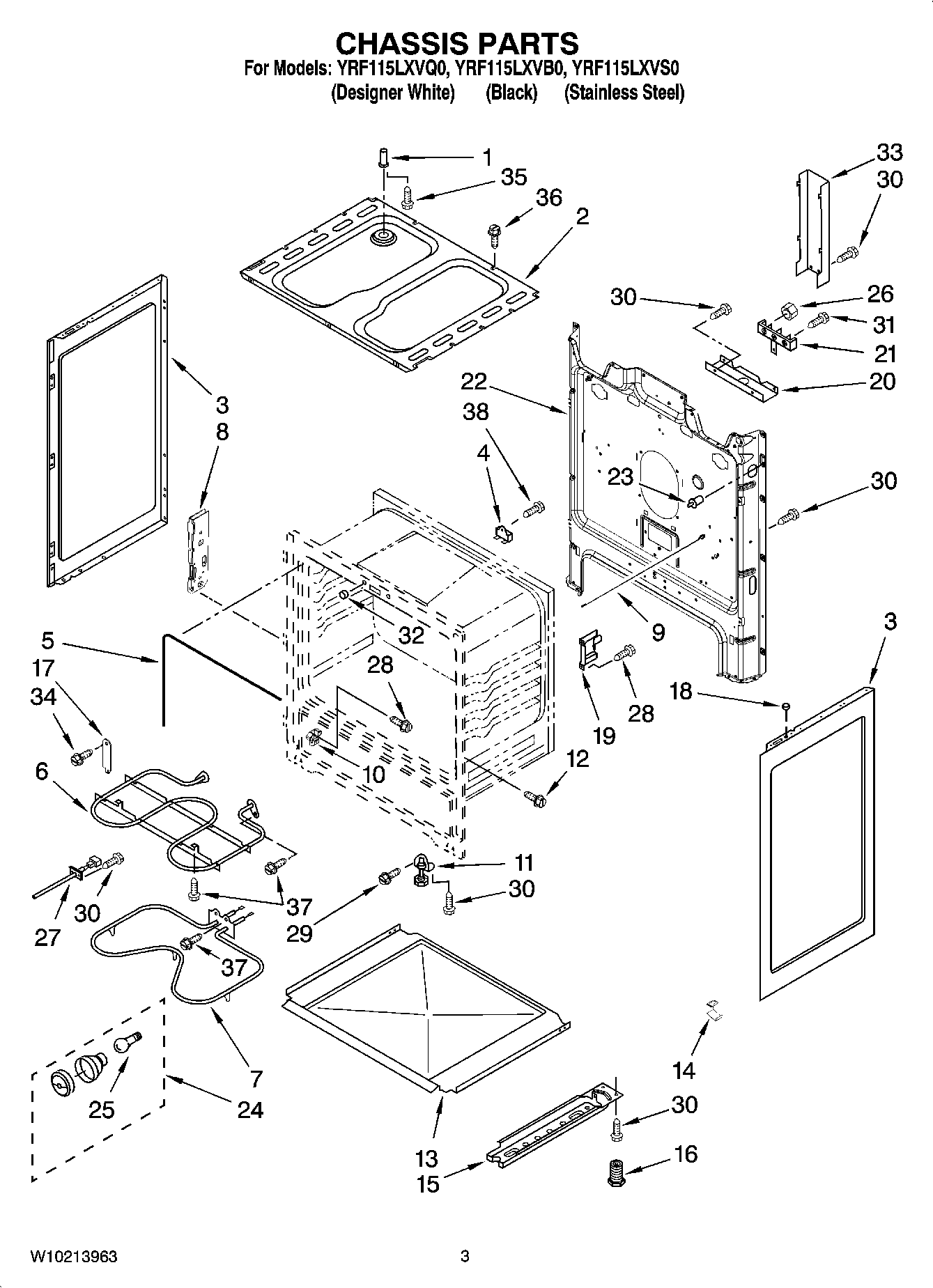

YRF115LXVB0 03 – CHASSIS PARTS
Written by
in
YRF115LXVB0 03 – CHASSIS PARTS
Products
Position
Product
WPW10208653 Whirlpool Insulation
Insulation
W11311894 Whirlpool Insulation
1
9755804 Whirlpool Oven Vent Tube
2
W11699791 Whirlpool Burner Box
3
WPW10575396 Whirlpool Side Panel
3
W11730303 Whirlpool Side Panel
4
WP3196548 Whirlpool Thermal Fuse
5
W11542153 Whirlpool Door Gasket
6
W10856603 Whirlpool Broil Element
7
WPW10308477 Whirlpool Bake Element
8
W10647259 Whirlpool Hinge Receiver
9
9757239 Whirlpool Oven Door Rod
10
WPW10114344 Whirlpool Drawer Glide
11
WP3196037 Whirlpool Leveling Foot
12
WPW10067840 Whirlpool Screw
13
WP8054068 Whirlpool Retainer
14
W10137382 Whirlpool Clip
15
WPW10306546 Whirlpool Base Rail
16
WPW10058460 Whirlpool Appliance Levelling Leg
17
9761517 Whirlpool Oven Clip Assembly
18
238614 Whirlpool Bumper Hinge
19
W10404688 Whirlpool Bracket Support
20
W11728255 Whirlpool Service Bracket
21
WP8203546 Whirlpool Terminal Block
22
Back, Main
23
WP9757262 Whirlpool Light Switch
24
W11594027 Whirlpool Range Oven Light Socket
25
RANGE ONLY 40W 120V APPL BULB
26
Nut
27
WPW10181986 Whirlpool Oven Sensor
28
WP3196557 Whirlpool Screw
29
Screw
30
SCREW
31
WP3400016 Whirlpool Screw Assembly
32
Spacer, Door
33
WPW10326122 Whirlpool Black Cover
34
W10777162 Whirlpool Screw
35
WP3196567 Whirlpool Screw
36
WP3400832 Whirlpool Screw
37
WP3196154 Whirlpool Screw Assembly
38
3196172 Whirlpool Oven Screw
←
