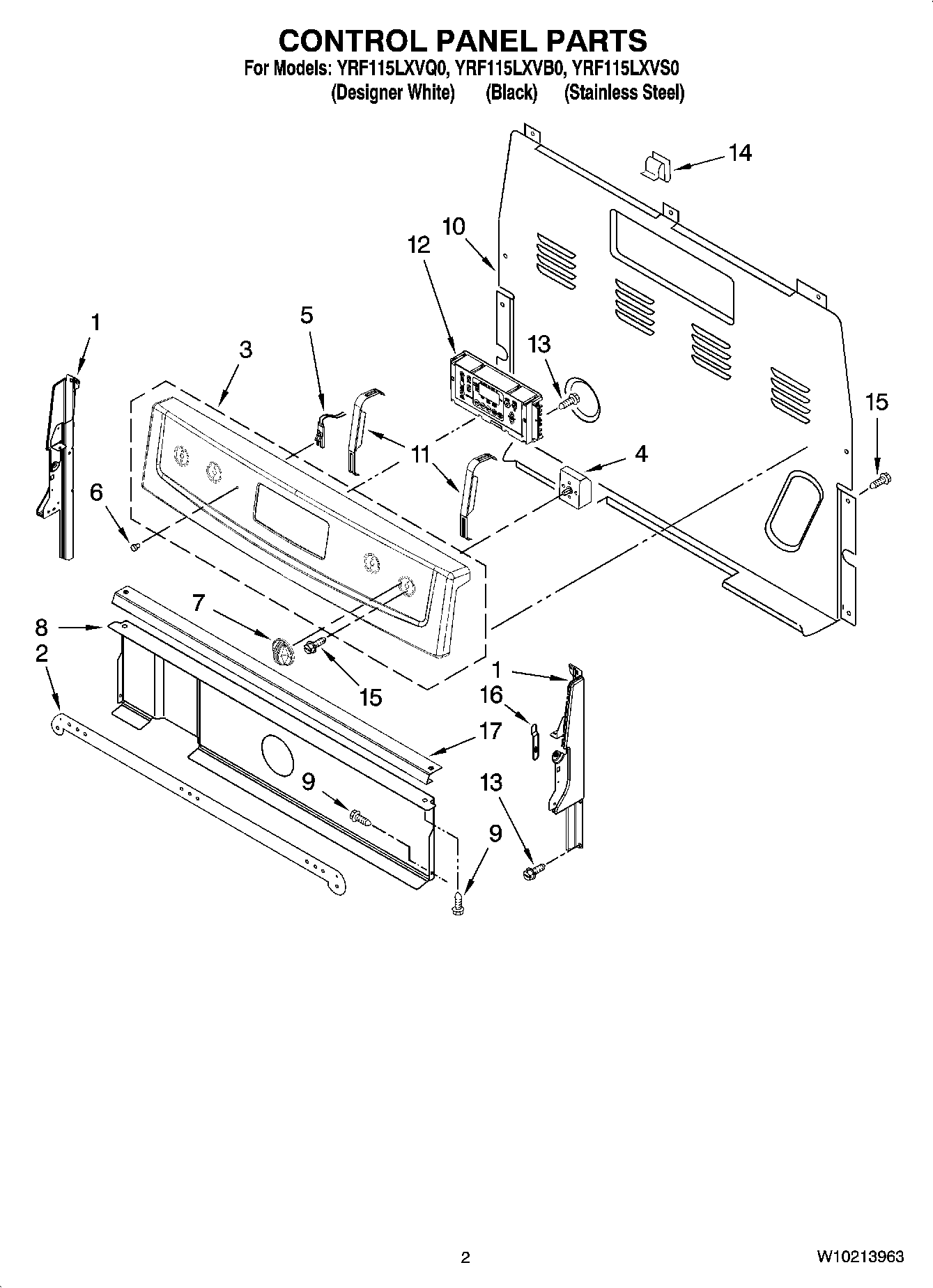

YRF115LXVQ0 02 – CONTROL PANEL PARTS
Written by
in
YRF115LXVQ0 02 – CONTROL PANEL PARTS
Products
Position
Product
1
W11219370 Whirlpool Endcap Panel
1
W11219664 Whirlpool Endcap Panel
1
W11219665 Whirlpool Panel Endcap
1
W11219365 Whirlpool Panel Endcap
2
Guard, Wire
3
Panel, Console (Stainless Steel)
3
Panel, Console (White)
3
Panel, Console (Black)
4
WP3149400 Whirlpool Oven Infinite Switch
4
WP3148952 Whirlpool Oven Infinite Switch
5
WP8523265 Whirlpool Indicator Light
6
WP3196068 Whirlpool Light Lens
7
WP9761964 Whirlpool Knob
7
WP9761962 Whirlpool Range Stove Burner Control Knob
8
Shield, Heat
9
3196166 Whirlpool Screw
10
WP8272473 Whirlpool Rear Cover
11
BRACKET, MOUNTING EOC
12
WPW10271747-includeCORE Whirlpool WPW10271747 Refrigerator Electronic Control Board + Core
12
WPW10476684 Whirlpool Electronic Control Board + Core
13
SCREW
14
WP8273564 Whirlpool Clip
15
WP3400882 Whirlpool Screw
16
3196200 Whirlpool Clip
17
W10525121 Whirlpool Control Bracket
←
