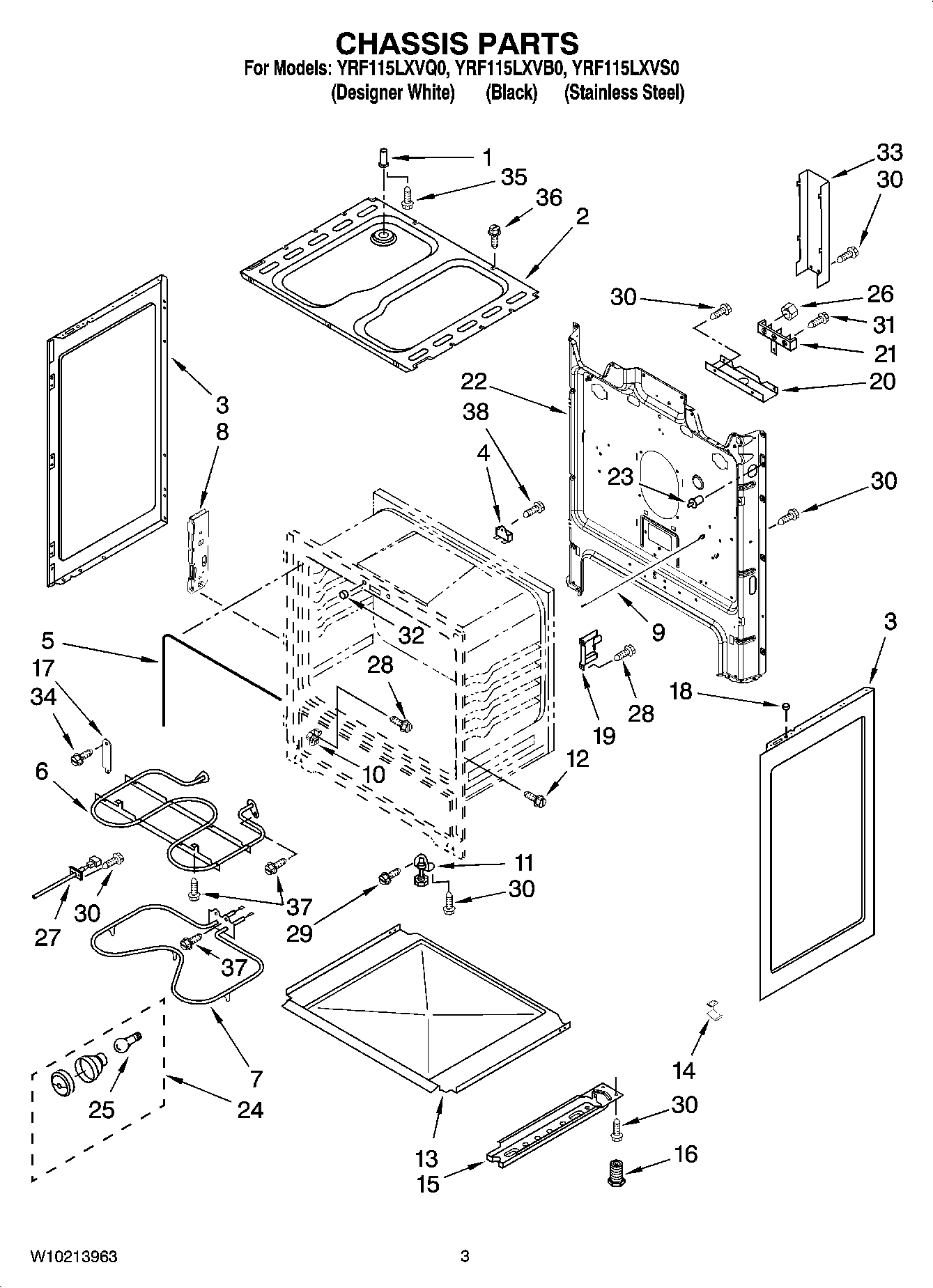

YRF115LXVQ0 03 – CHASSIS PARTS

Products

Position	Product
	WPW10208653 Whirlpool Insulation
	Insulation
	W11311894 Whirlpool Insulation
1	9755804 Whirlpool Oven Vent Tube
2	W11699791 Whirlpool Burner Box
3	WPW10575396 Whirlpool Side Panel
3	W11730303 Whirlpool Side Panel
4	WP3196548 Whirlpool Thermal Fuse
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	WPW10308477 Whirlpool Bake Element
8	W10647259 Whirlpool Hinge Receiver
9	9757239 Whirlpool Oven Door Rod
10	WPW10114344 Whirlpool Drawer Glide
11	WP3196037 Whirlpool Leveling Foot
12	WPW10067840 Whirlpool Screw
13	WP8054068 Whirlpool Retainer
14	W10137382 Whirlpool Clip
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	9761517 Whirlpool Oven Clip Assembly
18	238614 Whirlpool Bumper Hinge
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WP8203546 Whirlpool Terminal Block
22	Back, Main
23	WP9757262 Whirlpool Light Switch
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	Nut
27	WPW10181986 Whirlpool Oven Sensor
28	WP3196557 Whirlpool Screw
29	Screw
30	SCREW
31	WP3400016 Whirlpool Screw Assembly
32	Spacer, Door
33	WPW10326122 Whirlpool Black Cover
34	W10777162 Whirlpool Screw
35	WP3196567 Whirlpool Screw
36	WP3400832 Whirlpool Screw
37	WP3196154 Whirlpool Screw Assembly
38	3196172 Whirlpool Oven Screw
