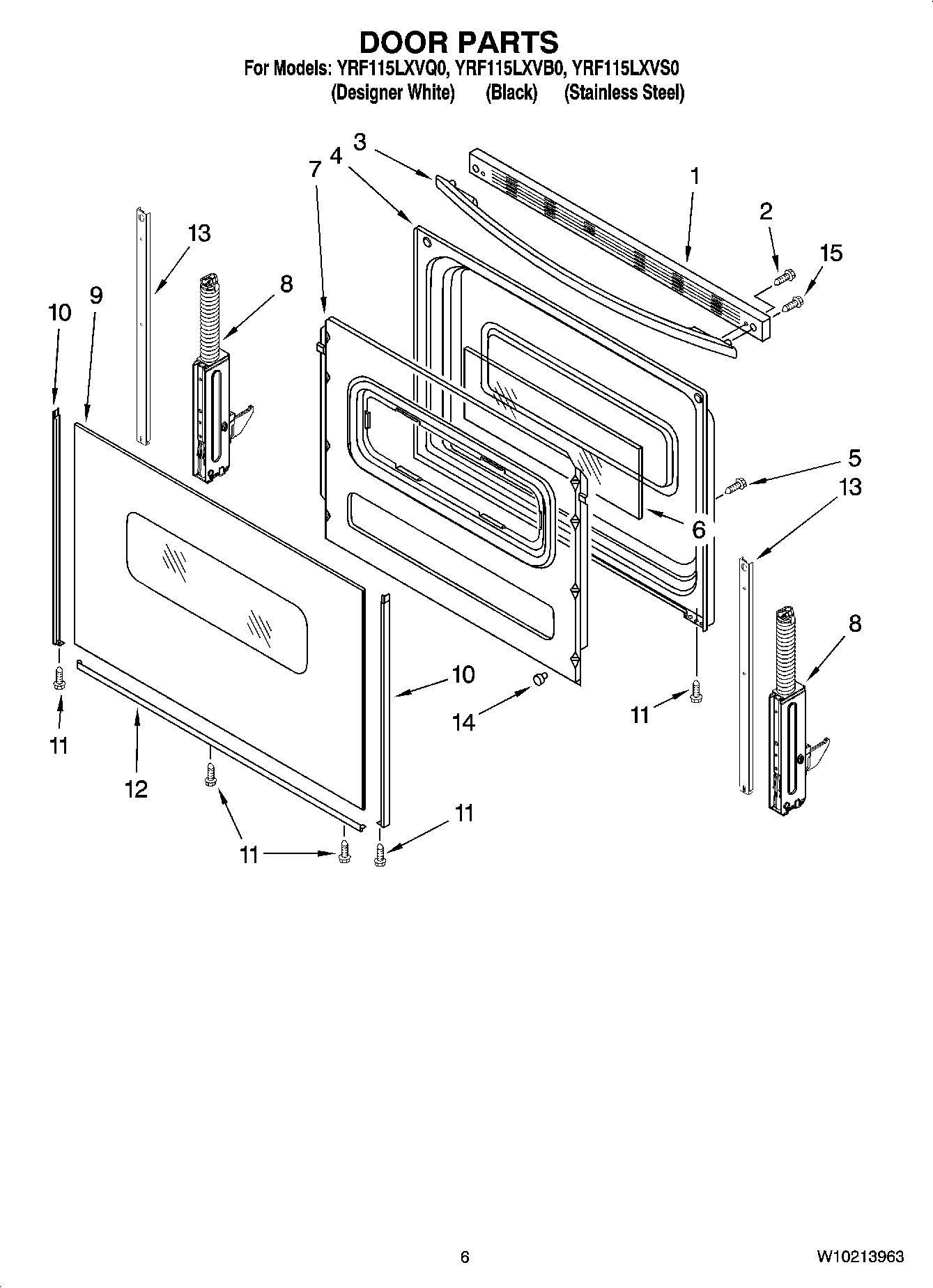

YRF115LXVQ0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL W10083580
	WP3196174 Whirlpool Screw
	W11244557 Whirlpool Screw
	8212471 Whirlpool Oven Paint
	Parts Not Illustrate
	Grease
	WP3196154 Whirlpool Screw Assembly
	WPL 9756350
	WPL 9756779
	WPW10295595 Whirlpool Wire Harness
	W11172424 Whirlpool Wire Harness
	WPL ARI139169A
	WPL ARI139170A
	WPL ARI139171A
	WPL ARI139172A
	WPL ARI139173A
	3184020 Whirlpool Oven Wire
	Clip, Ground Wire
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	FOIL, ALUMINUM OVEN (18“ X 25 )
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	WPW10208653 Whirlpool Insulation
	W11447673 Whirlpool Range Tip Anchor
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
1	TRIM-VENT
1	W10817433 Whirlpool Vent Trim
2	W10817436 Whirlpool Screw
3	WPW10323589 Whirlpool Door Handle
3	W10817434 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	WP8053948 Whirlpool Door Glass
7	W11685635 Whirlpool Retainer
8	W10347465 Whirlpool Door Hinge
9	WPW10118455 Whirlpool Door Glass Assembly
9	WPW10118454 Whirlpool Door Outer Glass White
10	W10761014 Whirlpool Right Door Trim
10	WP8523166 Whirlpool Door Trim
10	8184858 Whirlpool Door Trim
10	WP8523172 Whirlpool Left Door Trim
10	W10761018 Whirlpool Dishwasher Left Door Trim
11	W10491985 Whirlpool Screw
12	WP8523177 Whirlpool Door Trim Assembly
12	WP8523175 Whirlpool Door Trim Assembly
13	W11502236 Whirlpool Door Trim
14	238614 Whirlpool Bumper Hinge
15	W10777162 Whirlpool Screw
