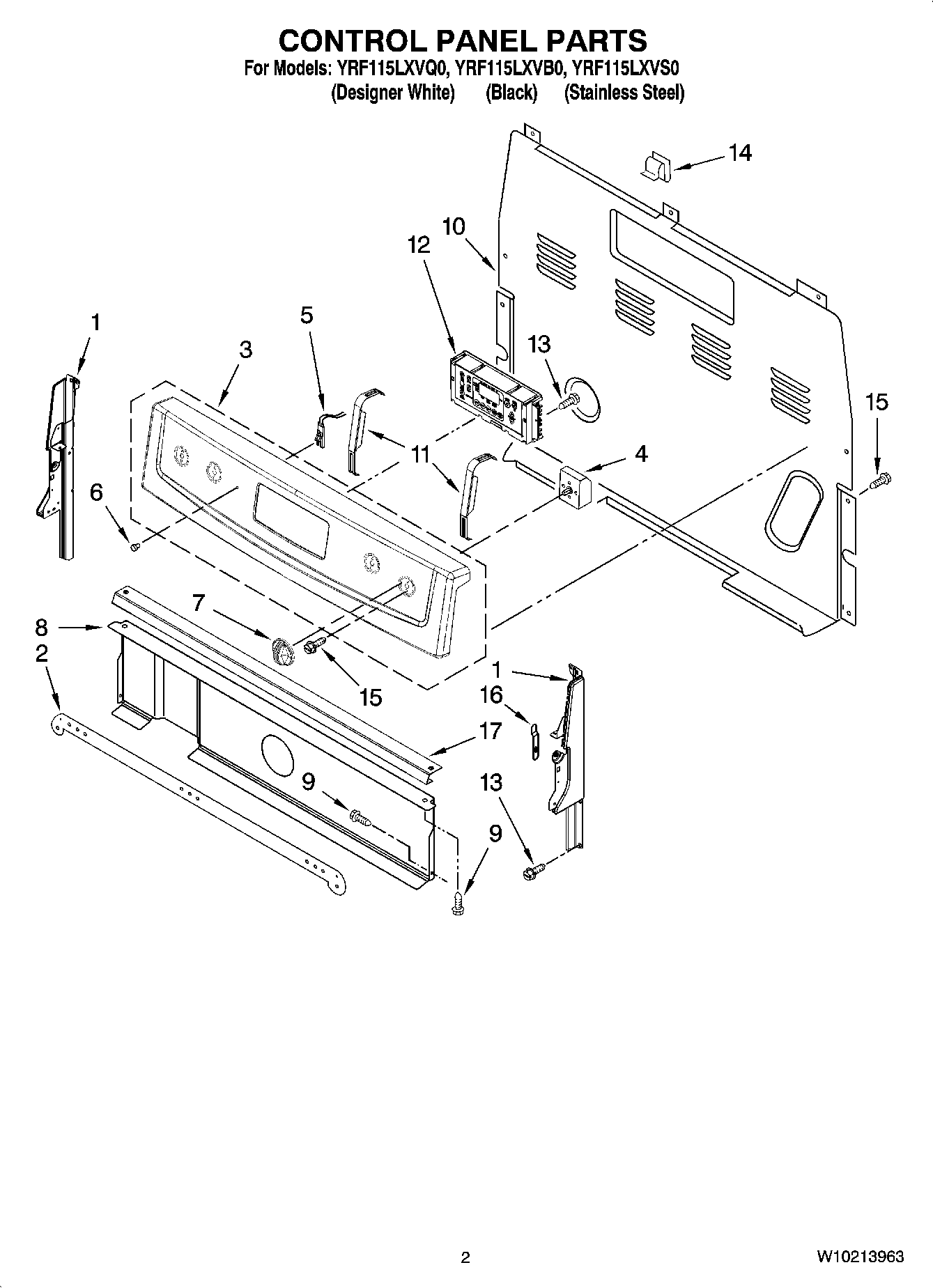

YRF115LXVS0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219370 Whirlpool Endcap Panel
1	W11219664 Whirlpool Endcap Panel
1	W11219665 Whirlpool Panel Endcap
1	W11219365 Whirlpool Panel Endcap
2	Guard, Wire
3	Panel, Console (Stainless Steel)
3	Panel, Console (White)
3	Panel, Console (Black)
4	WP3149400 Whirlpool Oven Infinite Switch
4	WP3148952 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WP9761964 Whirlpool Knob
7	WP9761962 Whirlpool Range Stove Burner Control Knob
8	Shield, Heat
9	3196166 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	BRACKET, MOUNTING EOC
12	WPW10271747-includeCORE Whirlpool WPW10271747 Refrigerator Electronic Control Board + Core
12	WPW10476684 Whirlpool Electronic Control Board + Core
13	SCREW
14	WP8273564 Whirlpool Clip
15	WP3400882 Whirlpool Screw
16	3196200 Whirlpool Clip
17	W10525121 Whirlpool Control Bracket
