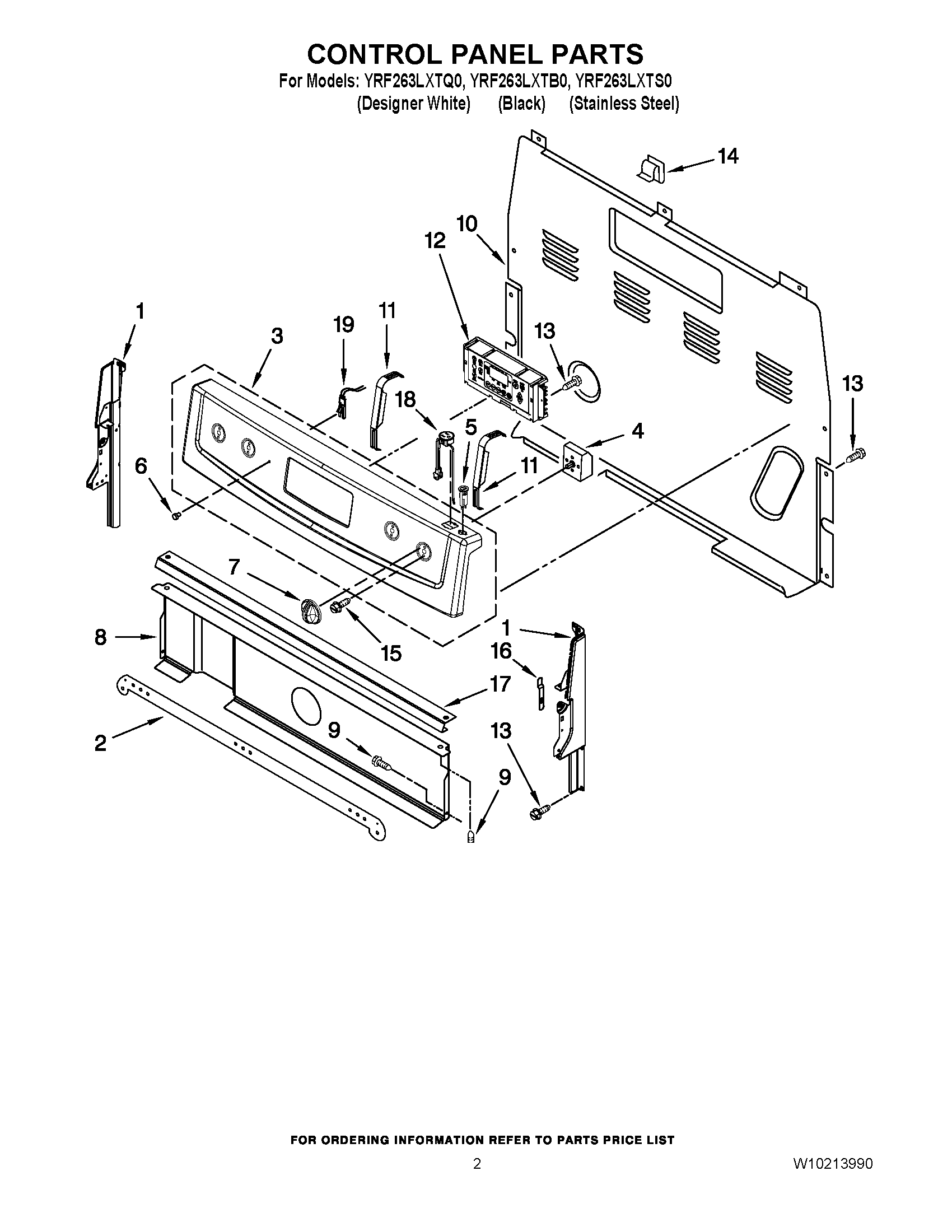

YRF263LXTB0 02 – CONTROL PANEL PARTS
Written by
in
YRF263LXTB0 02 – CONTROL PANEL PARTS
Products
Position
Product
1
W11219370 Whirlpool Endcap Panel
1
W11219365 Whirlpool Panel Endcap
1
W11219665 Whirlpool Panel Endcap
1
W11219664 Whirlpool Endcap Panel
2
Guard, Wire
3
Panel, Console (Black)
3
Panel, Console (White)
3
Panel, Console (Stainless Steel)
4
WP3148952 Whirlpool Oven Infinite Switch
4
WP3149400 Whirlpool Oven Infinite Switch
5
WP9757601 Whirlpool Breaker
6
WP3196068 Whirlpool Light Lens
7
WP9761964 Whirlpool Knob
7
WP9761962 Whirlpool Range Stove Burner Control Knob
8
Shield, Heat
9
3196166 Whirlpool Screw
10
WP8272473 Whirlpool Rear Cover
11
BRACKET, MOUNTING EOC
12
WPW10476691 Whirlpool Power Board
13
SCREW
14
WP8273564 Whirlpool Clip
15
WP3400882 Whirlpool Screw
16
3196200 Whirlpool Clip
17
W10525121 Whirlpool Control Bracket
18
W10849725 Whirlpool Electrical Outlet
18
W10861164 Whirlpool Electrical Outlet
19
WP8523265 Whirlpool Indicator Light
←
